20deg 40deg 60deg 90deg Optic Ledil Lens Outdoor Indoor Working Sports Flood Light 320W 600W 960W LED Floodlight 140lm/W LED Outdoor Stadium Floodlights

3000K 4000K 6500K IP66 Waterproof 320w 600W 960W High Power LED Flood Light with the world top optic lens brand LEDIL luminous flux 44800-134400 lumen output IES curve files for lenses with 20 degree and 40 degree and 60 degree angles.


high power LED high mast flood light 320watt to 960watt 180 ~ 528VAC 134,400lumen IP66 IK08 up to 140lm/w with PLC dimmer control system.
Main Features:
1. With aesthetic appearance and perfect thermal management design which looks simple and stylish; Delicate and extremely slim design.
2. Excellent aluminum AL6063 with the surface treatment of weatherability, offers good anti-corrosion and anti-rust functions for bad outdoor environment;
3. Using Meanwell/Sosen/Ph international brand LED driver with wide voltage 100-277VAC or 277-480VAC or 20V 24V 32V;
4. Combined with PLC dimmer/ 0-10V/ DALI dimmable versions , sensor fuctions and RGB/RGBW color;
5. Strict shocking testing and waterproof testing ensures safety in all situations;
6. LUMILEDs, OSRAM or Cree LED chip SMD5050 LED,160-220lm/W LEDs, lamp efficacy can be up to 140lm/W;
7. Various beam angles in optional (20°/40°/ 60°/ 90°/ asymmetric 40°/45°);
8. 270°large angle stepless adjustment;
9. CE, RoHS, UL, ENEC, ETL, PSE standard compliant.
10. No UV and near-IR radiation in the light beam.
11. Alternative to MHI luminaires and HPI luminaires directly.
12. 3 years warranty / 5 years warranty / 7 years warranty in optional.
13. Support OEM and ODM service.



MINIMUM 70-80% POWER SAVING
1500w & 5000w metal halides can be swapped for 320w & 960w Highpower LEDs. That's 65-80% power saving instantly, with up to 80% realised within 1-2 years.

5 or 7 YEAR WARRANTY
Built with LUMILEDs or OSRAM SMD5050 LEDs with a lifespan of 100,000 hours, quality is everything. That's why we back our products with a 5-7 Year Warranty

LIGHTWEIGHT AND PERFECT THERMAL MANAGEMENT DESIGN
The High mast LED Series are constructed using extruded aluminium AL6063 making them the lightest LED flood lights in the world.

ONE-FOR-ONE REPLACEMENT
High mast LED are designed as direct replacement for metal halides. With less power usage and a lighter body, no electrical or pole upgrades are required.

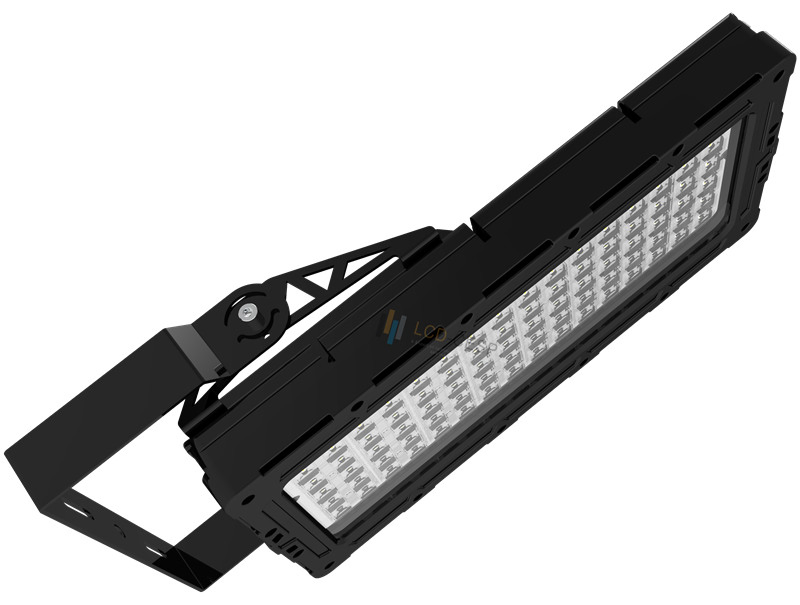

960W High Mast floodlight
Wattage: 960w
Voltage: 100-277VAC
Lumen lux: 134,400lm
Efficiency: 140lm/w
Replace: 5000W MHL
IP Rating: IP66
Application: High Mast
Sea port application


Golf play ground lighting solution



Stadium lighting solution


Technical:

Product cut sheet


Installation:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.

Product dimension (mm)


Product packaging



Model No.                 Power(W)      Lumens(lm)         Color temperature               Input Voltage    Current    Weight(kg)    Dimensions (mm)

LCD-LYEGM-125        120W            18000             3000k / 4000k / 6500K           85 ~ 265VAC      0.12A        3.20               310*116*191
LCD-LYEGM-245
