CE RoHS SAA TUV Marine Flood Light 6500K 140lm/W 80W Outdoor LED Deck Lights Universal Used Aluminum Die-Cast Floodlight 12V 24V 32V IP66 Optic 8deg

Outdoor Marine Aluminum Alloy housing dimmable 0-10V or PLC dimmer control water-proof IP66
80watt 100watt 150watt 200watt 300watt LED Flood Light 100-277V 50/60Hz or 18V-20V-24V-32VDC
Dimmable also for DALI or Triac dimmer with beam angle 4degree/8dgree/15degree/30degree... IK08
Fishing boat or deck lighting with Cree LUMILEDs OSRAM SMD3030/5050 LEDs chip LED Marine Flood Light
Pure Aluminum alloy forming LED spotlight 80W 100W 150W 200W 250W 300W for outdoor marine Security lighting with 5 years warranty


Narrow beam angle 7-8 degree searchlight Flat marine grade 80W 100W 150W LUMILEDs chip SMD505 IP66 IP67 LED Flood Light

Symmetric beam 7-8 degree + oval beam angle Area searchlight Flat IP67 LED Flood Light 80W 100W 150W up to 140-150lm/W


About LCD FA Series

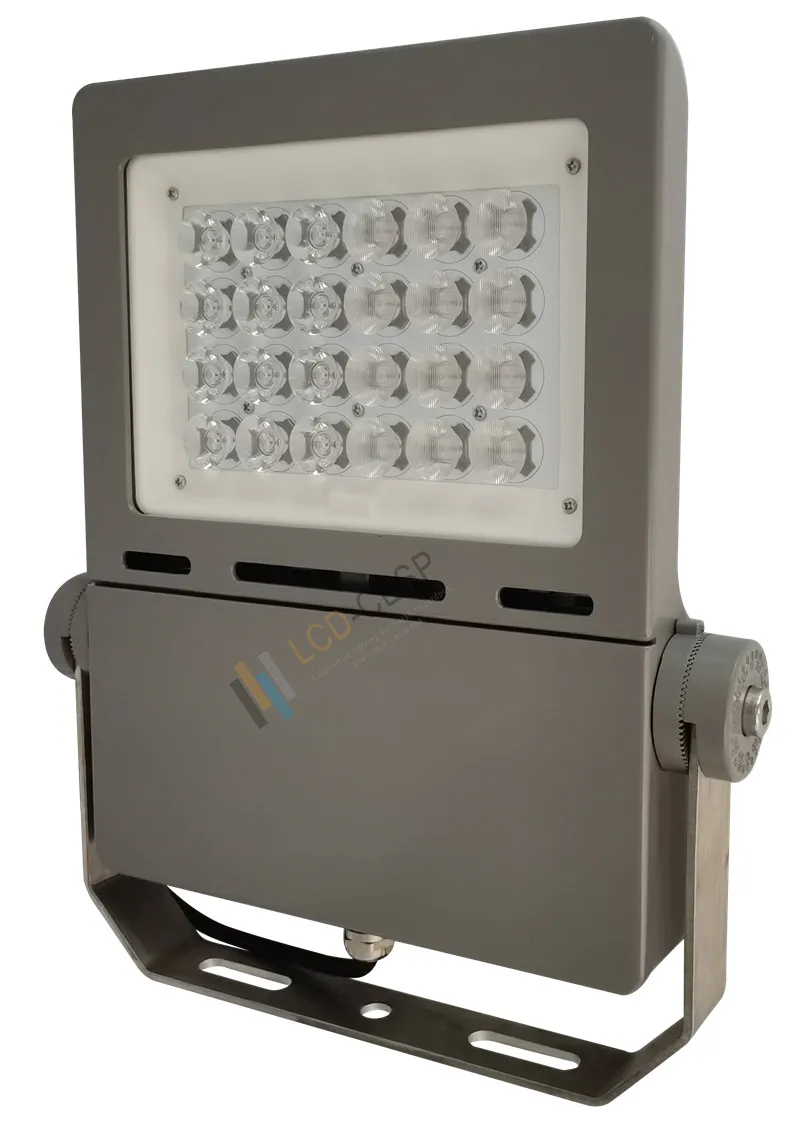

LCD LED Floodlite FA Series, a professional, powerful, energy saving replacement for high intensity discharge lamps or Halogen lamp. With a compact and modern design, Ph® SMD 5050 LED technology offers high brightness, a high lumen maintenance factor with MEANWELL driver and built in 3-4kV surge suppressor. We have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.



Strong housing made of white,grey or black die-cast aluminum, featuring high heat dissipation and superior aesthetics. Corrosion resistant with longer lifetime. Tempered glass, much stronger than regular glass, reduces the risk of injury caused by jagged glass shards. Impact resistant IK08 grade and protection rating IP66 IP67. Advanced heat sink design ensures LED does not exceed temperature ratings across all specifed ambient conditions. Universal voltage capacity 100-277V 50/60Hz or 12-32VDC.



Key Features:
• High luminous efficacy using LUMILEDs SMD3030 or Bridgelux SMD3030 LED chips
• Super slim rugged design (maximum depth 60mm)

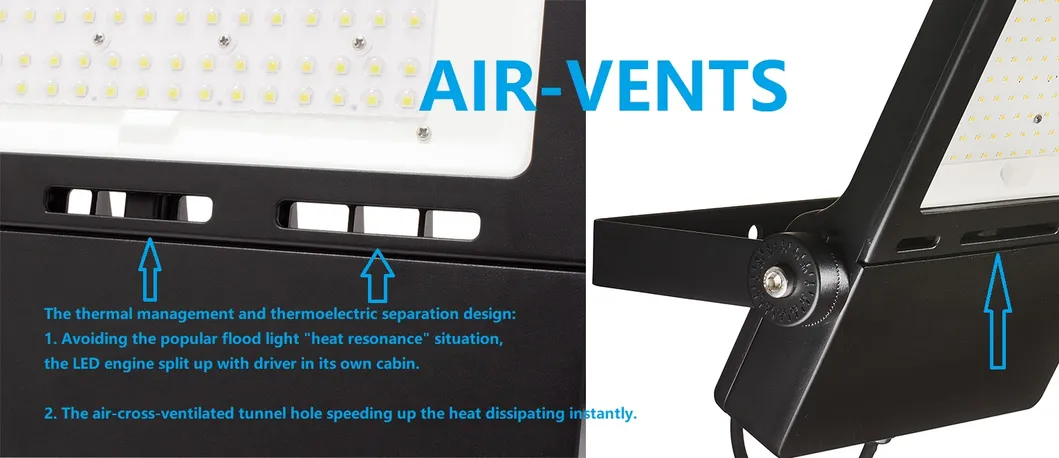

• Custom designed case for effective heat dissipation
• In house Meanwell or Ph LED driver technology
• Impact resistant tempered glass
• Bracket designed with +/-160° angle with 5° interval locking system

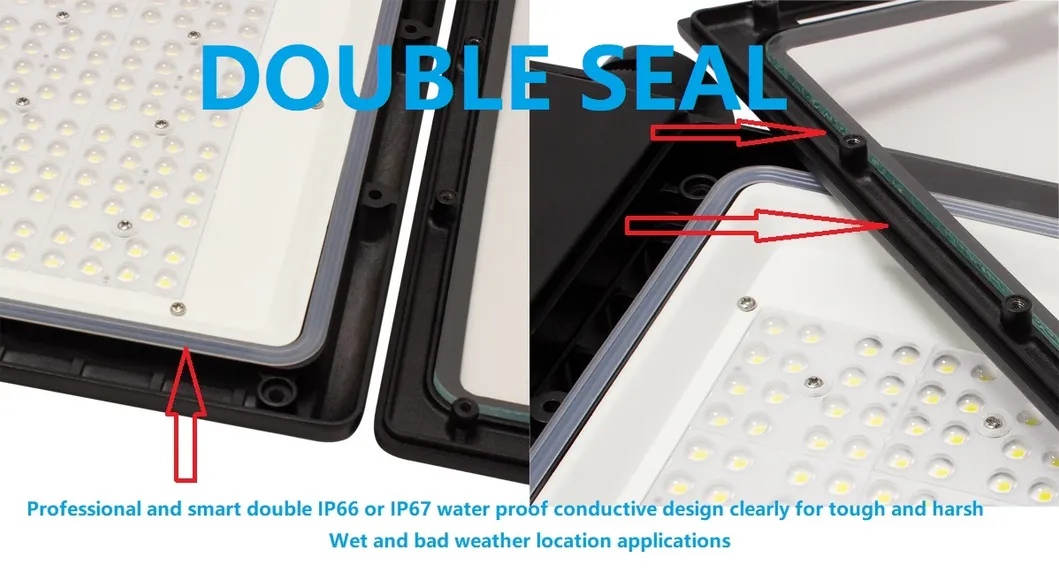

• Designed to eliminate water ingress
• Optional Dusk to Dawn available
• IP66,IP67 or IP68 rating
• 5-7 years warranty





Ideal for applications

such as
1. FISH PROCESSING LIGHTING, Maritime Applications, Crabbing boat, Seiners boat, Trawler boat fishing lighting



2. Or lansdcapes, accents, security and general wide area lighting for commercial and residendial use.

Details

Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.

Other options available
Optional precabling
Other RAL colours available on request

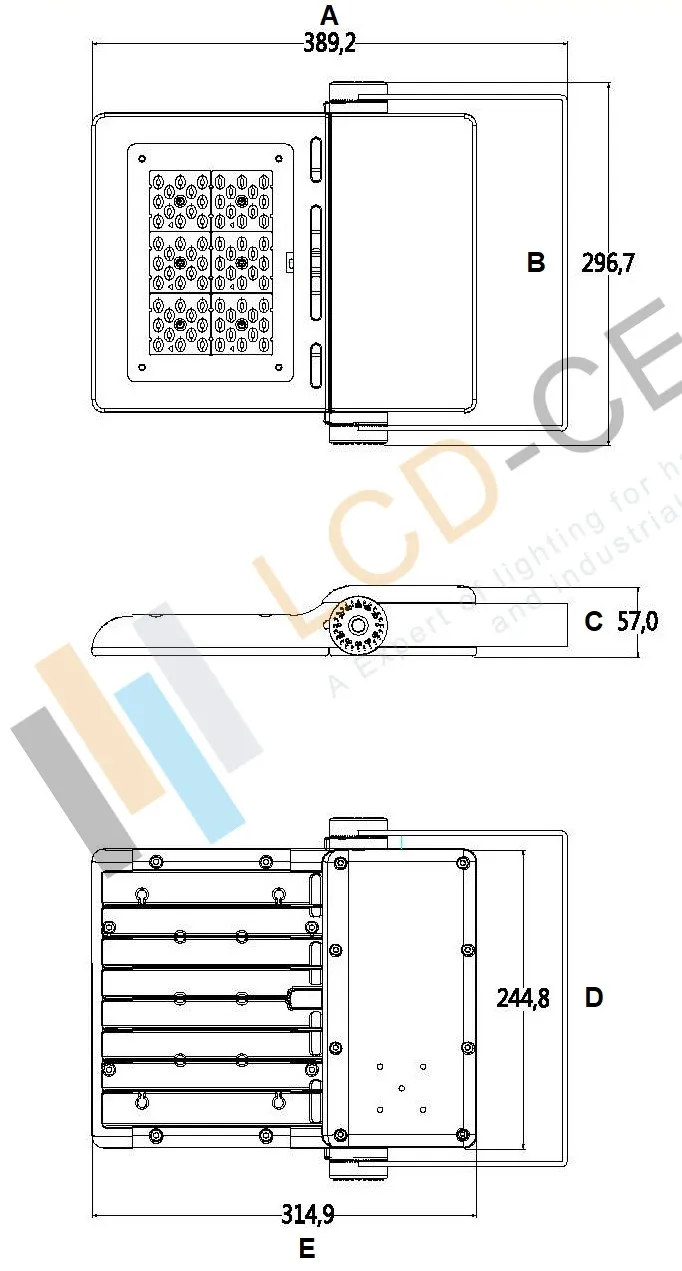

Product DIMENSIONS
AxBxC (mm ):



Weight (kg ):

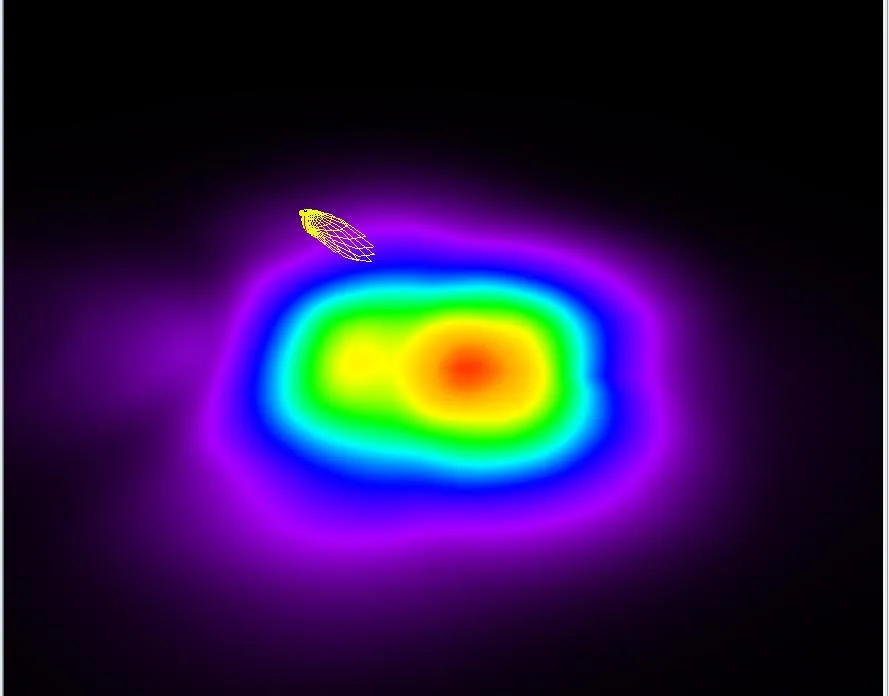

Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM

This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Copper free outdoor Pure Aluminum housing perfect thermal management Meanwell & Ph dimmable driver 0-10V water-proof IP65
250 Watt LED Flood Light  100-277VAC 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 36250lm IK08
High way road or area lighting with Cree LUMILEDs OSRAM SMD3030 or SMD5050 LEDs chip for LED street Light or working site light
High tech pure Aluminum extruded LED spotlight 250W for outdoor Security lighting with 5-7 years warranty



This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.

Feature

1. A simple, durable, reliable and efficient LED floodlight with Pure Aluminum forming tech. extrude the heat-sink housing for perfect thermal management than the die-casting's housing.
2. Low lifetime-cost Reduce power consumption and free maintenance
3. Market leading size/weight/output ratio for high performance true symmetric or asymmetric luminaire with low aesthetic impact.

Product Specification review

A simple, durable, reliable and great thermal management and efficient LED floodlight

Application review

- Low area & job site lighting
- Building surrounds
- Façade lighting

- Car parking lighting

- Road & billboard lighting





Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.



Product dimension review

Mounting options
Three mounting options to cover all low area lighting applications.

Wall or ceiliing mounted --Area & site

Surface mounted--Facade

Mast & Post--Road & Car Parking



Installation review

HYLY features a super lightweight design and is pre-wired for effortless installation.

Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.

FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.

Pre-wired. Quick and easy installation with no wiring.



Low Voltage 240W DC12V 36250 Lumen Outdoor LED Flood Lights



led outdoor flood light bulbs 10W DC12V 36250lm IP66 Aluminum die cast ADC12



Slim Floodlight specifications:
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body
-- Installation with bracket on surface and floor.
-- Mains voltage: 220-240V / 50-60Hz.
-- Clever thermal design with internal cooling pins.
-- Narrow, medium and wide beam angles available.
-- Led colour temperatures optionally 3000K, 4000K and 6000K.
-- Suitable for illumination up to 8 meter height.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 120lm/W efficiency (4000K - 800mA)
-- High colour consistency: <3 SDCM

Application:

Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.



Products features

without compromising light quality or a sense of security for those in the area.





Power saving and free maintaining





Floodlight configurations





Mounting





Optical distributions

Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40







Dimension





Products Specification





Model No.           Power(W)      Lumens(lm)      Color temperature              Input Voltage    Current    Weight(kg)    Dimensions (mm)

LCD-LYRL-013         10W           1300             3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        1.70               179*145*32
LCD-LYRL-023         20W           2600             3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        3.33               189*148*32
LCD-LYRL-033         30W           3900             3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        3.80               261*194*47
LCD-LYRL-053         50W           6500             3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        4. 65              350*265*69
LCD-LYRL-073         70W           9100             3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        8.20               350*265*69
LCD-LYRL-103        100W         13000            3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        1.70               350*265*65
LCD-LYRL-123        120W         15600            3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        3.33               350*265*65
LCD-LYRL-153        150W         19500            3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        3.80               397*308*65
LCD-LYRL-203        200W         26000            3000k / 4000k / 6500K         85 ~ 265VAC    0.12A        4. 65              441*347*65
LCD-LYRL-223        220W         28600            3000k / 4000k / 6500K         85 ~ 265VAC    0.12A         8.20              500*385*65

LCD-CESP LYRL series LED Architectural Floodlights feature an architecturally stylish design that will complement your application's visual landscape. Available in eight sizes, LYRL series offers outstanding photometric performance, significant savings over HID, and is available with the latest in energy saving control options. Precision optics, shields, color filters, and field tunable white options allow you to customize your lighting solution and paint with light.By delivering precision, uniform illumination to the target area, you can achieve optimal light levels using fewer floodlights compared to HID technology. Nine floodlighting optical distributions deliver the right pattern for a variety of applications. It also is designed to meet the requirements of a wide range of floodlighting applications including all the necessary control features and interfaces to make it future-proof and even more efficient. LCD-LYRL-FLOOD lets you choose the exact number of lumens you need for your application. Incorporating extremely high-efficiency optics and state-of-the-art LEDs SMD3030 or SMD5050, it is a highly competitive solution offering an outstanding lux/$usd ratio and energy savings of up to 65-75% (without the use of additional controls). The wide choice of optics ensures maximum application coverage. LCD-LYRL-FLOOD is easy to install − you simply plug it in and select the best option for your needs. Perfect for replacing conventional technology and enabling intelligent lighting control while retaining the same electrical installation and poles.

Benefits
• Designed for different retrofit, perfect for replacing conventional technology retaining the same electrical installation and poles.
• Offering a large variety of lighting needs from recreational sport, areas and even road and steet , by providing a variety of optics used in the range.
• Fast payback and low Total Cost of Ownership with energy savings and minimum maintenance costs
• Multiple control options ensure increased efficiency with intelligent lighting (DALI,motion sensor,photocell...)

Features
• With unicase stretch forming High pure copper free Aluminum #1070 housing for conductivity 230W(m.K) about 2.5 times of die-cast aluminum alloy's 97W(m.K) to ensure a perfect and high-efficiency thermal management and a long lifespan for that product and excellent operating temperature -40°C ~ 50°C.
 • A high quality clear and clean housing surface for perfect corrosion resistant powder coating and easier for care and maintenance.
• Incredible dust deposition prevention function.
• Attractive edge-to-edge glass front and curve unicase for a modern aesthetic.
• Architectural styling makes the perfect complement to any exterior.
• Eight low profile housing sizes offer 50-1000W HID-equivalent performance.
• A full range of optical distributions with anti-UV PC lenses options to further customize your design and provide glare control.
• Static whites also available in warm, cool and neutral.
• Energy saving LED performance with efficacies up to 160 lumens per watt, providing a 65-80% energy savings over 1000W HID.The light transmittance of lens up to 98%.Type II,III,IV,V,120x50°,145x100° optional. Uniform lighting distribution apply to different lighting projects.
• Control options available for additional energy savings.
• Innovative thermal management allows for long system life of up to 100,000+ hours (L70).
• Slipfitter mount available includes UL-recognized splice compartment,eliminating the need for a secondary junction box.
• Designed for differents retrofit up to 1000 W HID
• Wide range of lumen packages between 1300 lm and 40klm (system)
• Easy replacement of gear and PCB, no tooling required and easy assembly easy installation and easy maintenance.
• Wide range of control options, such as DALI, 1-10 V,Photocell,motion sensor ...Dimming and smart lighting system available upon request.
• LEDs and optics deliver highest level of efficiency (up to 160 lm/W).
• 100% components: SMD3030 chip or SMD5050 chip and driver. Adopt SMD 5050 LED source. Stable performance,low light failure and NO dead lights.
• Wide choice of optics to suit all applications - Sport and Areas lighting - Asymmetrical,Road and Symmetrical beams with or without louver (optional).New Asymmetrical Optic for Sport lighting (Tennis...)
• Optimized architecture for 4 kV surge (optional 10 kV).
• With excellent housing design reaching IP65 or IP66 and IK08-IK09 protection. ETL DLC CE ROHS IP66 IK08 LM80 approved.
• Long lifetime : 100 Khrs (L80B10 at T a 25°C) for 5 years warranty.and green product,no UV,IR radiation or mercury pollution.Passed IEC62471.

Technical Information
Lumen Output: Approximately 1,300 to 33,600 Lumens
Wattage: 10 to 240W
Efficacy: 120 to 160 LPW
Luminaire Useful Life: 100,000+ hours (L70) at 25°C
Optics: Spot, Rectangular Spot, Asymmetric 30° Flood,Rectangular Narrow Flood, Rectangular Medium Flood
Shielding and Lenses:  Beam angle 30° ,60° ,90° ,110°  TYPEI II III IV V etc.
Color Temperature: Static White: 3000K, 4000K, 6500K
Controls Solutions: DALIDimmer, Motion Response, DALIDimmer with Motion Response Override
Mounting: Bracket and Slipfitter, Yoke Mount on requests.
Mounting Accessories: Wall Bracket, Stanchion Tenon, Pole Top Adaptors
Vandal Accessories: Wire Guard, Stone Guard
Finish: Black,Optional and Special finishes also available
IP Rating: IP65 or IP66 rated luminaire (optical and electrical assemblies)
Housing Material: Aluminum #1070

Application
• Airports, Car parking a lot
• Harbors,transportation facilities
• Large recreational sports facilities
• Industrial areas
• Roundabouts and motorway junctions
