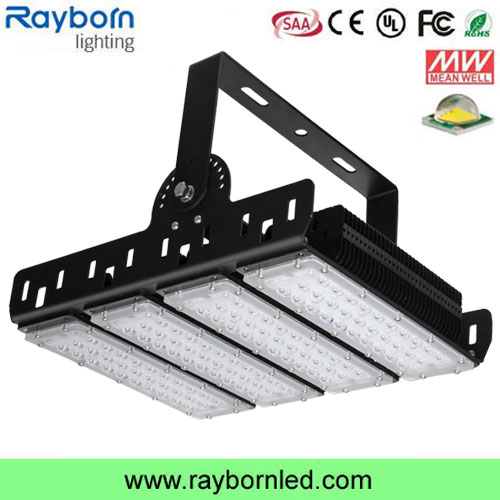

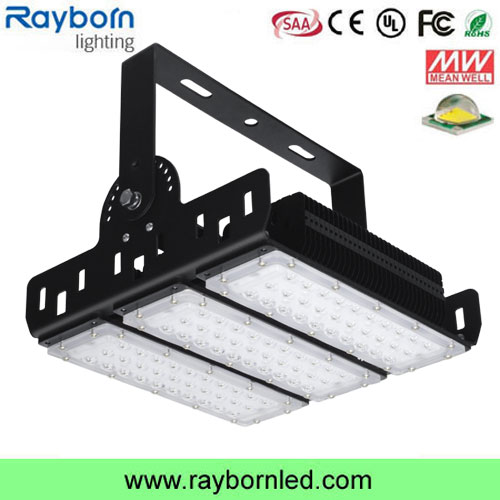

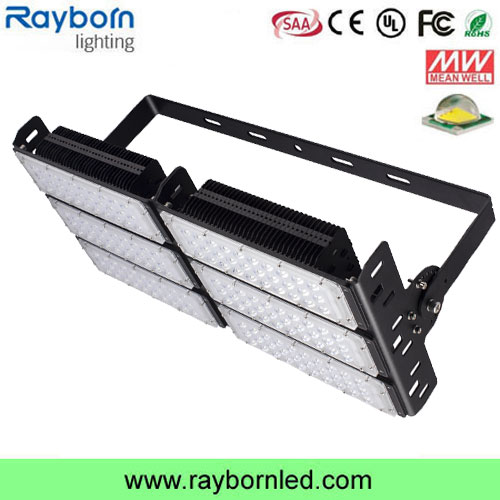

Hot Selling High Lumen LED Flood Light Floodlight for Outdoor Indoor Tennis Basketball Court Parking Lot Garage ( RB -FLL-200WSD)
Hot Selling High Lumen LED Flood Light Floodlight for Outdoor Indoor Tennis Basketball Court Parking Lot Garage(RB-FLL-200WSD)Approved by EMC,CE,LVD,Rosh,SAA,EMCC-tik certifications.Any questions please feel free or need more information, please do not hesitate to contact me.SpecificationPower: 200w......
Send Inquiry
Product Description
Hot Selling High Lumen LED Flood Light Floodlight for Outdoor Indoor Tennis Basketball Court Parking Lot Garage(RB-FLL-200WSD)
Approved by EMC,CE,LVD,Rosh,SAA,EMCC-tik certifications.
Any questions please feel free or need more information, please do not hesitate to contact me.
Specification
Power: 200w
Luminious Effencicy :120-130 Lm/W
Luminious Flux: 22000lm
CRI(Ra)≥ 80
Power Factor ≥95%
Power Effencicy ≥90%
Input Voltage : AC100-277V
Beam Angle :60/90/60*150degrees
LED Source : 3030
Net Weight: 6.5KG
Life Span :≥ 50000 hours( led chip)
Warranty : 5 years (except broken)
Color Temperature: Warm White 3000K~3500K Nature White 4000K~4500K Pure White 5000K~5500K
Cold White 6000K~6500K
200w Waterproof LED Flood Lighting Competitive Advantage:
1. CE & RoHS &TUV IP65 approved, Quality Guaranteed
2. 140lm/w 3030 chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50,000 hours lifespan

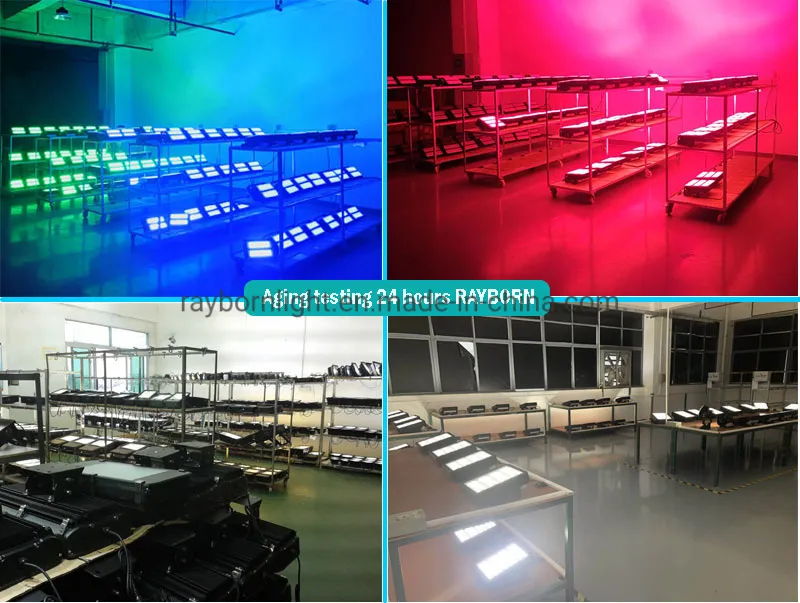

Strict tests of led flood lights:
All of our led flood lights must go through many strict tests before shipping, such as current and function test, temperature test, earth connect test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.

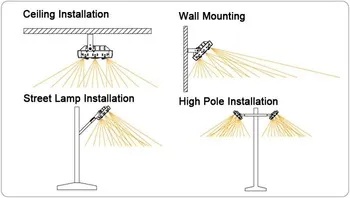

Installation information of led flood light:
1. Check all the parts and accessories of LED flood lights;
2. Must cut off the power supply before installation;
3. Make sure LED flood light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power.
5. When the flood lamp is working, it must be kept vertical downward.
Applications of led flood light:
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Varies services can be provided to you
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM or ODM service is welcome.
3. Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
4. For all your inquires about us or our products, we will reply you in details within 24 hours.
5. Convenient and smooth communication.
6. Detailed and professional specifications and guidances of products.
7. Your requirements and complaints are highly respected.
8. Lighting solutions by professional technician.
9. Fast &Cheap Delivery.
10. Free Light study.
11. Various Certificates.
12. Product Update.
Trade terms
1. Payment: T/T, L/C and paypal are available.
2. Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3. Package: 1pcs-carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. Discounts are offered based on order quantities.
Our service
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private information.
Trade terms
1. Payment: T/T, L/C and paypal are available.
2. Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3. Package: 1pcs-carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. MOQ:10 pcs
7. Discounts are offered based on order quantities.
Packaging of LED flood lights
Shipping of flood LED lights: By sea,air,express (DHL,FedEX,UPS,TNT etc.)
1. Big quantity advised to be shipped by sea.
2. Samples advised to be shipped by express.
3. Small quantity advised to be shipped by air.
After-sales service
1. We offer 3-5 years warranty base on different price and products.
2. Any quality issue, we will replace for free within guarantee period.
3. Any accessories, we always support our customers.
Warranty and Warranty terms
We offer five-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.

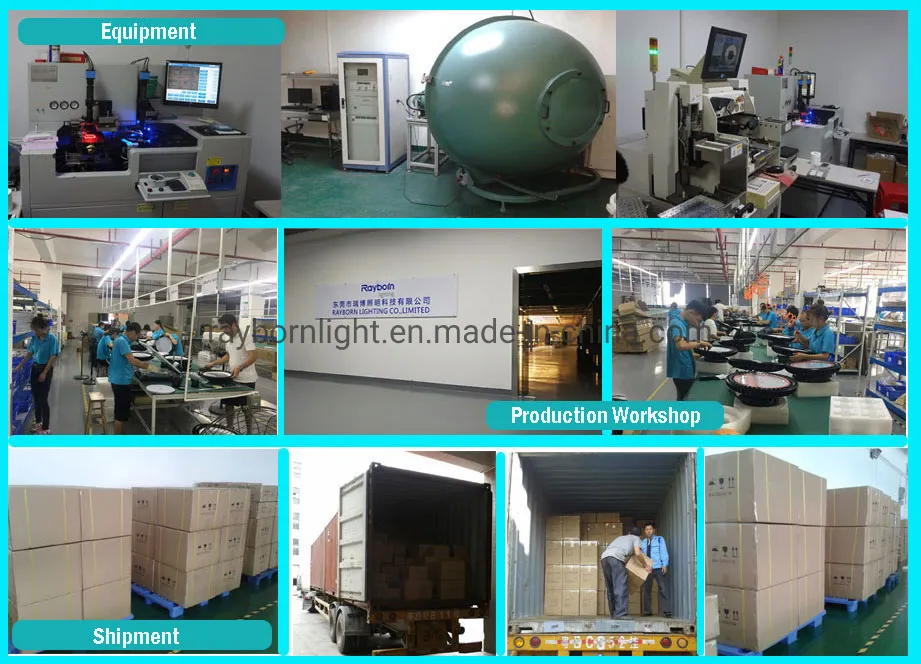

Company Information
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ
Q1. What is the main business of Rayborn Lighting?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.

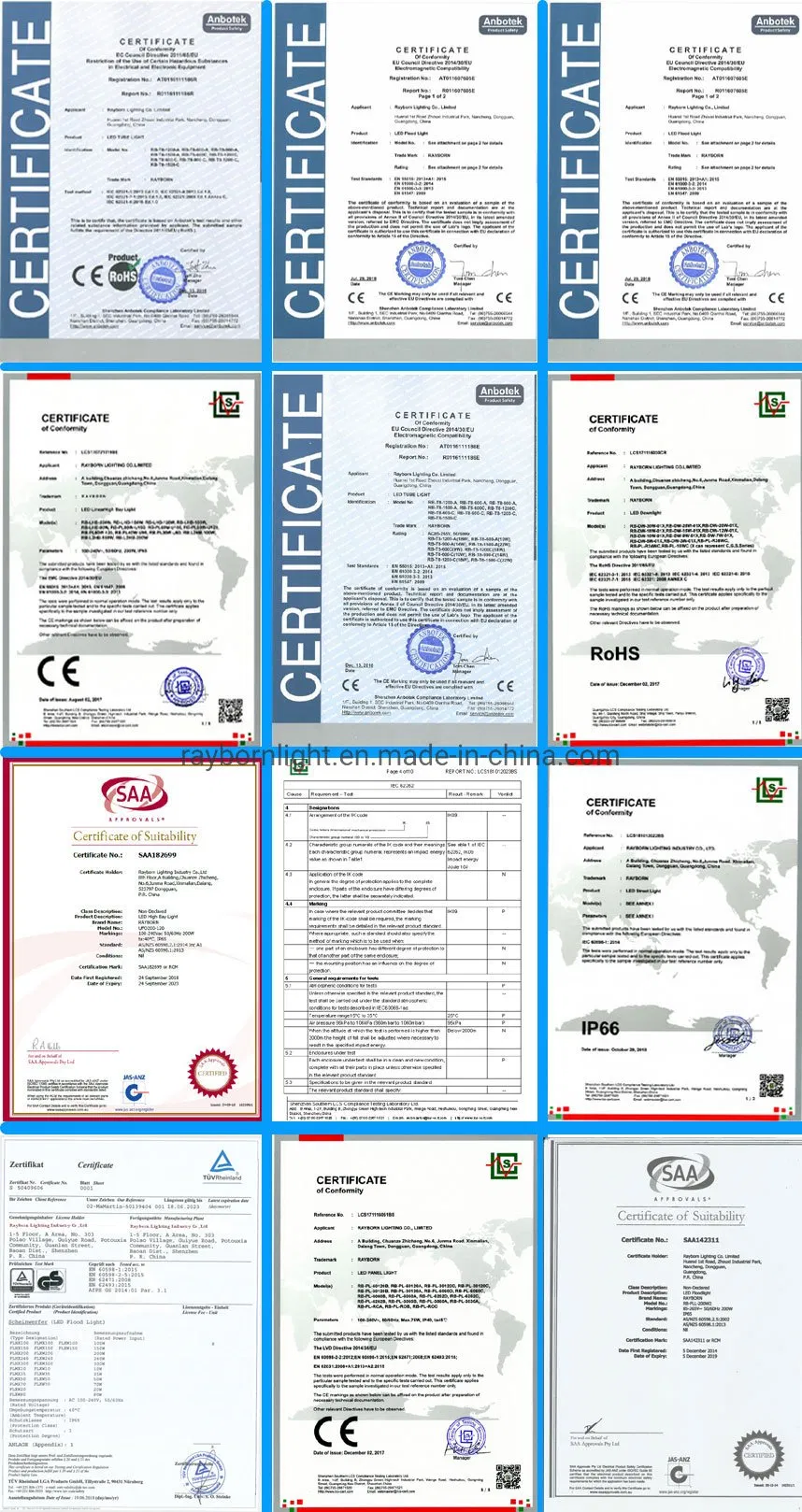

Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,SAA Certification.
Price can be negotiable. Should you have any interest or further questions, please feel free to contact us at any time.
Or you can tell us your requirements, we have a team of experienced engineers who can give you professional solutions and suggests,
Hopefully we have a chance to cooperate with you.
Approved by EMC,CE,LVD,Rosh,SAA,EMCC-tik certifications.
Any questions please feel free or need more information, please do not hesitate to contact me.
Specification
Power: 200w
Luminious Effencicy :120-130 Lm/W
Luminious Flux: 22000lm
CRI(Ra)≥ 80
Power Factor ≥95%
Power Effencicy ≥90%
Input Voltage : AC100-277V
Beam Angle :60/90/60*150degrees
LED Source : 3030
Net Weight: 6.5KG
Life Span :≥ 50000 hours( led chip)
Warranty : 5 years (except broken)
Color Temperature: Warm White 3000K~3500K Nature White 4000K~4500K Pure White 5000K~5500K
Cold White 6000K~6500K
| 200W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL-200WSD | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >92% | ||
| Lamp Driver | Meanwell | ||
| LED Chip: | 3030 | ||
| LED Power | 200W | ||
| LED QTY: | 192pcs | ||
| LED Working Voltage: | DC36 ~42V | ||
| System Consumption: | 200W | ||
| LED Luminous Flux | Warm White | 22100LM | |
| Pure White | 22500LM | ||
| Cool White | 23000LM | ||
| Viewing Angle: | 60/90/60*150° | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 5000K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+The secondary light distribution lens | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -35ºC~55ºC | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm2 three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| The color of the lamp shell | Black | ||
| Size: | 315*373*130mm | ||

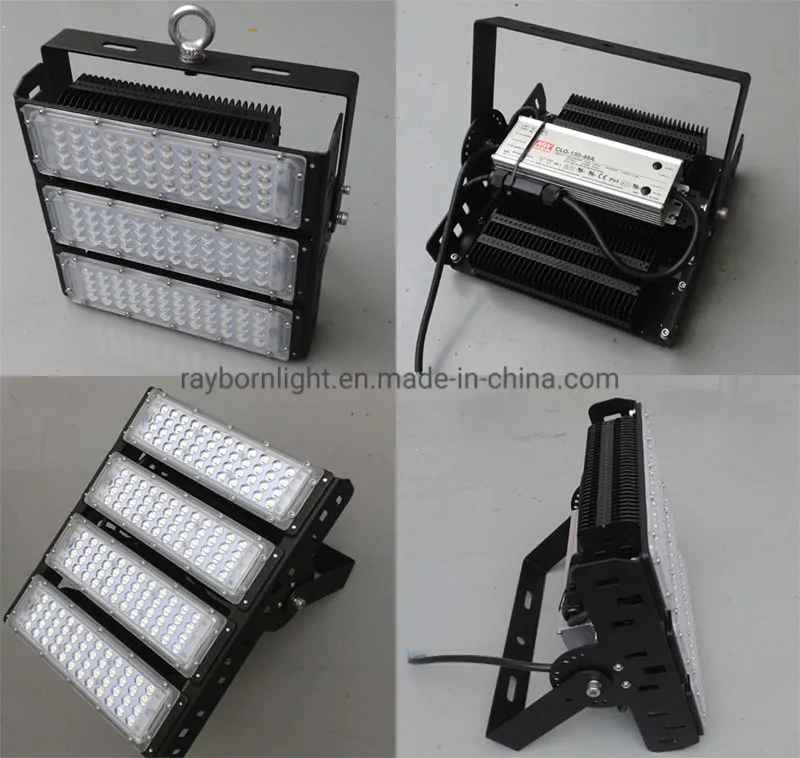

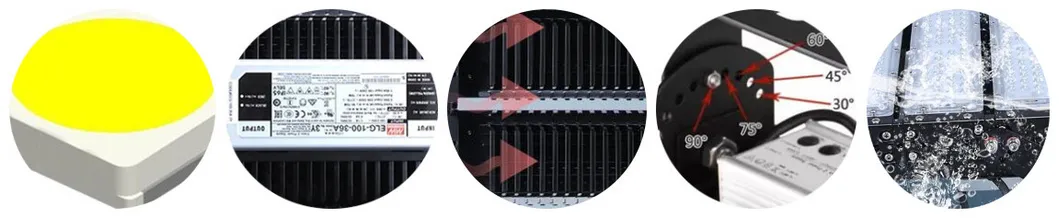

LED Flood light Features:
LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply: SUNPER LED flood light use Meanwell driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Color temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: DLC FCC CE RoHS approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

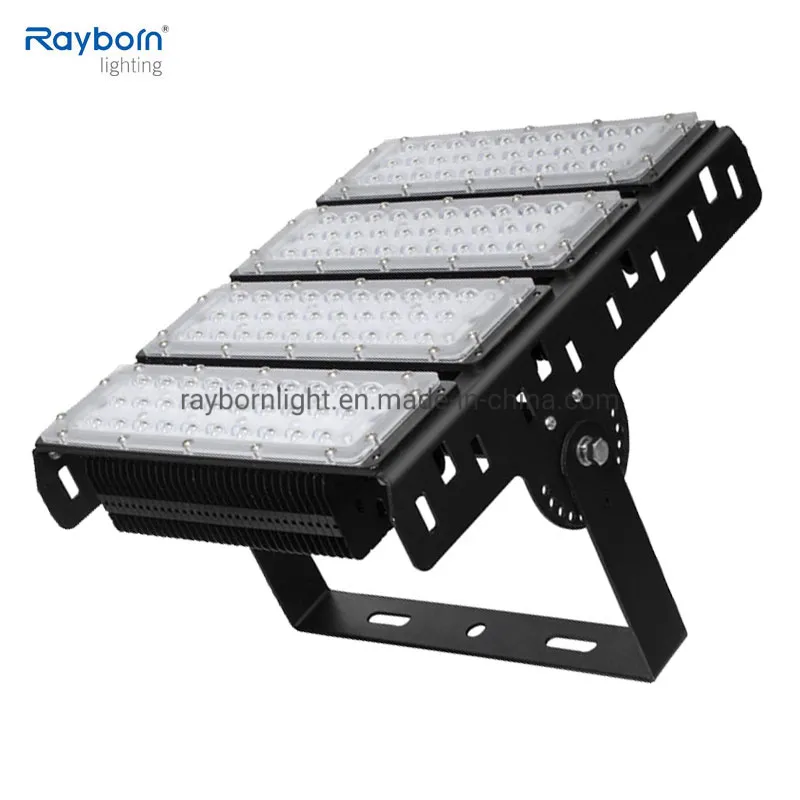

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
200w Waterproof LED Flood Lighting Competitive Advantage:
1. CE & RoHS &TUV IP65 approved, Quality Guaranteed
2. 140lm/w 3030 chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50,000 hours lifespan
Strict tests of led flood lights:
All of our led flood lights must go through many strict tests before shipping, such as current and function test, temperature test, earth connect test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.
Installation information of led flood light:
1. Check all the parts and accessories of LED flood lights;
2. Must cut off the power supply before installation;
3. Make sure LED flood light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power.
5. When the flood lamp is working, it must be kept vertical downward.

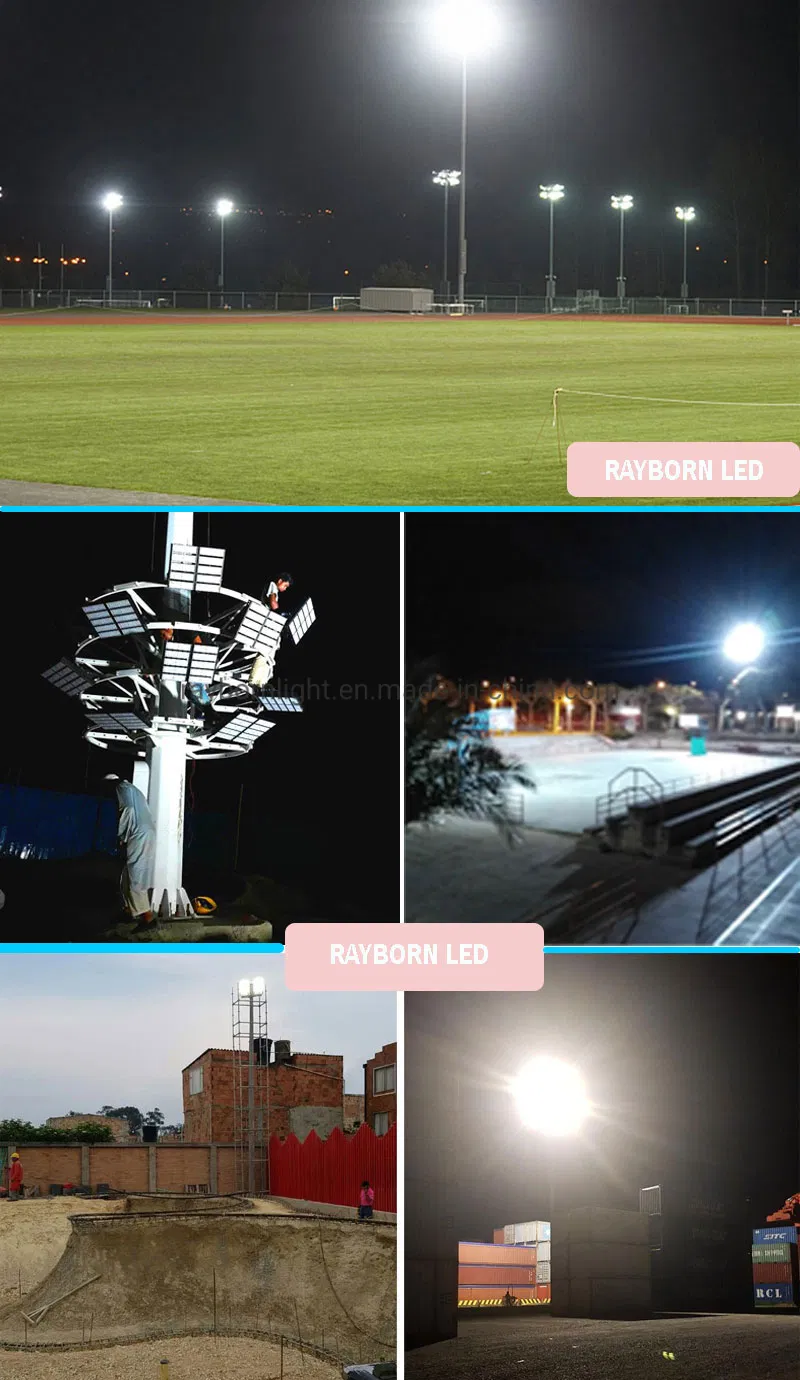

Applications of led flood light:
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Varies services can be provided to you
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM or ODM service is welcome.
3. Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
4. For all your inquires about us or our products, we will reply you in details within 24 hours.
5. Convenient and smooth communication.
6. Detailed and professional specifications and guidances of products.
7. Your requirements and complaints are highly respected.
8. Lighting solutions by professional technician.
9. Fast &Cheap Delivery.
10. Free Light study.
11. Various Certificates.
12. Product Update.
Trade terms
1. Payment: T/T, L/C and paypal are available.
2. Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3. Package: 1pcs-carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. Discounts are offered based on order quantities.
Our service
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private information.
Trade terms
1. Payment: T/T, L/C and paypal are available.
2. Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3. Package: 1pcs-carton or as your custom package.
4. Shipping freights are quoted under your requests.
5. Shipping port: Shenzhen port
6. MOQ:10 pcs
7. Discounts are offered based on order quantities.

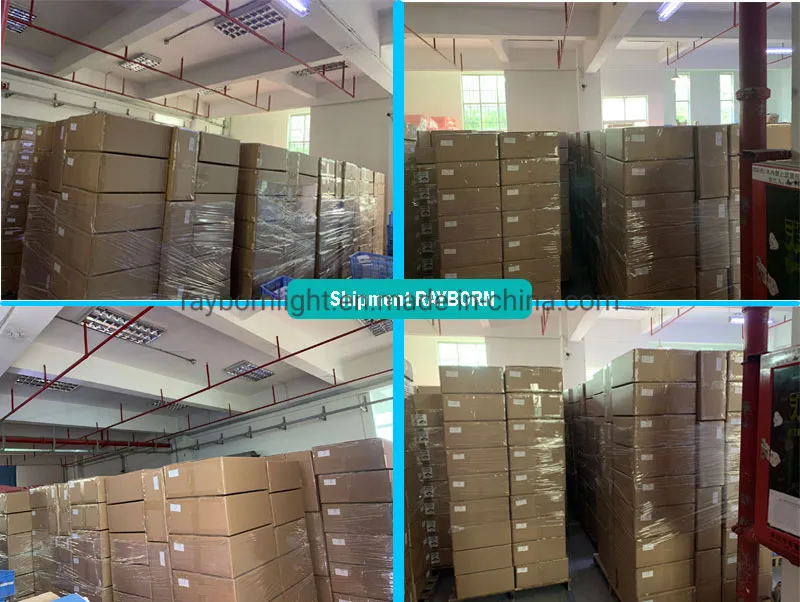

Packaging of LED flood lights
| Item | Dimension | Carton Size | Gross Weight | Packaging |
| 50w led flood light | 315*93*130mm | 33*22*22cm | 4.9KG | 2PCS/carton |
| 100W led flood light | 315*180*130mm | 35*26*16cm | 4.5KG | 1PCS/carton |
| 150W led flood light | 315*270*130mm | 35*31*16cm | 5.5KG | 1PCS/carton |
| 200W led flood light | 315*373*130mm | 39*35*16cm | 7KG | 1PCS/carton |
| 250W led flood light | 315*463*130mm | 55*35*16cm | 8.9KG | 1PCS/carton |
| 300W led flood light | 598*283*130mm | 64*33*17cm | 10.5KG | 1PCS/carton |
| 400W led flood light | 598*373*130mm | 64*44*19cm | 13KG | 1PCS/carton |
| 500W led flood light | 598*453*130mm | 63*53*17cm | 15KG | 1PCS/carton |
Shipping of flood LED lights: By sea,air,express (DHL,FedEX,UPS,TNT etc.)
1. Big quantity advised to be shipped by sea.
2. Samples advised to be shipped by express.
3. Small quantity advised to be shipped by air.
After-sales service
1. We offer 3-5 years warranty base on different price and products.
2. Any quality issue, we will replace for free within guarantee period.
3. Any accessories, we always support our customers.
Warranty and Warranty terms
We offer five-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Company Information
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
FAQ
Q1. What is the main business of Rayborn Lighting?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,SAA Certification.
Price can be negotiable. Should you have any interest or further questions, please feel free to contact us at any time.
Or you can tell us your requirements, we have a team of experienced engineers who can give you professional solutions and suggests,
Hopefully we have a chance to cooperate with you.
Related Category
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
