Marine LED Flood Light for Fishing Boat Exterior LED Deck Light IP66 140lm/W Efficiency 3000K 4000K 6500K Power 80W 12V 24V 32V CE RoHS Approved 5 Years
Outdoor Marine Aluminum Alloy housing dimmable 0-10V or PLC dimmer control water-proof IP6680watt 100watt 150watt 200watt 300watt LED Flood Light 100-277V 50/60Hz or 18V-20V-24V-32VDC Dimmable also for DALI or Triac dimmer with beam angle 4degree/8dgree/15degree/30degree... IK08Fishing boat or deck ......
Send Inquiry
Product Description
Outdoor Marine Aluminum Alloy housing dimmable 0-10V or PLC dimmer control water-proof IP66
80watt 100watt 150watt 200watt 300watt LED Flood Light 100-277V 50/60Hz or 18V-20V-24V-32VDC
Dimmable also for DALI or Triac dimmer with beam angle 4degree/8dgree/15degree/30degree... IK08
Fishing boat or deck lighting with Cree LUMILEDs OSRAM SMD3030/5050 LEDs chip LED Marine Flood Light
Pure Aluminum alloy forming LED spotlight 80W 100W 150W 200W 250W 300W for outdoor marine Security lighting with 5 years warranty
Narrow beam angle 7-8 degree searchlight Flat marine grade 80W 100W 150W LUMILEDs chip SMD505 IP66 IP67 LED Flood Light
Symmetric beam 7-8 degree + oval beam angle Area searchlight Flat IP67 LED Flood Light 80W 100W 150W up to 140-150lm/W
About LCD FA Series

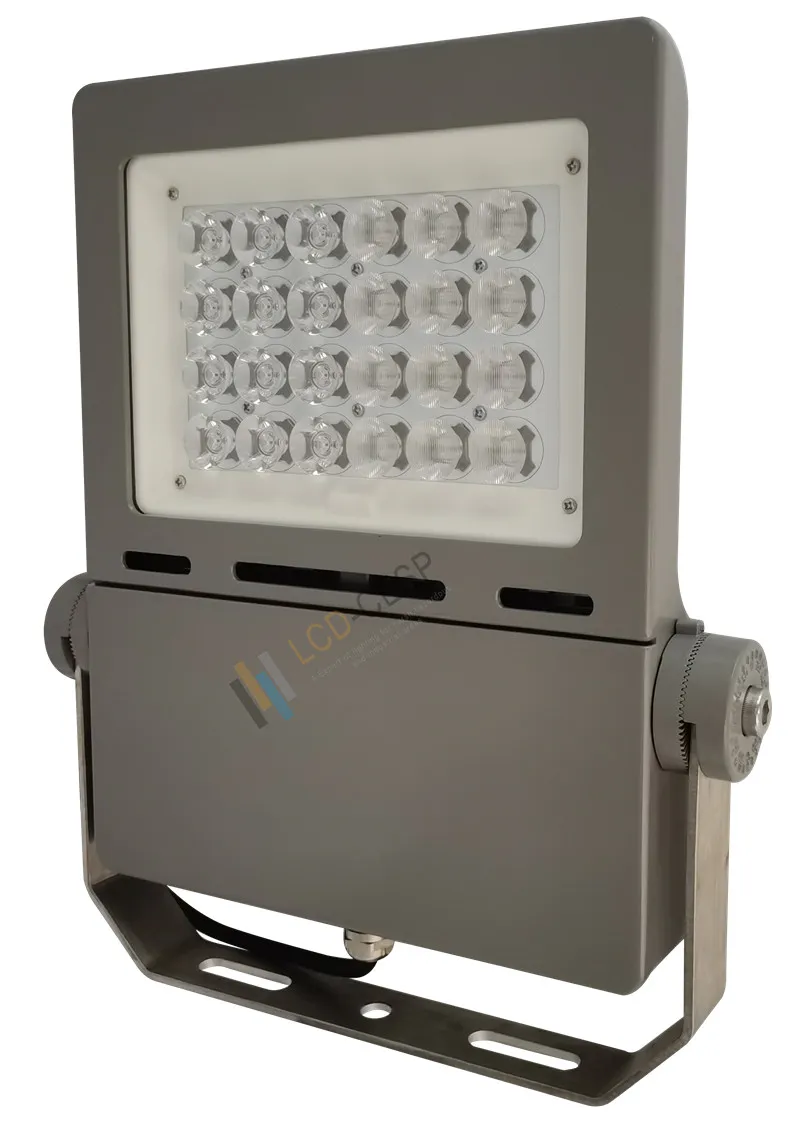

LCD LED Floodlite FA Series, a professional, powerful, energy saving replacement for high intensity discharge lamps or Halogen lamp. With a compact and modern design, Ph® SMD 5050 LED technology offers high brightness, a high lumen maintenance factor with MEANWELL driver and built in 3-4kV surge suppressor. We have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.
Strong housing made of white,grey or black die-cast aluminum, featuring high heat dissipation and superior aesthetics. Corrosion resistant with longer lifetime. Tempered glass, much stronger than regular glass, reduces the risk of injury caused by jagged glass shards. Impact resistant IK08 grade and protection rating IP66 IP67. Advanced heat sink design ensures LED does not exceed temperature ratings across all specifed ambient conditions. Universal voltage capacity 100-277V 50/60Hz or 12-32VDC.
Key Features:
• High luminous efficacy using LUMILEDs SMD3030 or Bridgelux SMD3030 LED chips
• Super slim rugged design (maximum depth 60mm)
• Custom designed case for effective heat dissipation
• In house Meanwell or Ph LED driver technology
• Impact resistant tempered glass
• Bracket designed with +/-160° angle with 5° interval locking system

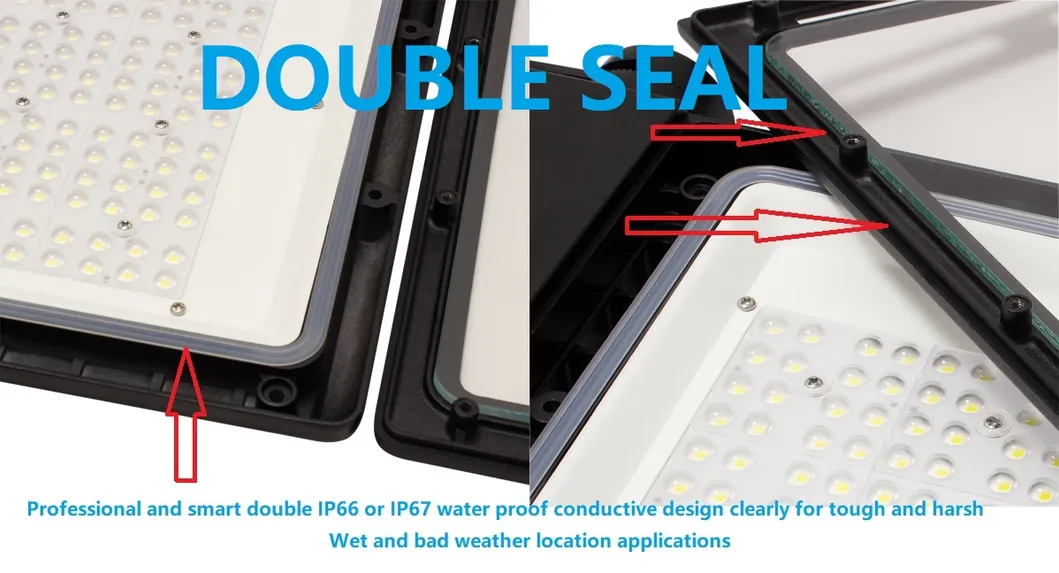

• Designed to eliminate water ingress
• Optional Dusk to Dawn available
• IP66,IP67 or IP68 rating
• 5-7 years warranty
Ideal for applications
such as

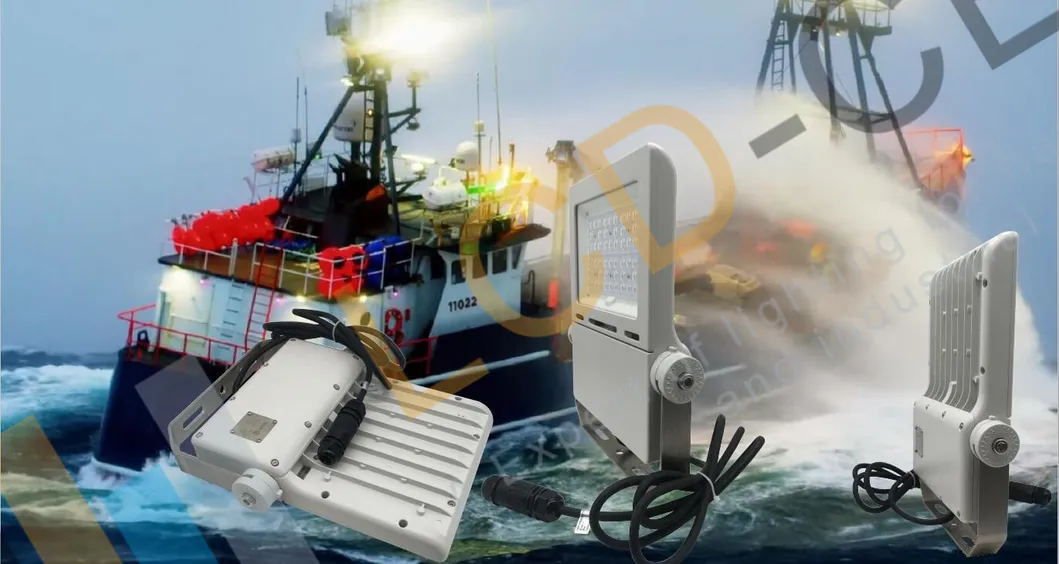

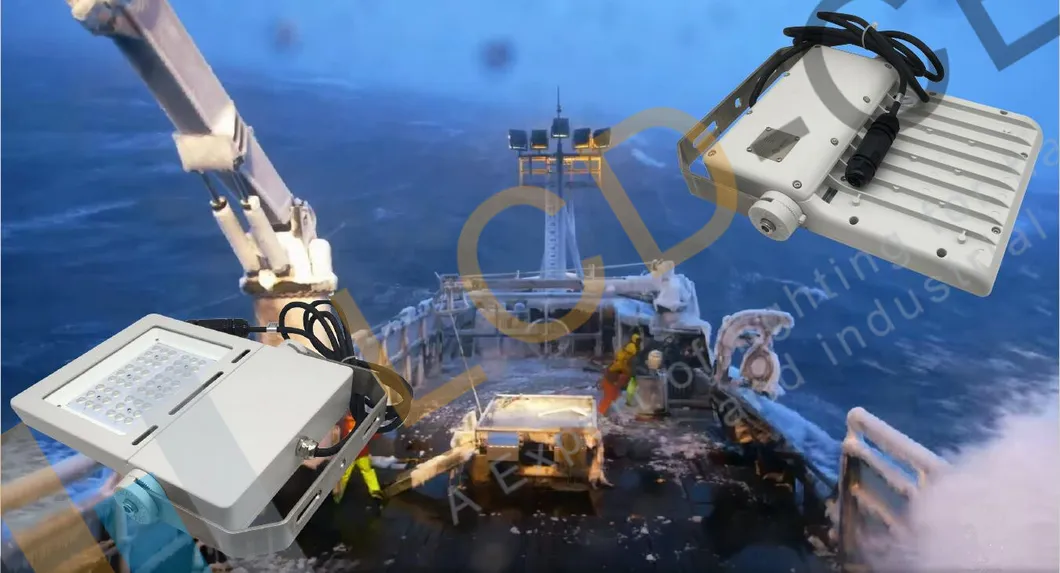

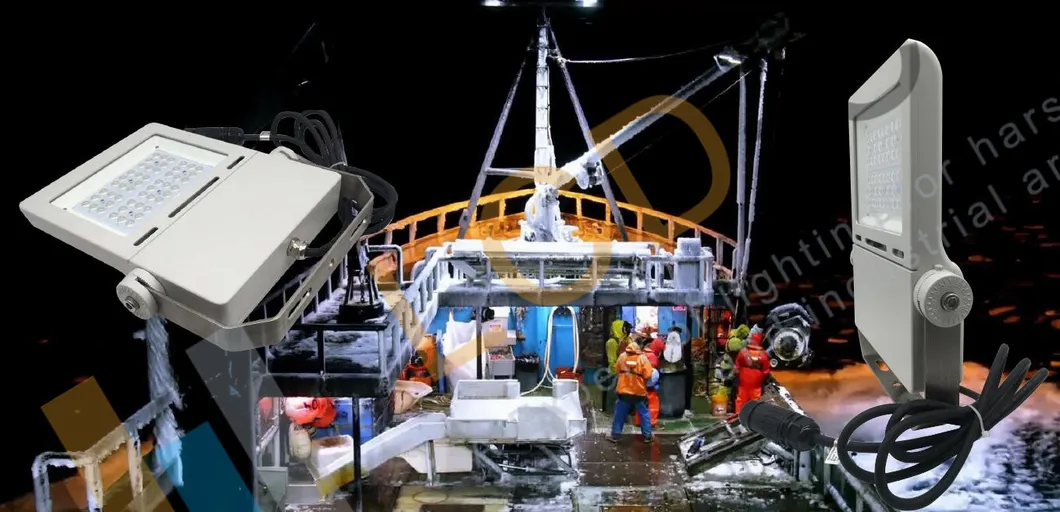

1. FISH PROCESSING LIGHTING, Maritime Applications, Crabbing boat, Seiners boat, Trawler boat fishing lighting
2. Or lansdcapes, accents, security and general wide area lighting for commercial and residendial use.
Details
| Product | 100W Floodlight | Code | FA-105 & 103 |
| Color Consistency (SDCM) | <5<> | Power Consumption (W) | 100W |
| Brightness (lm) | 15000lm | Halogen Equivalent(W) | 600-800 |
| LED Quantity | 48 | Light Color | Daylight White |
| Color Temperature (K) | 2700K-6500K | Dimmable | Non-dimmable or dimmable |
| CRI | > 70 | Beam Angle (Degree) | 15°, 30°, 60°, 90°, 120° |
| Input Voltage (v) | 100-305V AC | Frequency (hz) | 50/60Hz |
| Power Factor | > 0.95 | Length (in) | / |
| Width (in) | / | Height (in) | / |
| Net Weight (lb) | 3 | Material | Temper Glass, Aluminum alloy |
| Waterproof | IP66, IP67 or IP68 | Protection Rating | IP08 |
| Package Quantity | Pack of 1 Unit | Warranty | 5-7 Years |
| Weight | 5 | Motion Sensor | on requests |
Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request

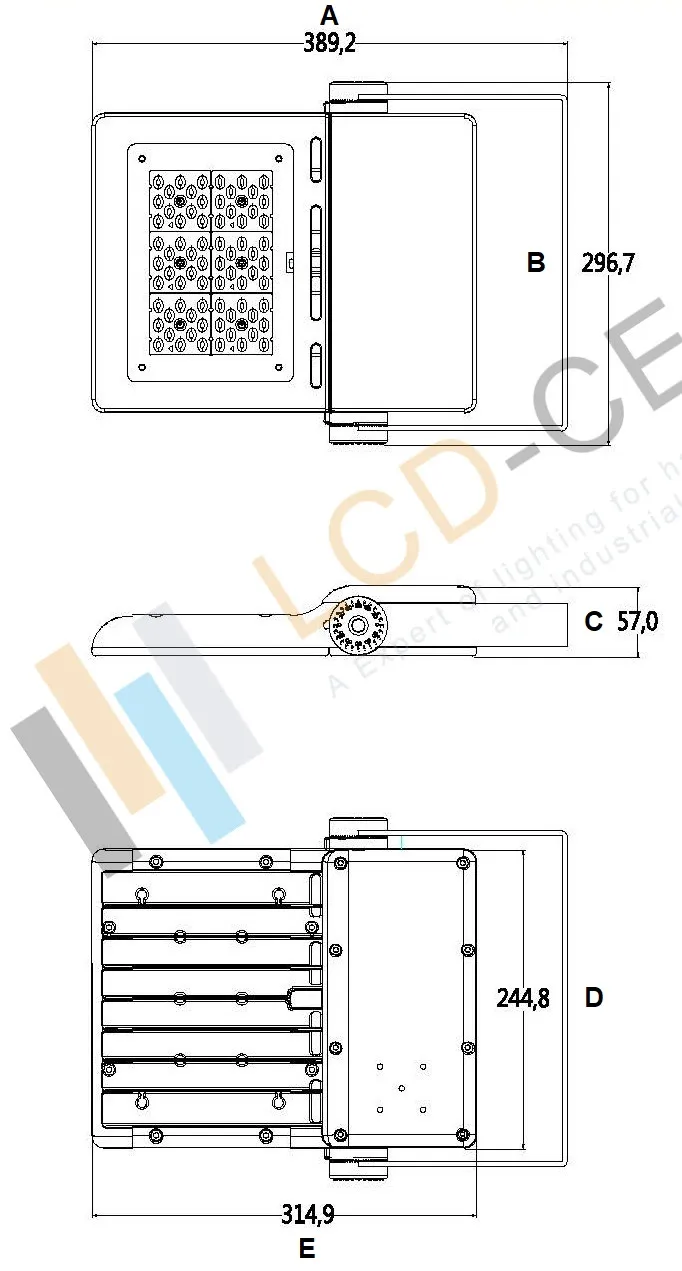

Product DIMENSIONS
AxBxC (mm ):
| Item Name | AxBxC (MM) |
| FA-085/105/153 IP67 flood light | 389.2x296.7x57 |
| FA-205 IP67 flood light | 436.6x345.7x57 |
| FA-255 IP67 flood light | 436.6x345.7x57 |
| FA-305/353 IP67 flood light | 582x385x60 |
Weight (kg ):
| Item Name | Weight (KG) |
| FA-085/105/153 IP67 flood light | 3.4 |
| FA-205 IP67 flood light | 4.8 |
| FA-255 IP67 flood light | 7.2 |
| FA-305/353 IP67 flood light | 7.5 |
Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM
This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.
Outdoor Pure Aluminum housing perfect thermal management Meanwell dimmable driver 1-10V water-proof IP65
80 Watt LED Flood Light 100-305V 50/60Hz or 12-32VDC
Dimmable for DALI or Triac dimmer high lumen output 11600lm IK08
Roadway or working area lighting with Cree LUMILEDs OSRAM SMD3030 or SMD5050 LEDs chip for LED street Light & working site
Pure Aluminum forming LED spotlight 80W for outdoor Security lighting with 5-7 years warranty
This luminaire was designed for its use in area, architectural or security lighting, for visible or highlighting elements of particular interest and adding high a esthetic value to buildings, monuments,etc.Available with two suspension systems: with bracket or arm on requests.
Feature
- A simple, durable, reliable and efficient LED floodlight with Pure Aluminum forming tech. extrude the heat-sink housing for perfect thermal management than the die-casting's housing.
- Low lifetime-cost Reduce power consumption and free maintenance
- Market leading size/weight/output ratio for high performance true symmetric or asymmetric luminaire with low aesthetic impact.
Product Specification review
A simple, durable, reliable and great thermal management and efficient LED floodlight
| Consumo Consumption | Altura de montaje Assembling height |
| 10w 20W 30W 50W 70W 100W 150W 200W | 2-15meter |
| Voltaje Voltage | Frecuencia Frequency |
| 100-277 V AC or 10-24VDC | 50/60 Hz |
| Grado de Protección Protection level | Óptica Optic |
| IP65 IK08 | Eficiencia / Efficiency : 90% |
| FHS UHF | Vida útil Life span |
| <1% | L70 - 50.000h |
Application review
- Low area & job site lighting
- Building surrounds
- Façade lighting
- Car parking lighting
- Road & billboard lighting

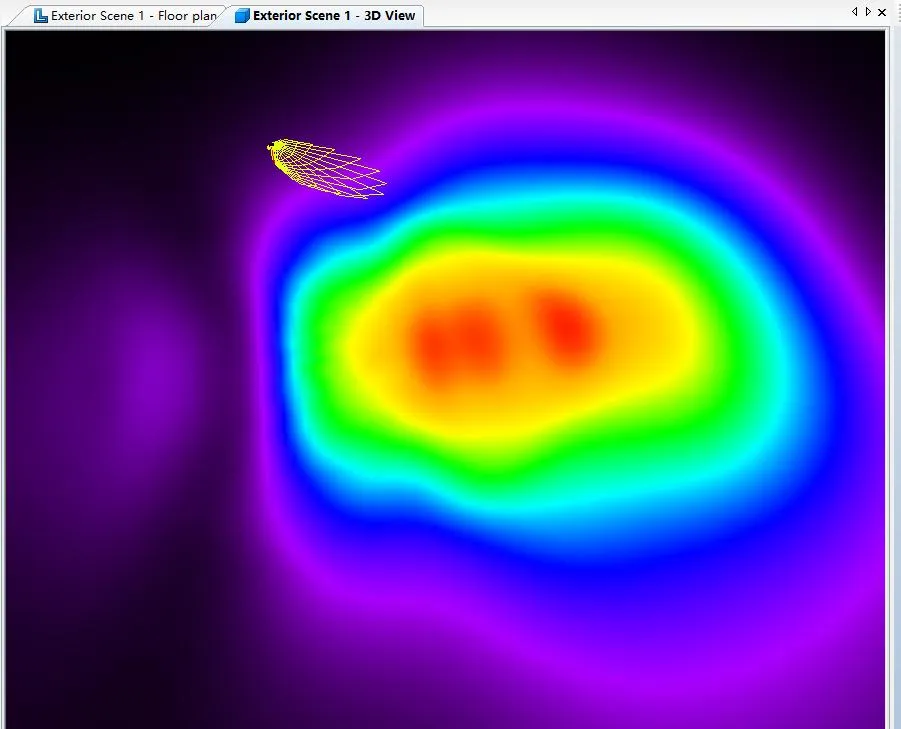

Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.
Product dimension review
Mounting options
Three mounting options to cover all low area lighting applications.
Wall or ceiliing mounted --Area & site
Surface mounted--Facade
Mast & Post--Road & Car Parking
Installation review
HYLY features a super lightweight design and is pre-wired for effortless installation.
Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.
FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.
Pre-wired. Quick and easy installation with no wiring.
Low Voltage 80W DC12V 11600 Lumen Outdoor LED Flood Lights
led outdoor flood light bulbs 10W DC12V 11600lm IP65 Aluminum die cast ADC12
Slim Floodlight specifications:
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body
-- Installation with bracket on surface and floor.
-- Mains voltage: 220-240V / 50-60Hz.
-- Clever thermal design with internal cooling pins.
-- Narrow, medium and wide beam angles available.
-- Led colour temperatures optionally 3000K, 4000K and 6000K.
-- Suitable for illumination up to 8 meter height.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 120lm/W efficiency (4000K - 800mA)
-- High colour consistency: <3 SDCM
Application:
Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.
Products features
| Material | Aluminium die cast ADC12 housing +4mm temper glass face |
| Efficacy | up to 178 lumen /watt |
| LEDs chip | LUMILEDs SMD5050 |
| SDCM | <5 |
| Optic beam | 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40 |
| Ingress protection | IP66 |
| Mech. impact protection code | IK08 Impact rating |
| Mounting | "U" bracket / slipfitter |
without compromising light quality or a sense of security for those in the area.
Power saving and free maintaining
Floodlight configurations
Mounting
Optical distributions
Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40
Dimension
Products Specification
Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-FLY-013 10W 1300 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 0.54Kg 179x145x32
LCD-FLY-023 20W 2600 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 0.65Kg 189x148x32
LCD-FLY-033 30W 3900 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.25Kg 261x194x47
LCD-FLY-053 50W 6500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.50Kg 350x265x69
LCD-FLY-083 80W 10400 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.70Kg 350x265x69
LCD-FLY-103 100W 13000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 2.85Kg 397x308x68
LCD-FLY-153 150W 19500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.18Kg 441x347x68
LCD-FLY-203 200W 26000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.50Kg 500x385x68
SUITABLE FOR: LED FLY Series, a professional, powerful,energy saving replacement for high intensity discharge lamps.With a compact and modern design, OSRAM or LUMILEDs(3030) SMD LED chips, a high lumen maintenance factor with Meanwell driver or LCD brand CE&TUV driver , we have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.
Strong housing corrosion resistant made of black Extruded aluminum,featuring high heat dissipation and superior aesthetics with longer lifetime. High transmission rate tempered glass increases rate up to 93%,anti-impact rating IK08. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. An overall IP65 grade to ensure fully water-proof. Our state of the art UL CE TUV etc driver, or be includes a built in 10kV surge suppressor with universal voltage capacity 100-277v 50/60Hz. Ideal for indoor and outdoor area lighting such as Marine, Mining, landscaping, buildings,and parking areas. Works well for wall mounting or ground mounting.
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***Highlight

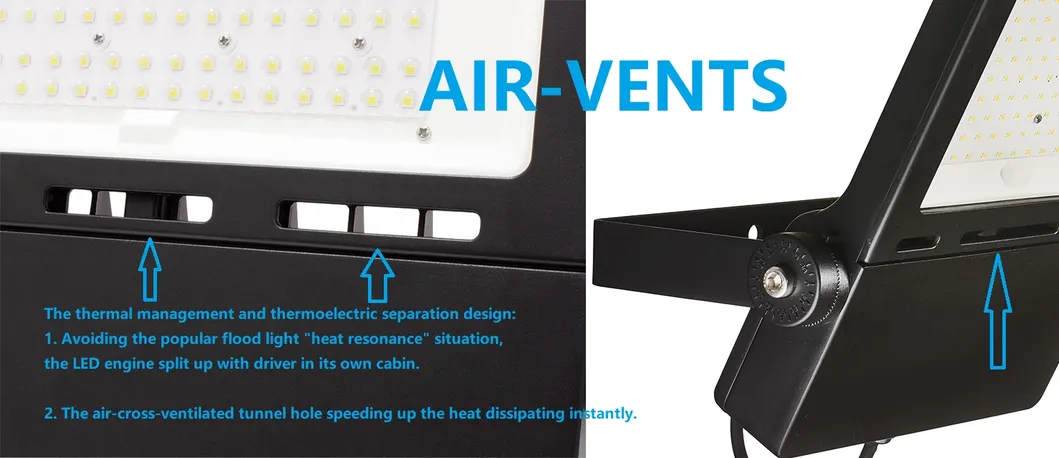

Extruded aluminum heatsink housing body painted with epoxy powder prior to phosphating. Tempered anti-shock thermal silkscreen glass. Built-in electronic ballast Meanwell driver or TUV LCD brand driver, CE standard 1m cable. The polished anodized aluminum faceted louver.
***Extruded Aluminum housing thermal conductivity about 230w/(m.k) and 2.5 times of popular aluminum alloy's 97w(m.k),the more fast way spreading LEDs engine's heat into the air ensure a long lifespan for products.
***High quality housing surface ensure a perfect painted with epoxy powder for the strongest corrosion resistant.
***New hotspot thermal management technology.
***Definitely and incredible dust deposition prevention and easily simply cleaning.
Light source: LED multichip technology with LUMILEDS or OSRAM LEDs chip.
Direct light emission. Installation by mean of supplied bracket. Over-temperature control circuit inside.
