Home > Products > LED Floodlight > PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED

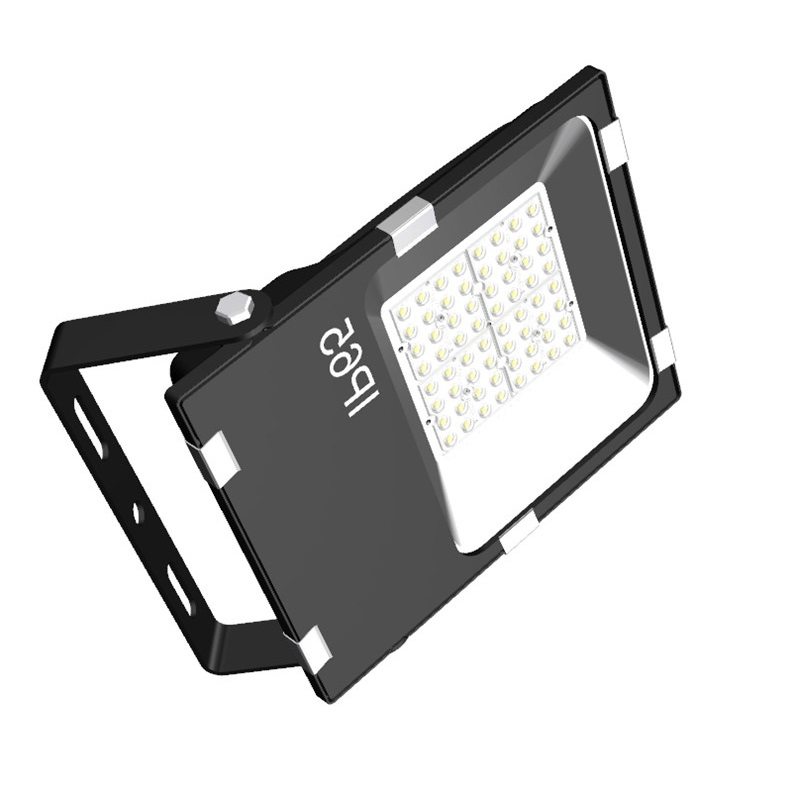

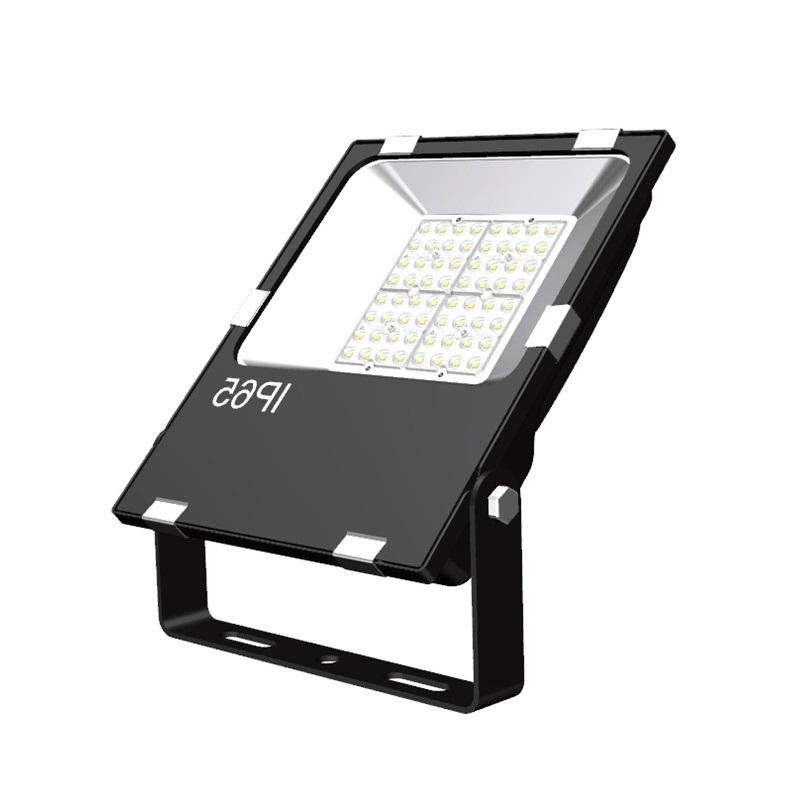

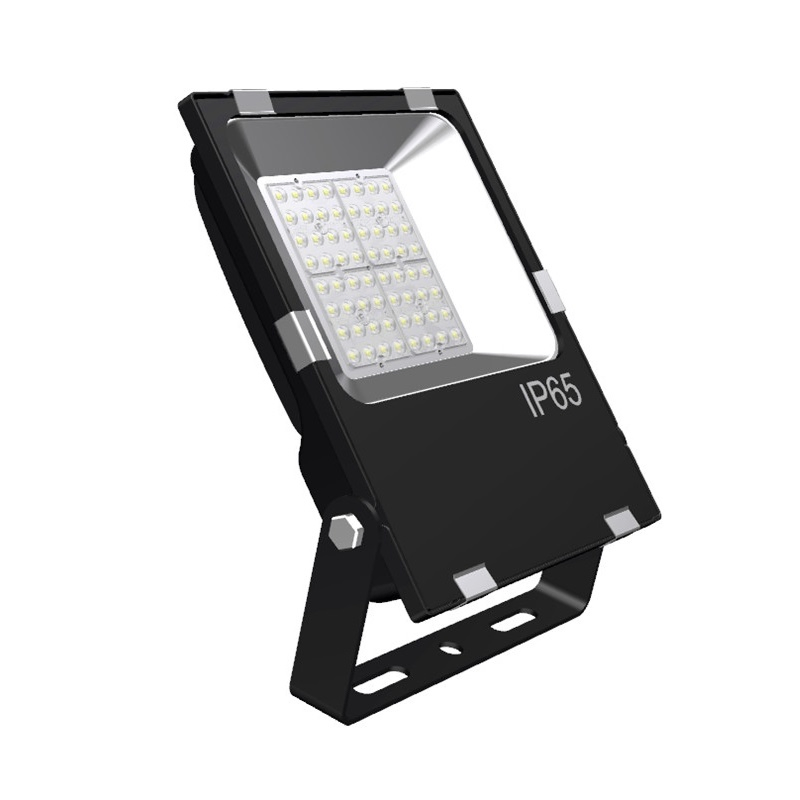

              PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED
              • PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LEDPF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED
              • PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LEDPF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED
              • PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LEDPF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED
              • PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LEDPF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED

              PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED

              Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)LCD-FS-LEN-053/055 50W 3600-7500 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 1.70 ......

              Send Inquiry

              Product Description

              Model No.                          Power(W)        Lumens(lm)         Color temperature                  Input Voltage    Current    Weight(kg)    Dimensions (mm)

              LCD-FS-LEN-053/055         50W            3600-7500             3000k / 4000k / 6500K           85 ~ 265VAC    0.12A        1.70               346*200*65
              LCD-FS-LEN-103/105        100W         12000-15000           3000k / 4000k / 6500K           85 ~ 265VAC    0.12A        3.33               365*310*60
              LCD-FS-LEN-153/155        150W         18000-20000           3000k / 4000k / 6500K           85 ~ 265VAC    0.12A        3.80               365*365*60
              LCD-FS-LEN-203/205        200W          24000-32000          3000k / 4000k / 6500K           85 ~ 265VAC    0.12A        4. 65              365*420*60
              LCD-FS-LEN-303/305        300W          36000-50000          3000k / 4000k / 6500K           85 ~ 265VAC    0.12A        8.20               590*387*63

              PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED
              SUITABLE FOR: With LCD-FS-LEN series LED site & area and floodlight luminaires, high output lighting doesn't have to mean high energy and maintenance costs. LCD-FS-LEN series provides your outdoor area with bright, uniform illumination while slashing energy and maintenance costs compared to traditional lighting technologies. And instill a sense of security and attract attention in any large area or floodlighting application without the hassle of frequent relamping or high utility bills.A wide variety of sizes, lumen outputs, modules, optics and other features offer increased flexibility without under- or over-lighting the space. LCD-FS-LEN's application-specific optics, such as automotive front row and airport apron, ensure that light is directed exactly where it is needed to maximize efficiency and minimize operating costs. With the highest lumen output available on the market today,LCD-FS-LEN series can help you achieve optimal light levels with fewer luminaires compared to traditional 1000W HID solutions without compromising light quality or a sense of security for those in the area.LCD-FS-LEN's full illumination lets your inventory sparkle and shine at night without unnecessary light trespass. LCD-FS-LEN area and site luminaires are available with a color rendering index (CRI) of 80, ensuring your inventory will look its best day and night. Longlasting,energy-efficient LED technology helps to significantly lower energy and maintenance costs compared to traditional lighting technologies, while optional programmable dimming and motion response sensors further enhance energy savings without compromising a sense of security.LCD-FS-LEN casts bright, uniform light across the entire parking lot, eliminating dark zones between poles, so that pedestrians and drivers feel a sense of security as they drive and walk throughout the area. While dimmable LED technology significantly reduces operating and maintenance expenses, the simple retrofit onto existing poles means that initial expenses are minimized, too. And as the number of luminaires can be reduced without compromising light quality, poles can be eliminated from the space to reduce clutter.LCD-FS-LEN has a variety of mounting options and optical distributions to ensure a sense of security throughout any outdoor area, such as airport terminals, parking lots, docks and piers.LCD-FS-LEN's Airport Bracket optics, available in the floodlight configuration, are designed to address the specific needs of this application, minimizing spill light and glare, and may be aimed to achieve cut off requirements.
              (1)DC available on special request
              (2)Warm white Neutral White and cool white available indent only
              ***AC Current rating at 85 ~ 265VAC
              **Black housing
              ***Marine coating

              PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED
              ***Housing
              Main body castings made of a low copper die cast Aluminum alloy (A360) for a high resistance to corrosion, 1.0-1.5mm minimum thickness. Main body extrusions
              made of corrosion resistant low copper extruded anodized aluminum alloy (Anodized 6063-T5).
              ***Driver/Electrical Door
              Removable die cast aluminum door made of a low copper alloy (A360) for a high resistance to corrosion. Provides access to electronic components/LED drivers. Designed for robust IP66 rated seal using one-piece silicone rubber gasket surrounding the entire perimeter of the electronics compartment. Door secured with 8 captive screws outside of gasket perimeter.Driver/electrical compartment is IP67 sealed/ rated in all aiming positions including upward aiming floodlighting applications and including when PCB option is installed.
              ***Light Engine
              Composed of 4 main components: Heat Sink / LED Module / Optical System / Driver. Electrical components are RoHS compliant. IP66 sealed light engines. LEDs tested by ISO 17025-2005 accredited lab in accordance with IESNA LM-80 guidelines extrapolations in accordance with IESNA TM-21. Metal core board ensures greater heat transfer and longer lifespan.

              PF 0.95 CRI80ra Thd<15% Aluminum Alloy Die Casting 100W LED Flood Light for Cement Lime and Gypsum Lighting Floodlight LED
              ***Heat Sink
              Anodized 6063-T5 Aluminum for a high resistance to corrosion, designed to ensure high efficacy and superior cooling by natural vertical convection. Air flow pattern always close to LEDs and driver optimizing their efficiency and life. Product does not use any cooling device with moving parts (only passive cooling).
              ***LED Module
              Composed of high performance white LEDs. Color temperature as per ANSI/NEMA bin Neutral White, 4000 Kelvin nominal (3985 +/-275K or 3710K to 4260K), CRI 70 Min.
              ***Optical System
              Choice of differents distributions including Spot (SP), Asymmetric 33° Flood (A33), Rectangular Medium Flood (RM) distributions and a specialty distribution designed for Airport bracket applications featuring a wide 80-130° horizontal and narrow 15-20° vertical beam. Composed of high performance UV stabilized optical grade polymer refractor lenses to achieve desired distribution optimized to get maximum spacing, target lumens and a superior lighting uniformity. System is rated IP66. Performance shall be tested per LM-79, LM-80 and TM-21 (IESNA) certifying its photometric performance. Designed and tested to rating IK10 in accordance with European standard EN 62262 (equivalent of international standard IEC 62262 2002).
              ***Driver
              With Meanwell or LCD brand TUV driver,high power factor of 90% min. Electronic driver, operating range 50/60 Hz. Auto adjusting universal voltage input from 85 to 277 VAC or 347 to 480 VAC rated for both application line to line or line to neutral, ClassI, THD of 20% max. 0-10V dimming driver included, dimming leads pre-wired to controls except when DD option is selected. The current supplying the LEDs will be reduced by the driver if the driver experiences internal overheating as a protection to the LEDs and the electrical components. Output is protected from short circuits, voltage overload and current overload. Automatic recovery after correction. Standard built in driver surge protection of 2.5kV (min).


              10W-200W LED Floodlight

              • Wattage: 10W-200W
              • Lumens: 1300lm-28000lm
              • Efficiency: >140lm/w
              • Application: Outdoor
              • Dimmable: YES
              General Information
              Lamp family codeLCD-FS-xxxx-LNxxx
              Light source colorwarm white, Neutral white, cool white
              Light source replaceableyes
              Driver/power unit/transformerdimmable Ph driver / Meanwell driver / LCD brand driver
              Driver includedyes
              Optical cover/lens typereflector or Polycarbonate micro lens optic
              Luminaire light beam spread110° or 60ºx60º, 90ºx90º,30ºx30º,TYPE 3/4/5
              ConnectionFlying leads/wires
              CableCable 1.5 m without plug
              Protection class IECSafety class I
              CE markyes
              Warranty period5 years warranty
              Optic type outdoorSymmetrical wide beam or Asymmetric beam
              EU RoHS compliantNo
              Light source engine typeLUXEON SMD 3030





              Operating and Electrical

              Input Voltage220-240 VAC or 110-277VAC
              Input Frequency50 / 60 Hz
              Power Factor (Min)>0.97
              Controls and DimmingDALI,1-10V , Triac , motion sensor or Infrared induction




              Mechanical and Housing
              Housing MaterialAluminum alloy die-cast
              Reflector materialPure polish aluminum reflector
              Optic materialPolycarbonate
              Optical cover/lens materialtemper glass
              Fixation materialCarbon steel with corrosion proof powder coating
              Mounting deviceMounting bracket adjustable
              Optical cover/lens shape-----
              Optical cover/lens finishtransparent  or  Frosted temper glass
              Overall lengthsee dimensional drawing
              Overall widthsee dimensional drawing
              Overall heightsee dimensional drawing
              Effective projected area0.076m²
              ColorAluminum and black




              Approval and Application
              Ingress protection codeIP65 [ Dust penetration-protected, jet-proof]
              Mech. impact protection codeIK07 [ >4 J vandal-protected]
              Surge Protection (Common/Differential)Luminaire surge protection level until 3 kV



              Initial Performance (IEC Compliant)
              Initial luminous flux (system flux)>28000 lm
              Luminous flux tolerance+/-10%
              Initial LED luminaire efficacy>140 lm/W
              Init. Corr. Color Temperature3000K / 4000K / 6500K
              Init. Color Rendering Index75
              Initial chromaticitySDCM<=5
              Initial input power200 W
              Power consumption tolerance+/-10%



              Application Conditions / Product Data
              Ambient temperature range-30 to +50 °C
              Maximum dim levelon requests
              Full product codeLCD-FS-203-LNXX-4K
              Order product nameLCD-FS-Flood light 200W
              Order codeN
              Numerator - Quantity Per Pack1 pcs
              Numerator - Packs per outer box1 box
              Material Nr. (12NC)N
              Net Weight (Piece)5.5KG
