Footpath Light Pole, Lighting LED CMH Light Pole
LEALITE offers a wide range of steel pole products: area, roadway, high-mast and decorative lighting poles; utility distribution and traffic-signal poles; custom-designed poles.MATERIALLealite steel poles are manufactured of S335/S355/A36 grade steel, maintain a minimum wall thickness of .120, and a......
Send Inquiry
Product Description
LEALITE offers a wide range of steel pole products: area, roadway, high-mast and decorative lighting poles; utility distribution and traffic-signal poles; custom-designed poles.
MATERIAL
Lealite steel poles are manufactured of S335/S355/A36 grade steel, maintain a minimum wall thickness of .120″, and are circumferentially welded to the base, anchor bolts per ASTM A576,nuts washers and threaded portion of bolts are all hot dip galvanized.
FINISHING COAT
The material of the finishing coat is a gel coat that complies to SANS 1749 and is applied to a uniform thickness, providing a weatherproof, UV-resistant, flame-resistant and impact-strong surface in the color specified.
MECHANICAL PROPERTIES
Standard poles supporting a luminaire (lights) with a wind surface of 0.20m²will not have a pole top deflection of more than 5% of its height aboveground when subjected to a basic wind pressure of 500Pa. A safety factor of 2.5 times the total maximum wind-load is applicable.
QUALITY SYSTEM

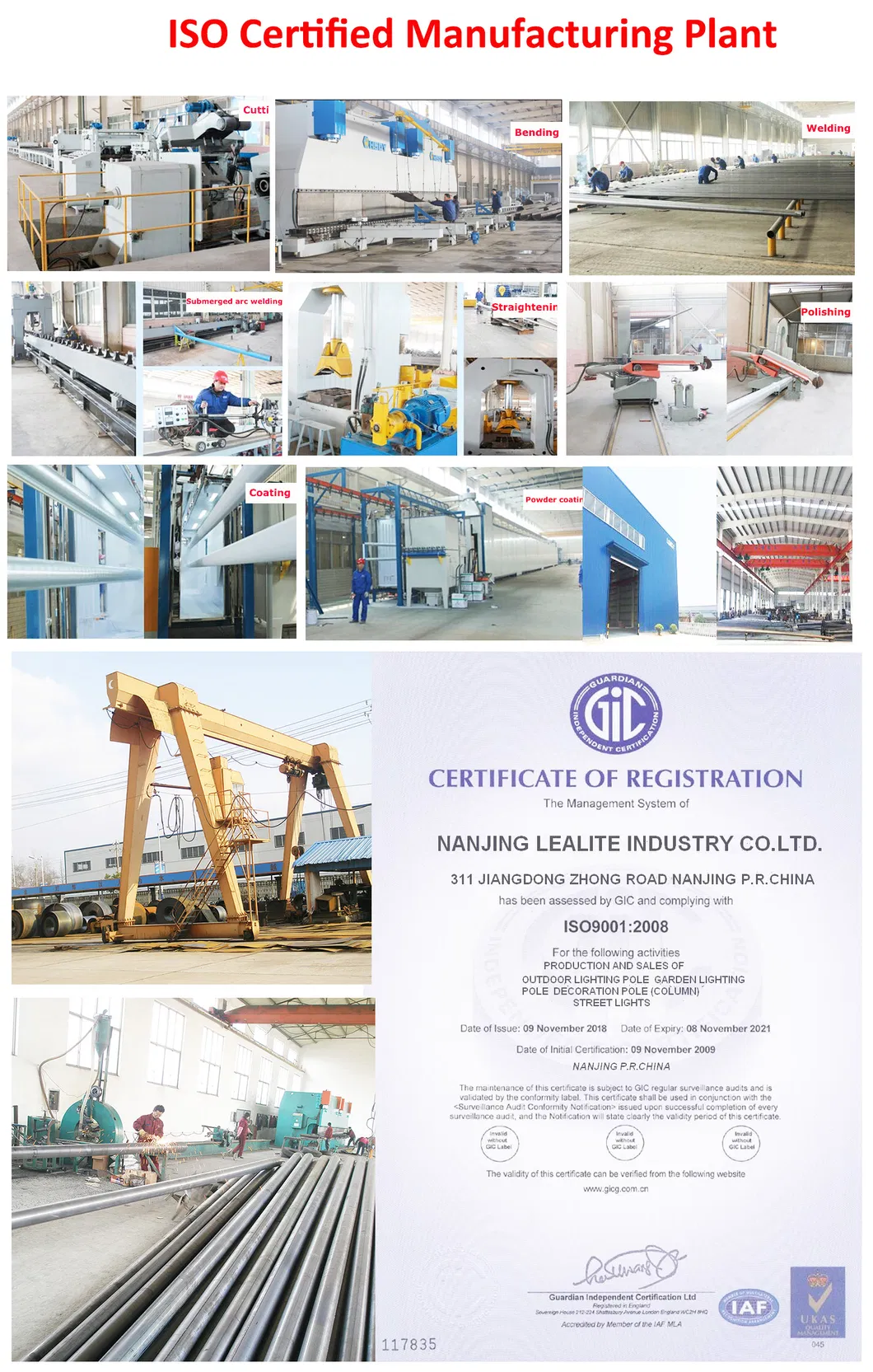

Lealite poles are manufactured in accordance with SANS 1749 under the ISO 9001 quality system.
BASE PLATE
Poles for direct embedment in the ground can be provided with hot dipped galvanized base plate complete with hot dipped galvanized steel bolts and nuts. Base-mounted poles have a hot dipped galvanized flange plate that can be bolted to a foundation which is designed to withstand the forces the pole will experience in service.
Terminal Block
To meet demands, complete with terminal block and DIN rail for a miniature circuit breaker, will be provided and mounted to a bolt provided in opening door.
Lealite experience in the steel manufacturing process and our customer-driven marketing philosophy has enabled us to grow in the steel pole industry with sales throughout North and South America, Europe and Africa. We strive to exceed our customers' expectations no matter the quantity, size, design or volume of their order. Our goal is to produce the highest-quality products in a timely manner and at a competitive price.
| Type and accessories, spare parts | Description | Drawing No. | |
| SPIGOT MOUNTING | Mounted into straight pole, hot dipped galvanized | Single side entry spigot | LD-01SA series |
| double side entry spigot | LD-01DA series | ||
| triple side entry spigot | LD-01TA series | ||
| Quadruple side entry spigot | LD-01QA series | ||
| FLOODLIGHT MOUNTING | Hot dipped galvanized | Floodlight mounting for single floodlight- Type of floodlight to be specified | LD-FLSA series |
| Floodlight mounting for double floodlights- Type of floodlight to be specified | LD-FLDA series | ||
| HIGHMAST MOUNTING | Hot dipped galvanized | Mounting height from 16 meters to 30 meters | LD-HM series |
| DECORATIVE LANTERN | Hot dipped galvanized, painted in the colour to be specified | 2 arm version | |
| 3 arm version | |||
| 4 arm version | |||
| 5 arm version | |||
| FLAG POLE | Completer with rope and rope attachment | ||
| BASE PLATE | For rooted mounting pole | Base plate assembly 300*300*3mm Base plate assembly 400*400*5mm | Anchor bolt kit |
| MINIATURE CIRCUIT BREAKER | 5A/10A | ||
