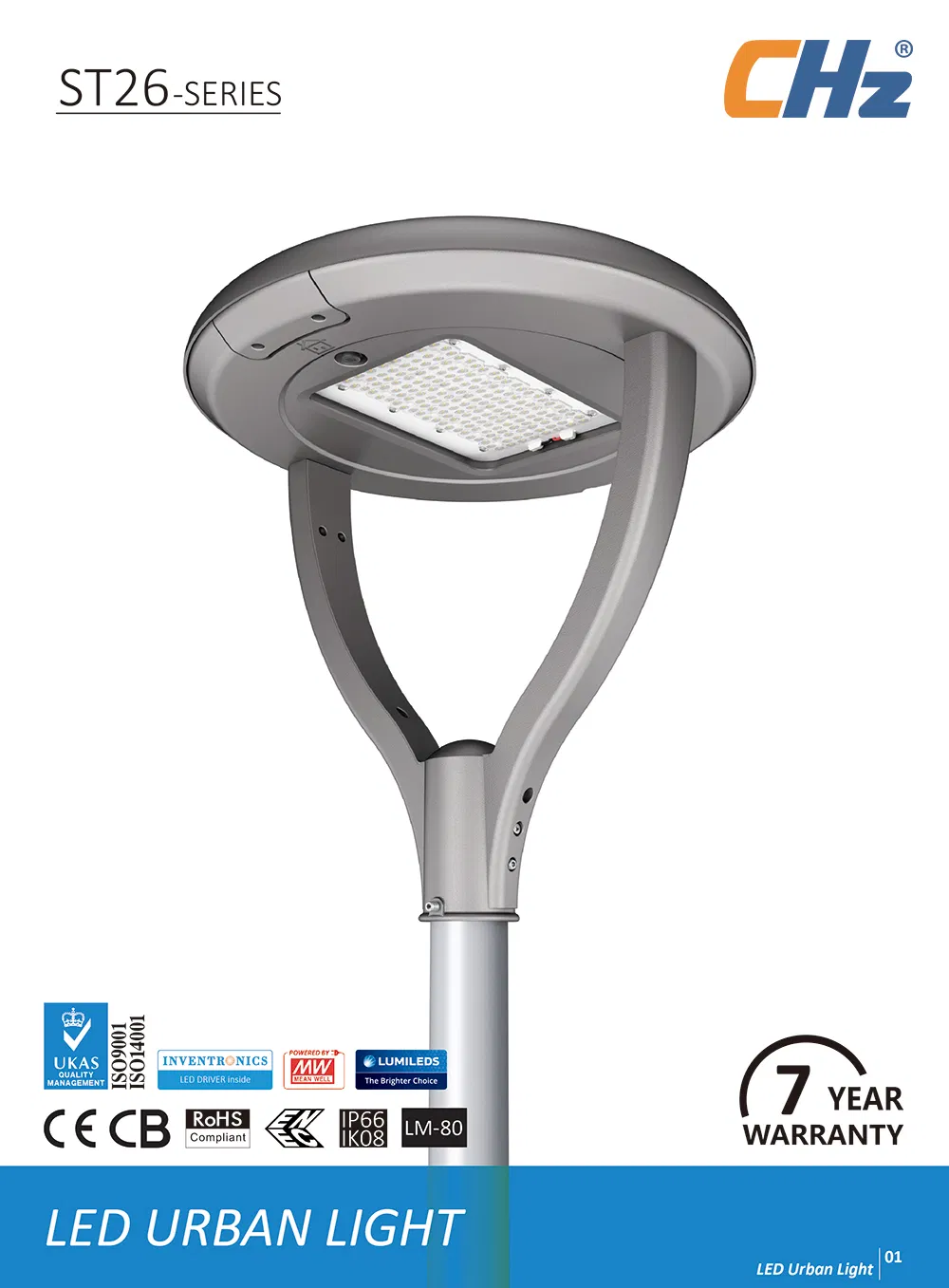

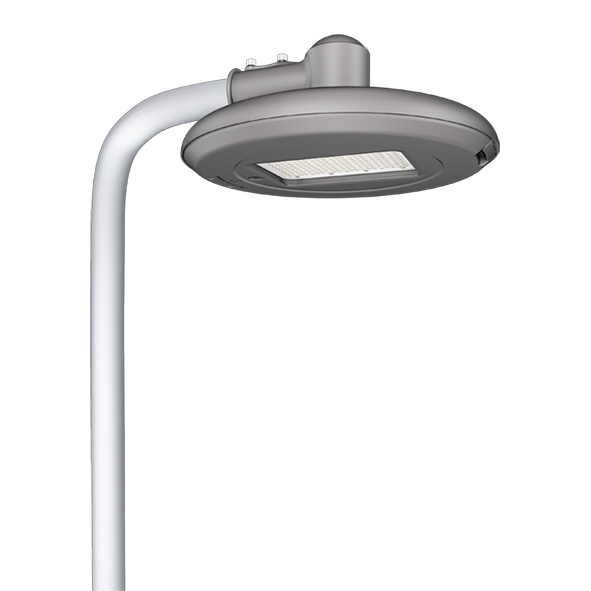

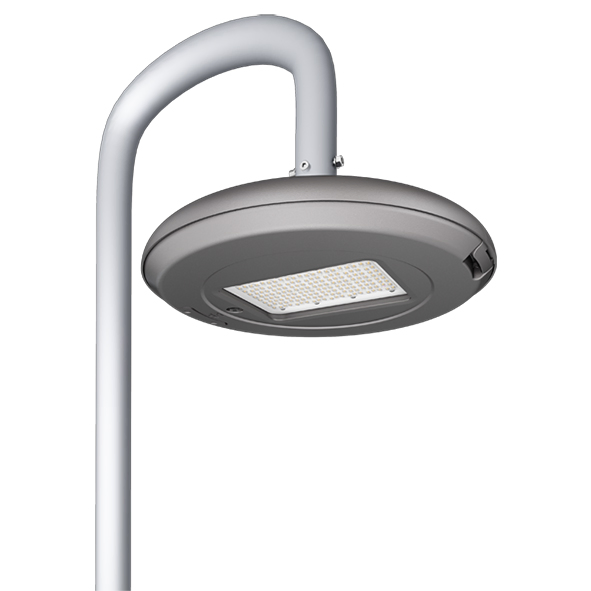

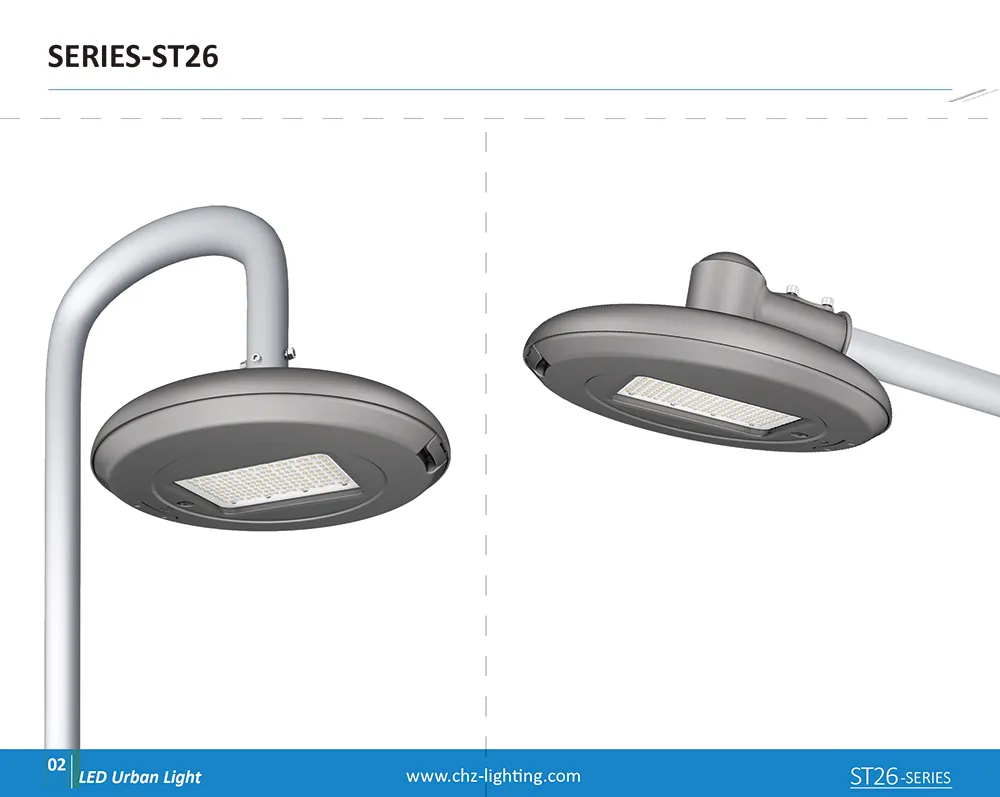

LED Street Light IP67 Garden Light out Door LED Light
Parameter:ModelST26-27WAST26-37WAST26-56WAST26-70WAST26-90WAST26-120WALED typeLumileds 2D 3030Power27W37W56W70W90W120WLED Qty72 PCS96 PCS120 PCS144 PCS168 PCS168 PCSConnection9P8S12P8S15P8S18P8S21P8S21P8SChips Volt48V48V48V48V48V48VChips Current56mA59mA70mA78mA86mA110mAInput Volt100-240V/277V100-240......
Send Inquiry
Product Description
Parameter:
| Model | ST26-27WA | ST26-37WA | ST26-56WA | ST26-70WA | ST26-90WA | ST26-120WA |
| LED type | Lumileds 2D 3030 | |||||
| Power | 27W | 37W | 56W | 70W | 90W | 120W |
| LED Qty | 72 PCS | 96 PCS | 120 PCS | 144 PCS | 168 PCS | 168 PCS |
| Connection | 9P8S | 12P8S | 15P8S | 18P8S | 21P8S | 21P8S |
| Chips Volt | 48V | 48V | 48V | 48V | 48V | 48V |
| Chips Current | 56mA | 59mA | 70mA | 78mA | 86mA | 110mA |
| Input Volt | 100-240V/277V | 100-240V/277V | ||||

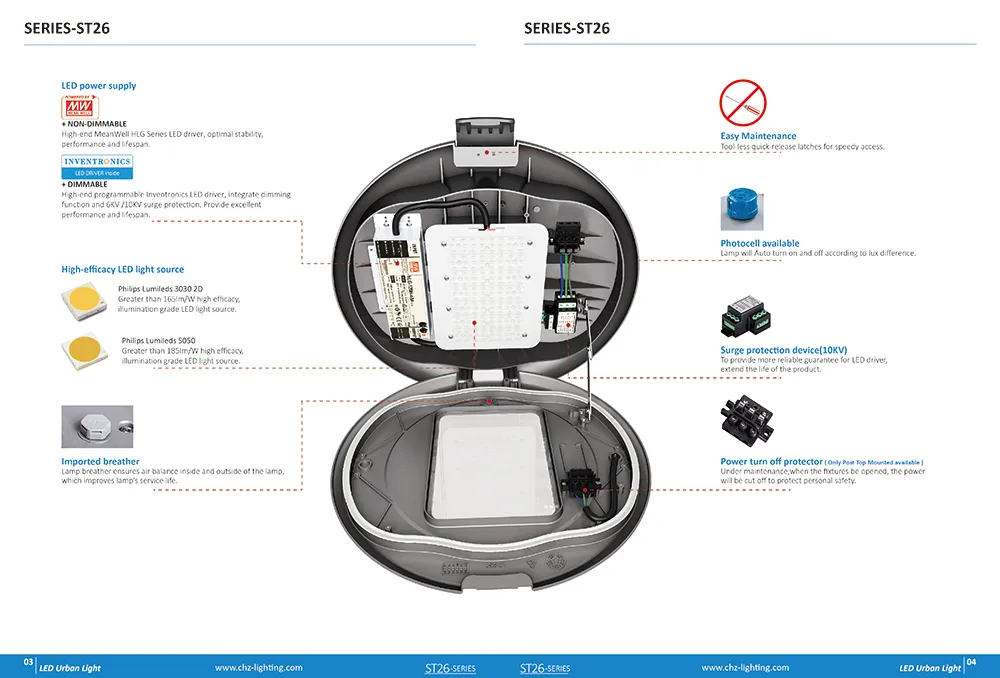

| Driver type | MeanWell or Inventronics | MeanWell or Inventronics | ||||
| Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Lumen efficency | >130 | >130 | >130 | >130 | >130 | >125 |
| Color temperature | 3000K/4000K/5000K/5700K | 3000K/4000K/5000K/5700K | ||||
| Color rendering | >70 | >70 | ||||

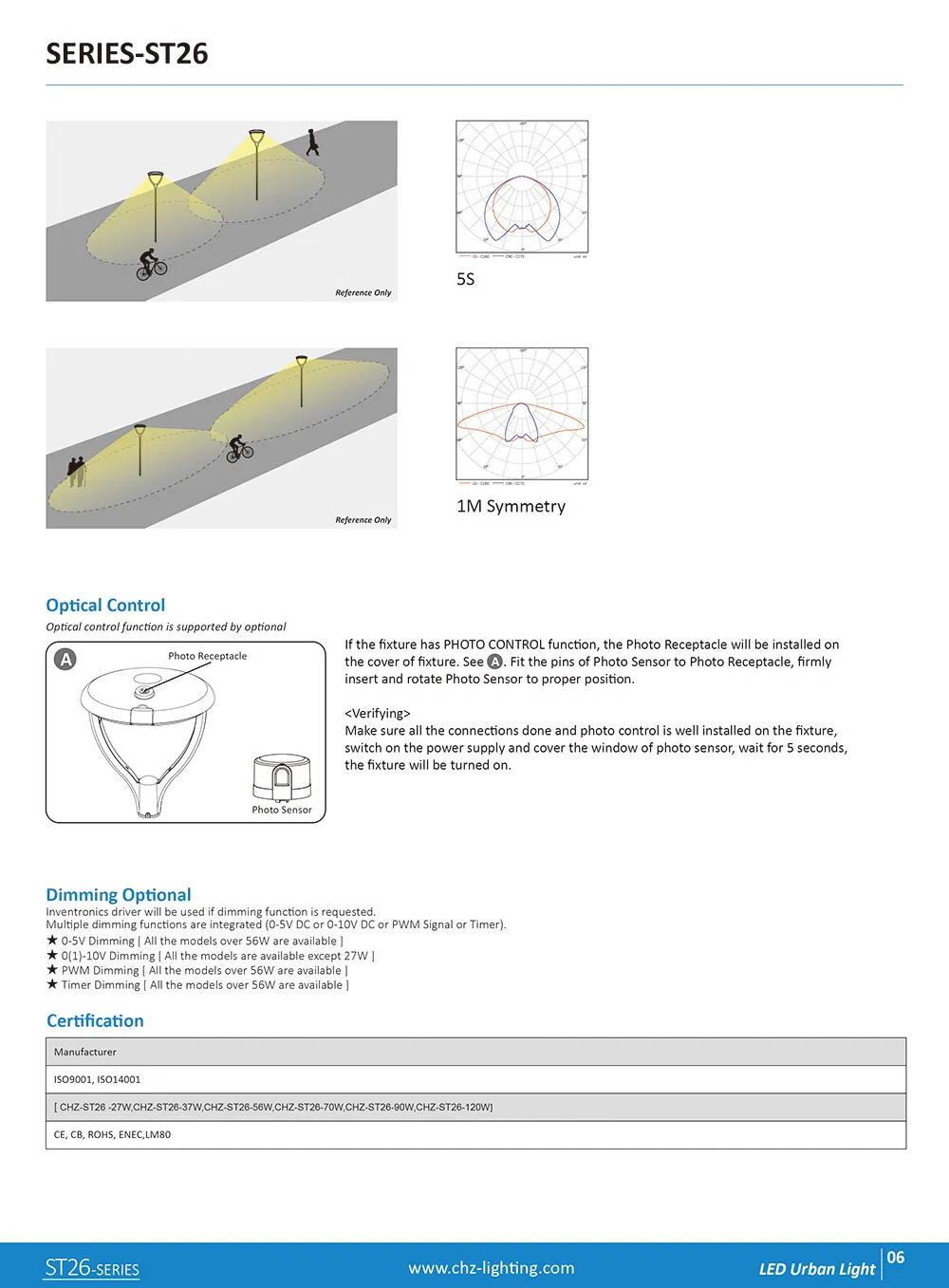

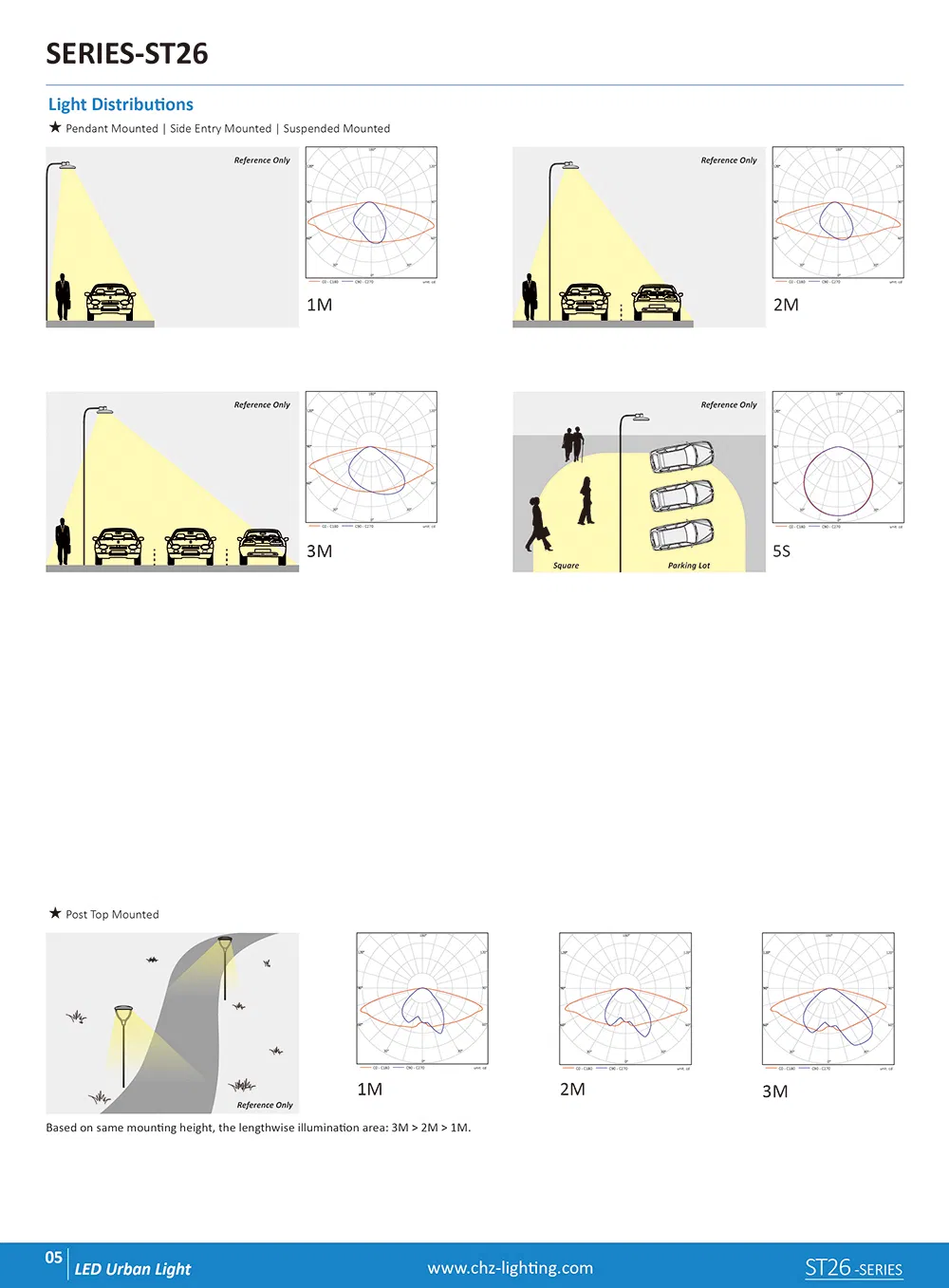

| Beam angle | 1M / 2M / 3M / 5S / 1M Symmetry | 1M / 2M / 3M / 5S / 1M Symmetry | ||||

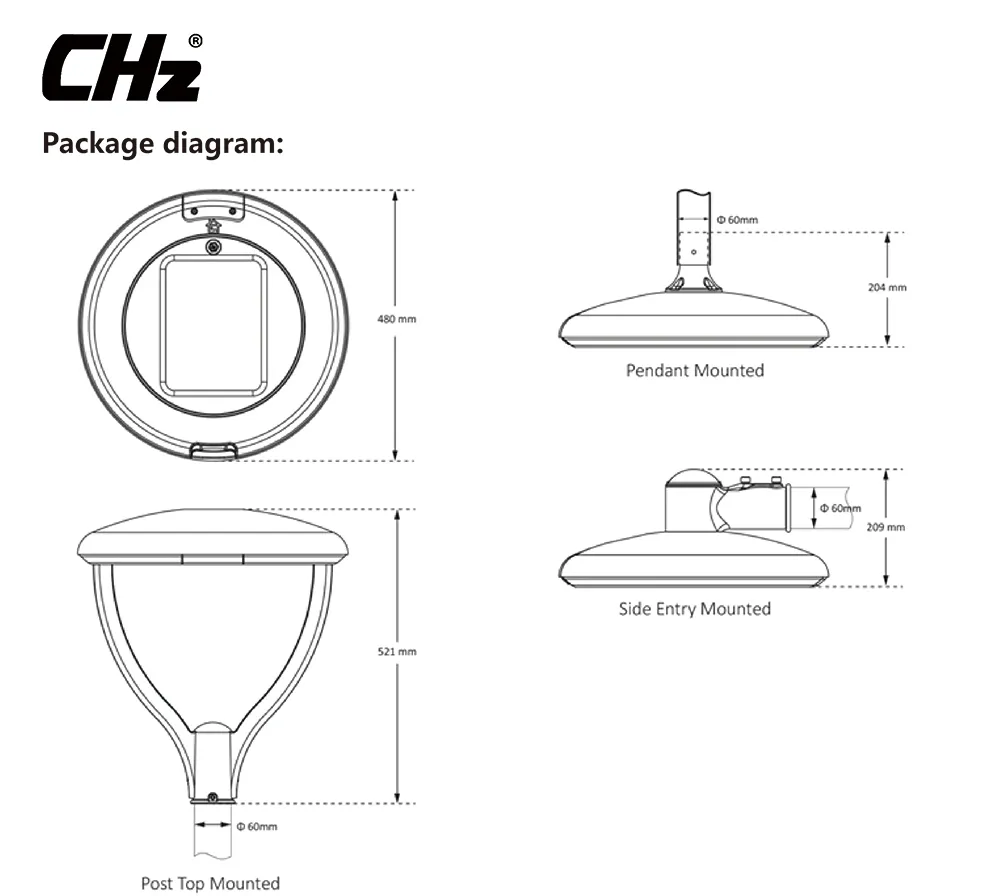

| Product size | φ480XH521 mm | φ480XH521 mm | ||||
| Installation diameter | φ60 mm | φ60 mm | ||||
| Light material | Diecast body AL + PC lens | Diecast body AL + PC lens | ||||
| Protection degree | CLASS I / CLASS II, IP66&IK08 | CLASS I / CLASS II, IP66&IK08 | ||||
| Work temperature | -40ºC~+50ºC | -40ºC~+50ºC | ||||
| Work humidity | 10%~90% | 10%~90% | ||||
| Lifetime/Warranty | 50,000H / 5years | 50,000H / 5years | ||||
| Quality Certification | ENEC, CB, ROHS, ISO9000, ISO14000 | |||||
