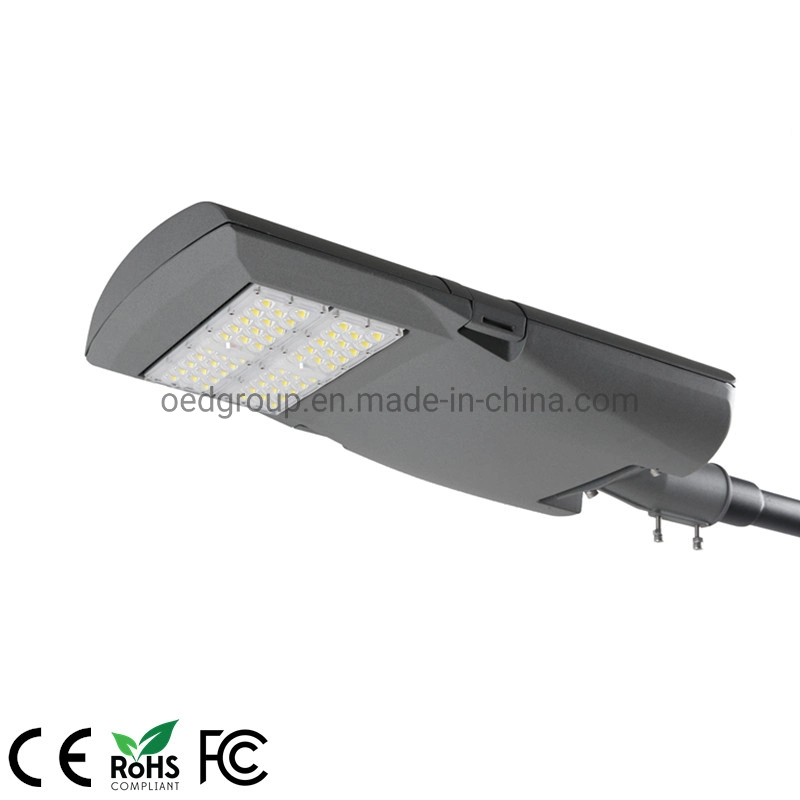

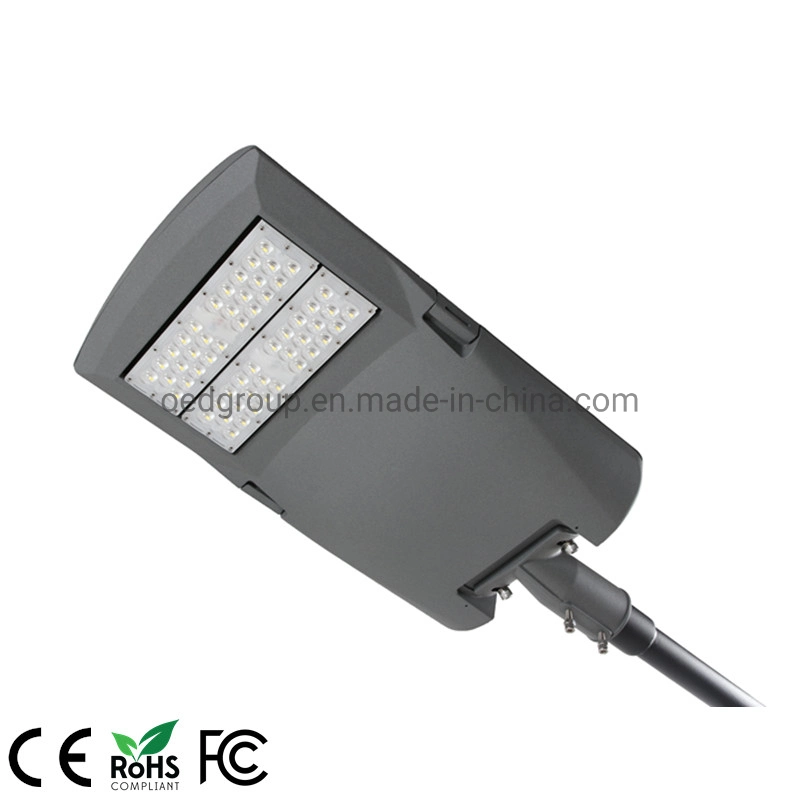

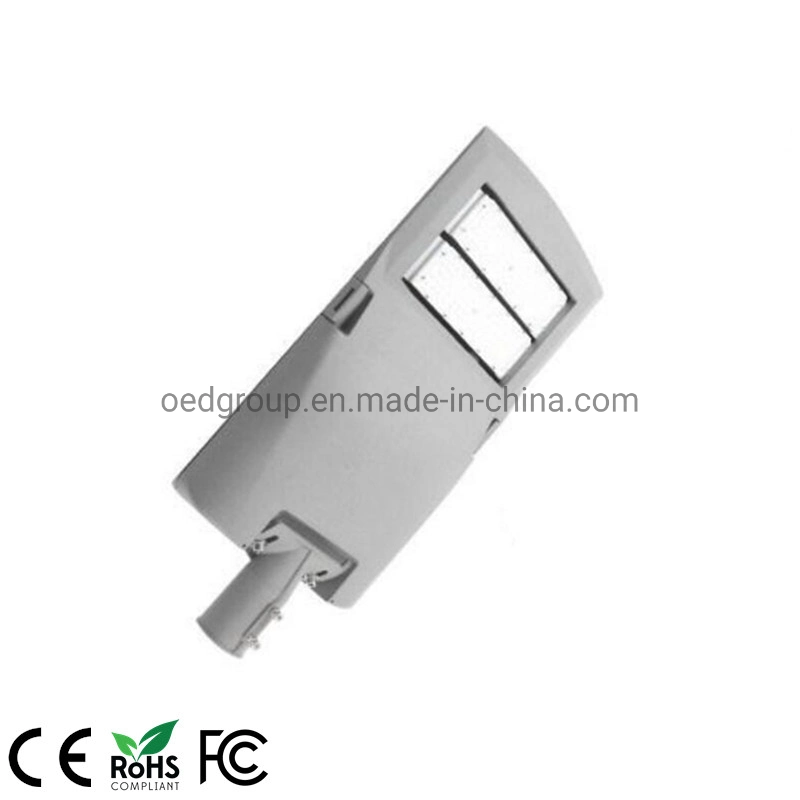

100watt LED Pedestrian Lighting Inventronics Driver 5 Years 120lpw IP65 Outdoor Street Light
IP65 outdoor 5 years warranty IP65 LED Roadway Lighting 100W High Way LightingFeatures:© IP65 or IP66 waterproof / dust proof / explosion proof / IK09 © Aluminum shape good at heat dissipation © The lamp post can be adjusted to plus or minus 15 degrees, it can also be installed vertic......
Send Inquiry
Product Description
IP65 outdoor 5 years warranty IP65 LED Roadway Lighting 100W High Way Lighting
Features:
© Ra>80 / SDCM<6
Features:

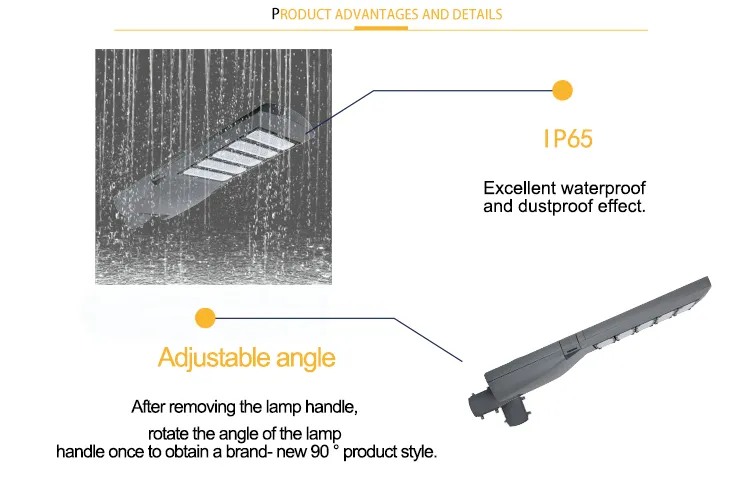

© IP65 or IP66 waterproof / dust proof / explosion proof / IK09

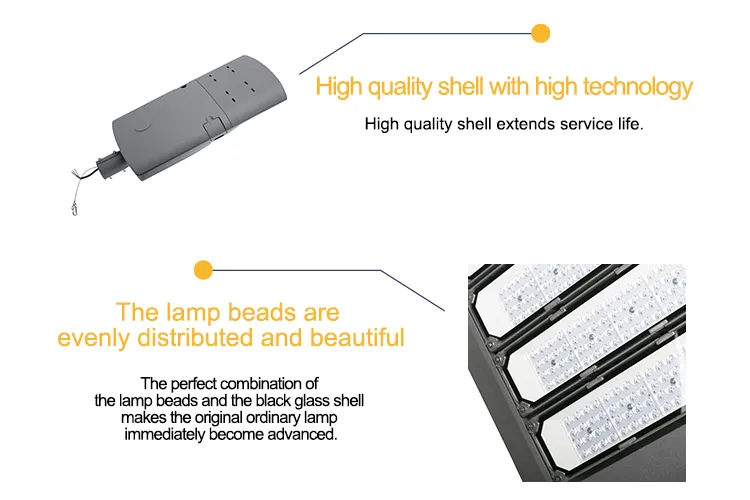

© Aluminum shape good at heat dissipation

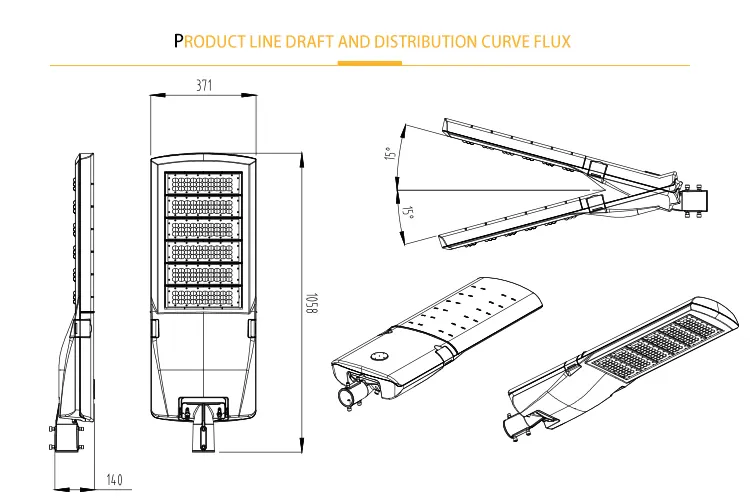

© The lamp post can be adjusted to plus or minus 15 degrees, it can also be installed vertically
© Ra>80 / SDCM<6
© 100,000 times switching cycle
© Total harmonic distortion(THD)<10%

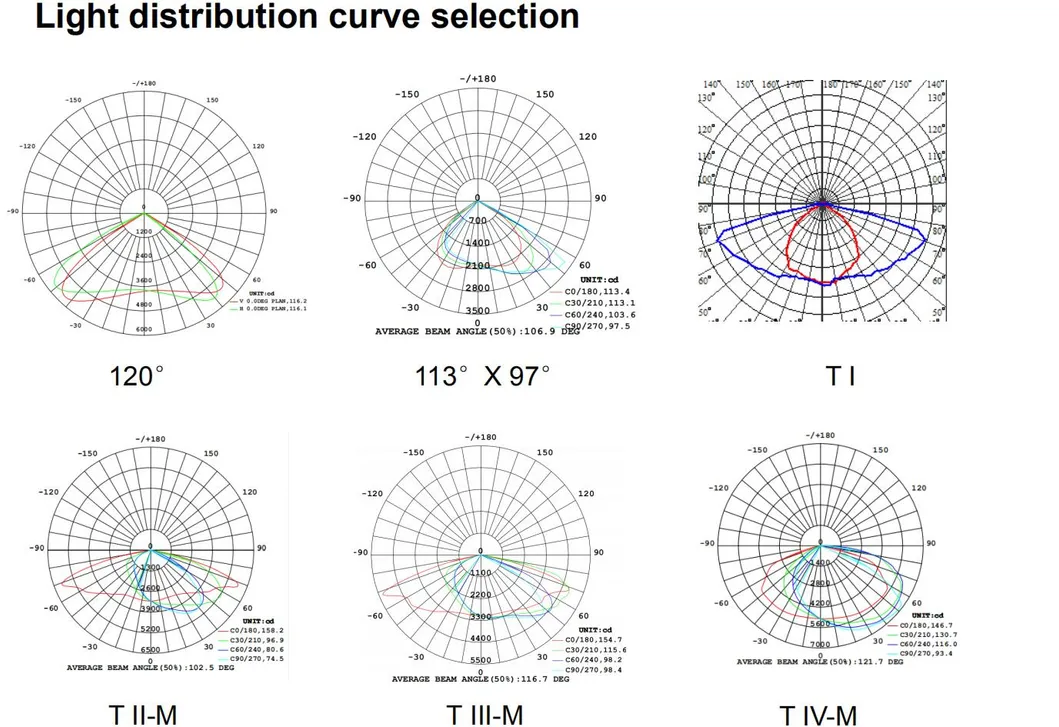

© Excellent post light control design, the whole lamp can achieve T II-M, T III-M, which is our advantage
© Pass 3G vibration test
Applications:
Applications:
It is mainly applied to the road lighting of urban expressway, secondary trunk road, branch road, factory, school, garden, various residential communities and courtyards. The installation height is 6-13mts and the installation
torque is 16Nm.

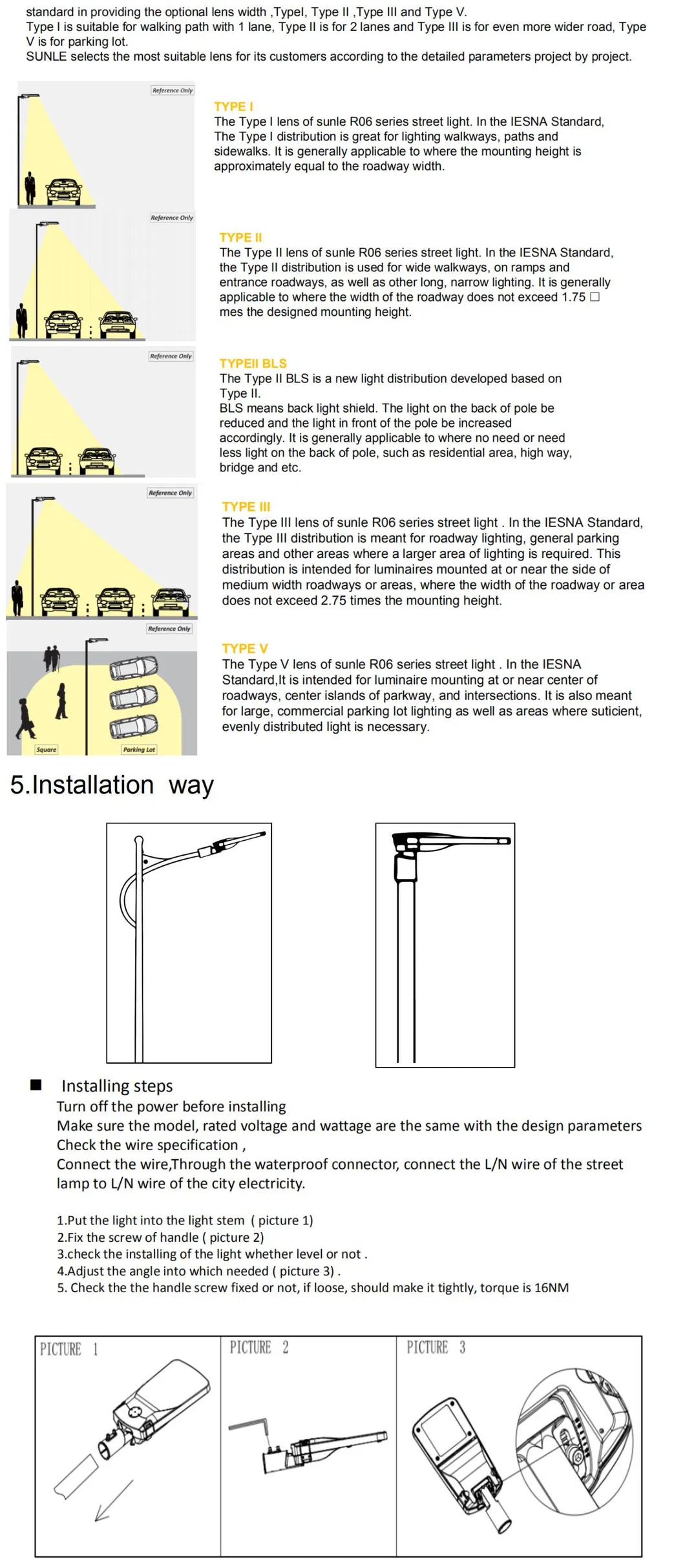

Installing steps:
Turn off the power before installing;
Make sure the model, rated voltage and wattage are the same with the design parameters;
Check the wire specification;
Connect the wire,Through the waterproof connector, connect the L/N wire of the street;
lamp to L/N wire of the city electricity.
1.Put the light into the light stem ( picture 1)
2.Fix the screw of handle ( picture 2)
3.check the installing of the light whether level or not .
4.Adjust the angle into which needed ( picture 3) .
5. Check the the handle screw fixed or not, if loose, should make it tightly, torque is 16NM
