3 Years Warranty Applied in 50 Countries ISO Ce Certificated 30W Solar Powered Energy LED Street Lights Price List
SpcificationsIntegrated Solar Street light (30W)Model: HXXY-ISSL-30Solar panelMax power18V60W (mono-crystalline silicon)Life time25 yearsBatteryTypelithium battery 12.8V/24AHLife time5 yearsLED Lamp ......
Send Inquiry
Product Description

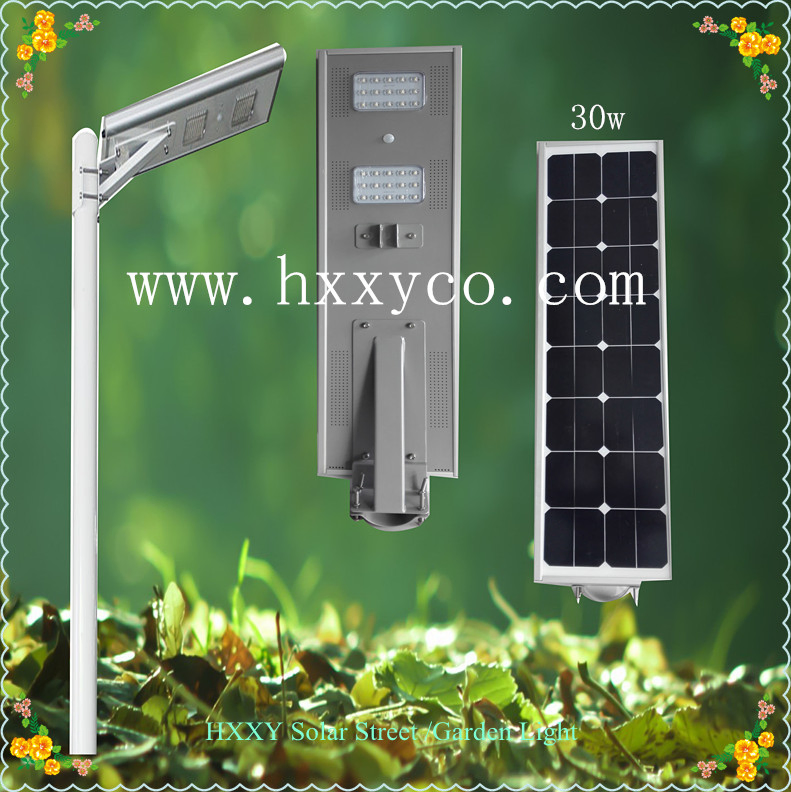

| Integrated Solar Street light (30W) | Model: HXXY-ISSL-30 | |
| Solar panel | Max power | 18V60W (mono-crystalline silicon) |
| Life time | 25 years | |
| Battery | Type | lithium battery 12.8V/24AH |
| Life time | 5 years | |
| LED Lamp (with PIR sensor) | Max power | 12V 30W |
| LED chip brand | Bridgelux from USA with high brightness | |
| Lumen (LM) | 3000-3300lm | |
| Life time | 50000hours | |
| Viewing Angle | 120° | |
| by sun | 6 hours (with enough strong shine) | |
| Discharge Time | Saving power mode | > 24 hours, 3 rainy days backup |
| Working Temperature | Range( ºC ) | -20ºC~+70ºC |
| Colour Temperature | Range(k) | 6000k-6500k |
| Mounting Height | Range (m) | 7-8m |
| Space Between Light | Range (m) | 25-30m |
| Lamps Material | aluminium alloy | |
| Certificate | CE / ROHS / IP65 | |
| warranty period | 2years | |
| Packing & Weight | Product size | 1130*300*150mm |
| Product weight | 16.5kg | |
| Packing box | Neutral Carton Box | |
| Carton size | 1200*370*210 mm | |
| Q'ty/ctn | 1pcs/ctn | |
| GW.for carton | 17.5kg | |
| Packs Containers | 20' GP | 330pcs |
| 40' GP | 660pcs | |

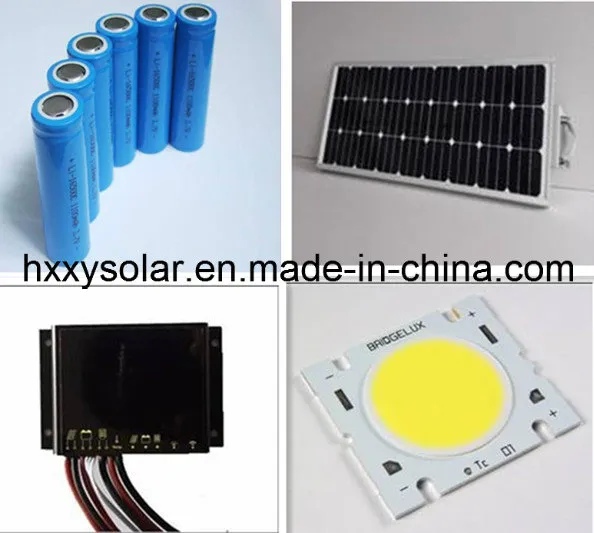

Solar Panel
0 energy consumption!
Only by sunlight,high efficiency monocrystalline silicon.
The new equipment has been widely using the latest imported Sunpower solar panel, whether you have entered the era of consumption with 0 street USA imported Sunpower solar panels, a life span of 25 years, 22% photoelectric conversion rate. Toughened glass material, antioxidation, corrosion resistance, good tightness,high hardness, low wear.
BRIDGELUX LED
High brightness, low attenuation,low energy consumption, long service life, strong antistatic ability.
Use of America imports of high-quality silicone glue encapsulation, low lumen,long service life; imported qualified chip, the United States intematix fluorescent powder, quality assurance for 100000 hours.
BATTERY
Lithium iron phosphate battery.
High temperature performance is good, large capacity, long life,no memory effect, light weight, environmental protection.
High temperature of 70 DEGºC, the structure of the battery safety, intact;internal or external damage, the battery is not burning, not explosive,the best security; cycle life is wonderful, life of up to 8 years, thedischarge capacity is more than 90%; over discharge to zero volts no damage.
MPPT
Win the engineering quality and construction period to create conditions.
The problem of self, recoil, overshoot protection When the controller receives natural factor influence or artificial operation was not at that time, can make the controller self-test; anti recoil,overshoot protection,waste and damage to the system in order to avoid electric energy.
Advantages
Δall in one/ integral design, no need extra cable, easy to ship, install and maintance.
Δ100% charge and discharge cycle test
Δgreen energy,environment friendly
Δwith motion sensor+time light controller +not heavy(light)
Δ3-5 rainy days
Δ2years warranty
Δwaterproof +dustproof +heatproof +light weight

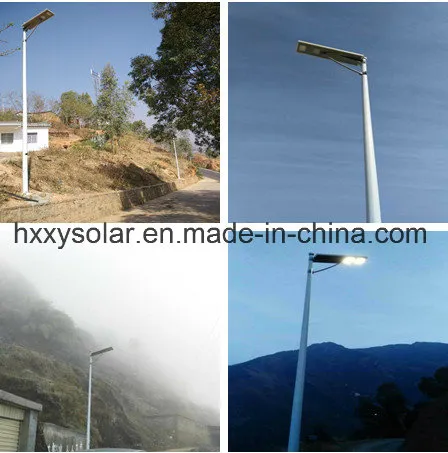

The Applications
Our Company -- Professional Solar LED Street Light Manufacturer
Shenzhen hxxy technology co., ltd. is a new leading manufacturer and technology provider of all in one integrated solar street light, integrating R&D, manufacture and export business. We also provide OEM&ODM service for our customers all over the world. All of our products passed CE, ROHS, IP65.
Our staff of sales and technical support is available to help you in selecting the right protection for your application as well as to provide you with samples of our products for evaluation. At HXXY, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering.
Our Services
1, Reply your inquiry in 24Hrs.
2, Feedback of complaint in 24Hrs.
3, Exclusive agents in local country are welcomed.
4, High quality control with CE, ROHS, FCC, UL approval.
5, Manufacturer specialize in led street lighting and controller.
6, 80000 kits every month to guarantee the best delivery time.
7, Powerful R&D ability---All products belong to our private mold and own design.
8, Three or five years warranty policy, up to now, our product defective rate is under 0.5%.
R:Fix the product with a light angle ,keepthe solar panel face to the sky and make sure no shelter on the sunface of solar panel.
If you found the light brightness is down or total off, how to handle?
R: It prove the power of solar light battery is not enough to support normal lighting, so you need have 2-3 goods sunlight charged, especially in Winter season, the sunlight intensity is much below the standard sunlight (1000kw/m2), it may need more longer time to charge.
what's the payment tarms?
R:we could caccapt byT/T or Westem Union we believe what is more payments tarms would be caccapted in the future.
Special note: We do not bear any freight cost if product was damaged by human during warranty.But the freight(back and forth ) is for our account if prouct was damaged by itself.We will provide free parts to replace during warranty.
Dear Friend,Since you come to the end,why not thinking about our products,looking forward to your reply!
