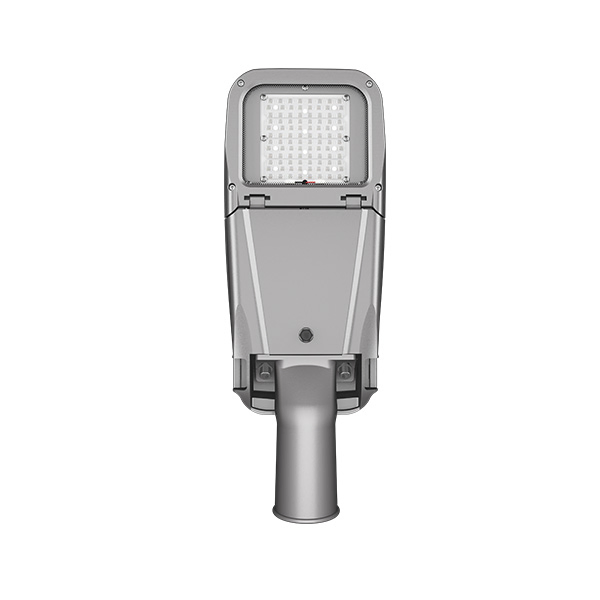

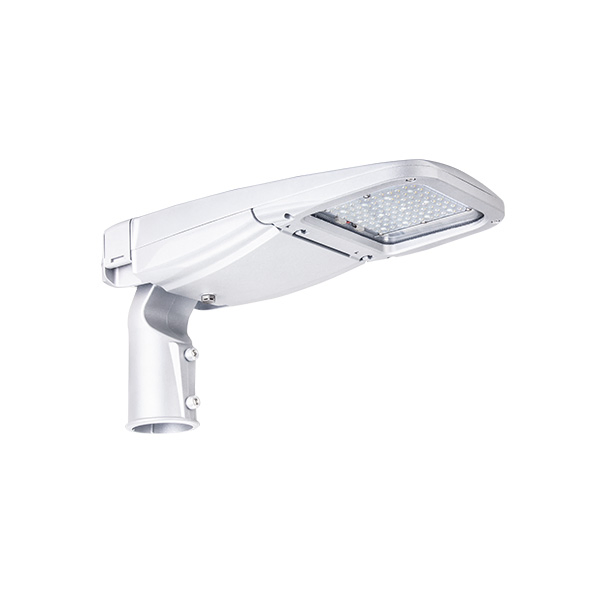

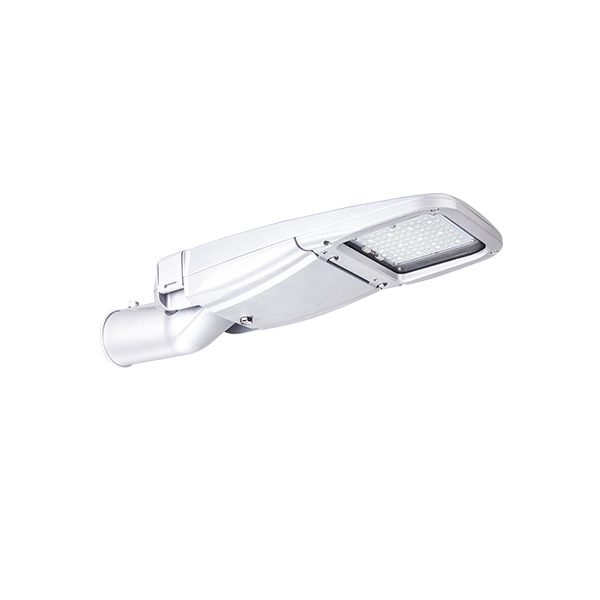

55W 90- 305VAC Toolless LED Street Lamp with Meanwell Driver
Product Description55W 90-305VAC Toolless LED Street Lamp with Meanwell DriverPRODUCTION INFORMATIONSpecificationsModelZGSM-LD55KS Driver BrandMeanwell HLG series/ InventronicsNorminal Wattage55WLED Chip Quantity96pcsInput Voltage100-240/277VACPower Efficiency>90%Power Factor>0.95Lamp Rated L......
Send Inquiry
Product Description
Product Description
55W 90-305VAC Toolless LED Street Lamp with Meanwell Driver
PRODUCTION INFORMATION
PRODUCTION INFORMATION| Specifications | |
| Model | ZGSM-LD55KS |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Norminal Wattage | 55W |
| LED Chip Quantity | 96pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >125 lm /w |
| Lamp Rated Lumen output | 6875 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000, 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 10,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| IP Rating | IP66 with test report |
| IK Rating | IK08 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM-80 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 614 x224x135mm |
| Fixture Weight | 6 kg /13.2 lbs |
| Packing Dimension | 680 x370x170mm |
| Packing Weight | 7.1 kg |
