80W 100W Freeways LED Street Light for Suburb Road Lighting
80W 100W Freeways LED Street Light for Suburb Road Lighting100W LED Street light Specifications:Outdoor LED street lighting lamp 100WItem No.:RB-ST690-100WInput Voltage: AC 100~240V/ 50HZ-60HZLED Power:50W *2pcs LED Chip: Cree / LGLED Working Voltage:30-36V/DCLED Luminous Flux Warm White, Pure Whit......
Send Inquiry
Product Description
80W 100W Freeways LED Street Light for Suburb Road Lighting
100W LED Street light Specifications:
Outdoor LED street lighting lamp 100W
Item No.:RB-ST690-100W
Input Voltage: AC 100~240V/ 50HZ-60HZ
LED Power:50W *2pcs
LED Chip: Cree / LG
LED Working Voltage:30-36V/DC
LED Luminous Flux Warm White, Pure White.Cool White
LED Street light Viewing Angle: 140 degree
Color Temperature Warm White 3000K~3500K
Pure White 5500K~5700K,Cool White 6500K~6700K
Luminous Flux:9000LM(6500K)
Color Rendering Index : Ra≥78
Working Temperature: 40oC~50oC
IP Grade: IP65
LED Street Lighting Body Size: 692*330*140mm
Working Life-span: 50000 H
Certificate CE & RoHS TUV
| 100W LED Industrial Light Main Technical Parameters | |||
| Item No.: | RB-STC-100W | ||
| Input Voltage: | AC 100~277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Driver: | Meanwell HLG | ||
| Led Chip: | CREE Xpe | ||
| Power Factor: | >0.96 | ||
| Power Efficiency: | >90% | ||
| LED Power | 100W | ||
| LED QTY: | 72 pcs | ||
| LED Working Voltage: | DC 30~36V | ||
| System Consumption: | 103W | ||
| LED Luminous Flux | Warm White | 9400LM | |
| Pure White | 9650LM | ||
| Cool White | 9800LM | ||
| Viewing Angle: | 140 / 80 degree | ||
| Center Illuminance | Height 10M | 20.5LUX | |
| Height 20M | 5.2LUX | ||
| Height 30M | 2.3LUX | ||
| Illuminance Area | Height 10M | Dia.1834CM points visible | |
| Height 20M | Dia.3669CM points visible | ||
| Height 30M | Dia.5504CM points visible | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 5000K~5700K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+ | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -30ºC~55ºC | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mthree line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Certificate | CE/UL/ROHS | ||
| Producs Size: | 587*292*98mm | ||
LED Street Lights Features :
1. Higher efficiency and energy-saving compared to conventional fluorescents with equal bright.
2. No RF interference, no buzzing noise, no UV radiation.
3. No fluorescent flickering.
4. No hazard of mercury or lead entering the environment.
5. maintenance free, easy installation.

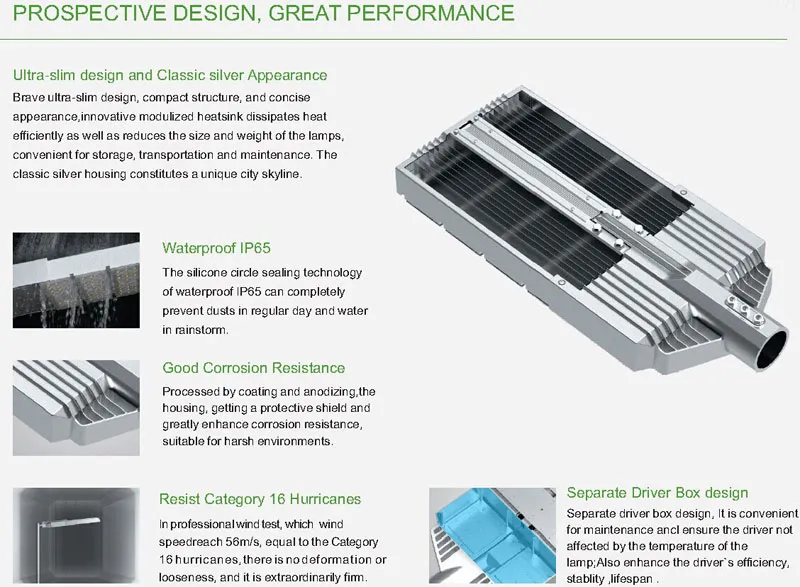

6. Solid- state, high shock/ vibration resistant
7. Adopting low- pressure constant current power supply, no glare,
8. Milky glass cover or PC cover with transmission rate at 92%.

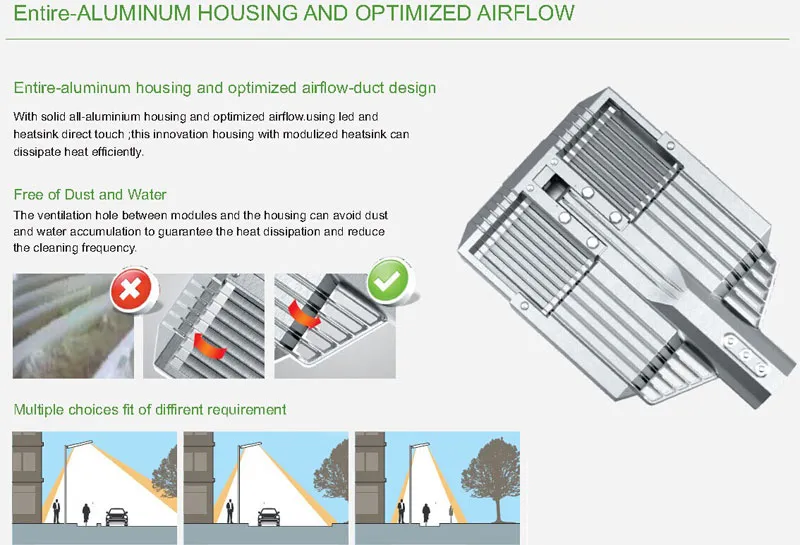

9. Good quality and good heat dissipation.

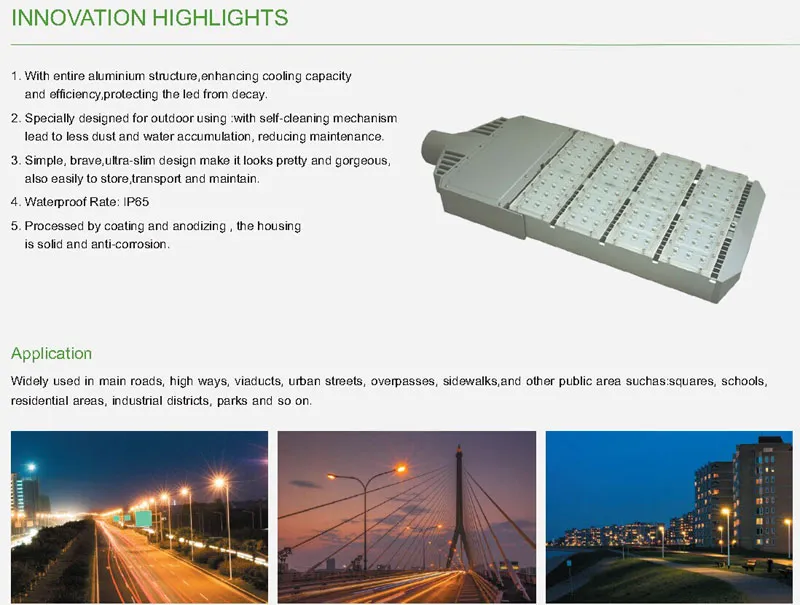

LED Street Light Applications:
High way, city main street, slip street, fast lane, residential street, municipal roads,
gas stations, parking lot, , parks, yards, inhabitancy area, factories and some other places where need lighting
Led street light introduction:
Rayborn's Good Service:
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
FAQ:
Q1: What is the warranty of our LED street lights?
A: We offer five years guarantee for our LED street lights,and we will offer you based on your requirement.
Q2: What color temperature you can choose?
A: We offer LED street lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do our led street lights can be used in your country?
A: Yes, Our LED street light has wide input voltage AC100-240V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limited?
A: We don't have MOQ,even only one piece LED street light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
Pls don't feel hesitate to contact us if our products meet your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
