90- 305VAC Street LED Light 20W-60W
90-305Vac Street LED Light 20W-60W1. Major advantages of our Kmini Series LED street light:1. LUXEON 3030 2D luminous source with LM-80 report.2. High Reliable Inventronics with 5 Years Warranty.3. Over then 100,000 hours operation lifetime.4. Have TypeII Medium5. IK10&IP66.6. Have UL DLC ROHS, ......
Send Inquiry
Product Description

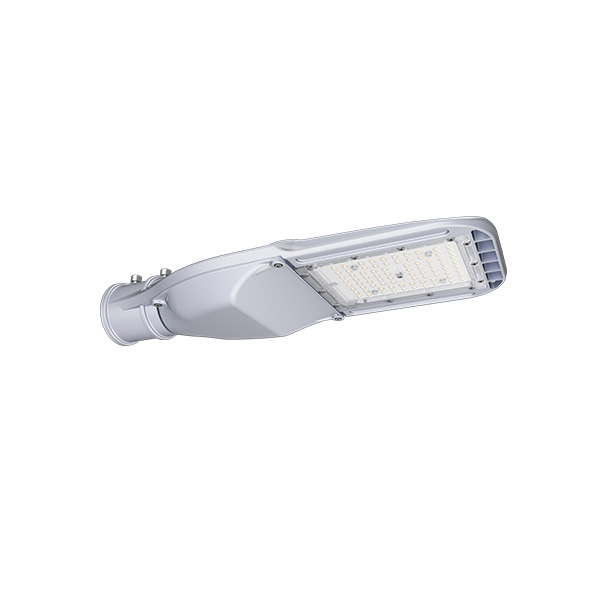

90-305Vac Street LED Light 20W-60W
1. Major advantages of our Kmini Series LED street light:
1. LUXEON 3030 2D luminous source with LM-80 report.
2. High Reliable Inventronics with 5 Years Warranty.
3. Over then 100,000 hours operation lifetime.
4. Have TypeII Medium
5. IK10&IP66.
6. Have UL DLC ROHS, CE certificated
7. Patent product with 7 patent certificates.
8. 5 years Warranty.
9. Wide voltage Input: 100-240V/277V, 12V/24VDC
2. Data Sheet
| Specifications | |
| Model | ZGSM-LD28Kmini |
| LED Brand | LUXEON® 3030 2D |
| Driver Brand | Inventronics Driver |
| Norminal Wattage | 28W |
| LED Quantity | 40 pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >135lm/w |
| Lamp Rated Lumen output | 3780lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K,4000K,5000K,5700K |
| Photometric Type | Type II Medium; |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10with test report |
| Certification | CE,ROHS,ENEC,CB,LM-79,LM-80 |
| Optional Function | 1-10V |
| Photocell Control | |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 447x179 x77 mm |
| Fixture Weight | 2.1 kg |
| Packing Dimension | 465 x200 x100 mm |
| Packing Weight | 2.6 kg |

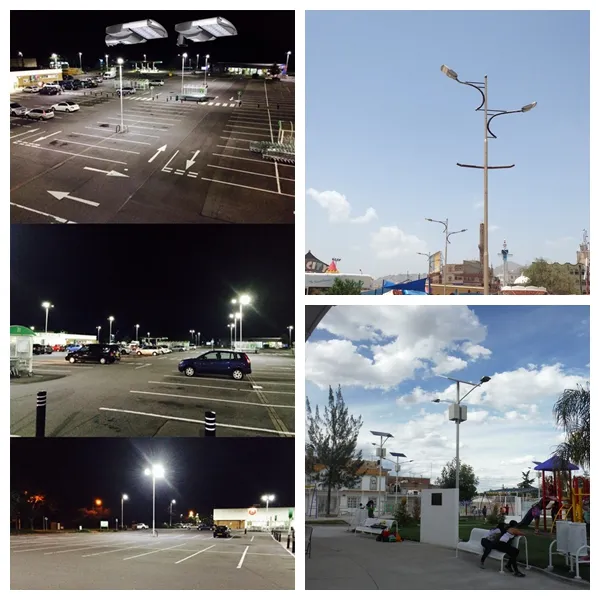

3. Application
4. Factory show
5. Exhibition show
6. Certificate Show
7. Contact us
- Reply your inquiry in 24 working hours.
- Customized design is available, OEM and ODM are welcomed.
- Delivery the goods to our customer all over the world with speed and precision.
- Offer customer the lowest price with high quality product.
- We can supply C/O(Certificate of Origin), saving approx 20% import duty.
