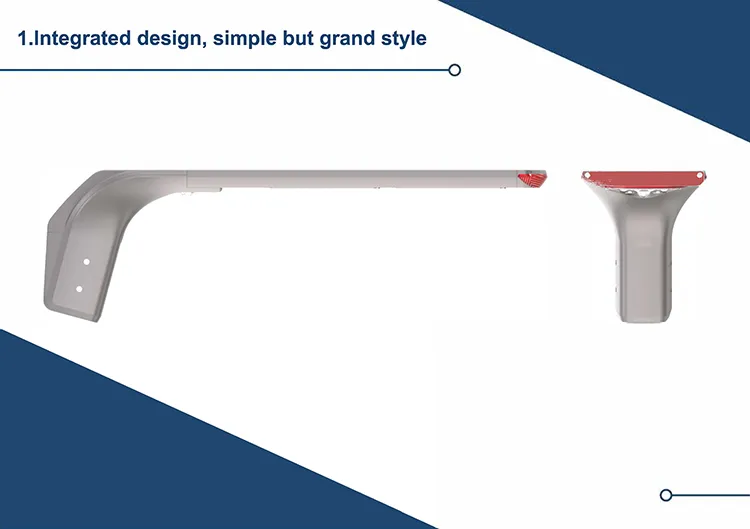

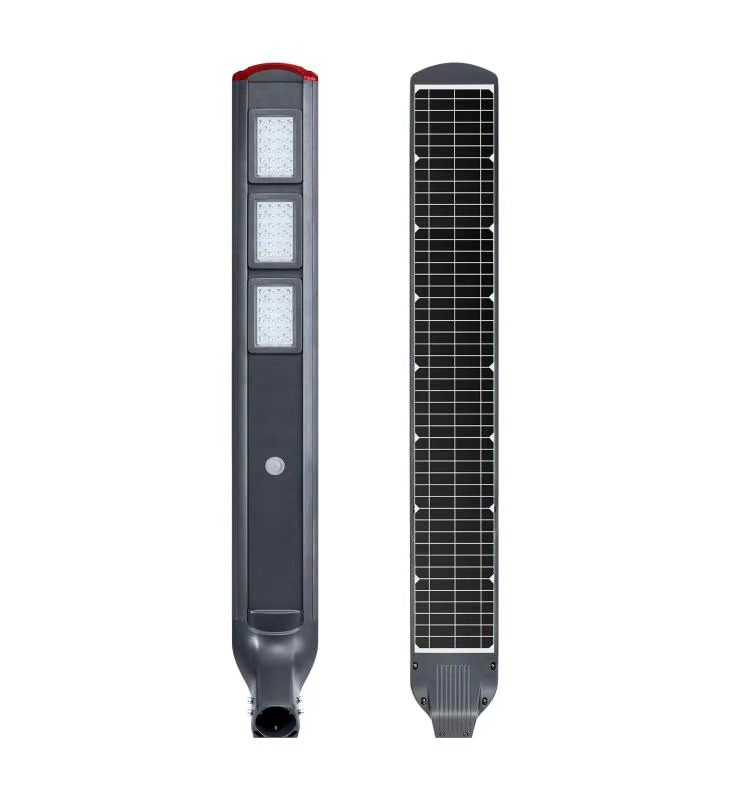

Competitive advantages of CHZ lighting outdoor solar LED street lights all in one CHZ-IST9:1.The overall design is compact and the structure is novel; the protection level of the whole lamp is high, reaching IP65;2. High quality high lumens 160lm/w (smd5050) .The installation method is the same as t......

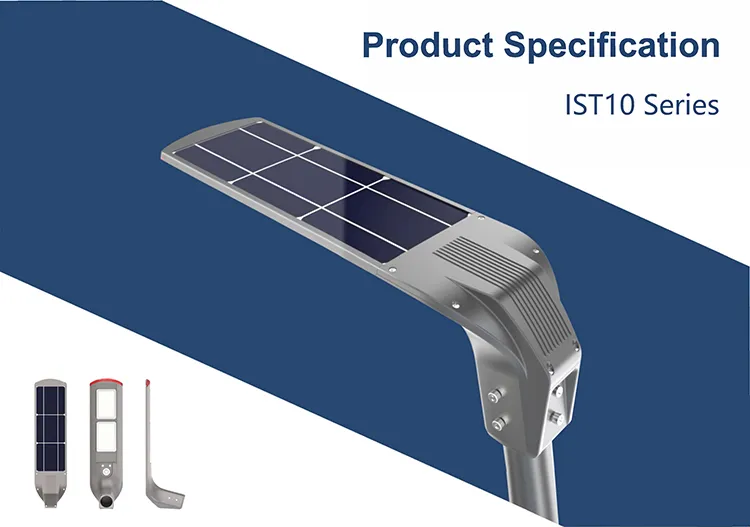

Model | IST10-1515 | IST10-2020 | IST10-3030 | IST10-4040 |
Product specifications | ||||
LED light source | 15W | 20W | 30W | 40W |
Lamp bead type | SMD3030 | |||
Lamp beads particles | 24PCS | 48PCS | 72PCS | 96PCS |
Panel type | Monocrystalline silicon | |||
Panel power | 15W/18V | 20W/18V | 30W/18V | 40W/18V |
Lithium battery type | Ternary lithium | |||
Lithium battery capacity | 58WH/11.1V | 115WH/11.1V | 173WH/11.1V | 231WH/11.1V |
Induction method | Infrared sensor | |||
Product Size | 760x180x220mm | 1080x180x220mm | 1410x180x220mm | 1730x180x220mm |
Light output | ||||
Power source | 15W | 20W | 30W | 40W |
Whole lighting effect | >140 lm/W | |||
Beam angle | 140°x70° | |||
Color temperature | 4000~6500K | |||
Light output setting | Default setting: 2H- 100%; 4H- 100%@someone, 50%@no one; 6H- 100%@someone, 30%@no one; can also be set according to customer requirements | |||
Working time under full power (100%) state | 2.0H | |||
Working time under energy-saving state (30%) | >36H | |||
Time required to fully charge under low voltage | 6-8H | |||
Turn on the light sensor threshold | 15 LX | |||
Environmental parameters | ||||
Operating temperature | -30ºC~60ºC | |||
Storage temperature | -20ºC~45ºC | |||
Installation suggestions | ||||
Installation height | 3~5m | 4~6m | 5~7m | 6~8m |
Light pole distance | 12~15m | 12~24m | 15~21m | 18~24m |

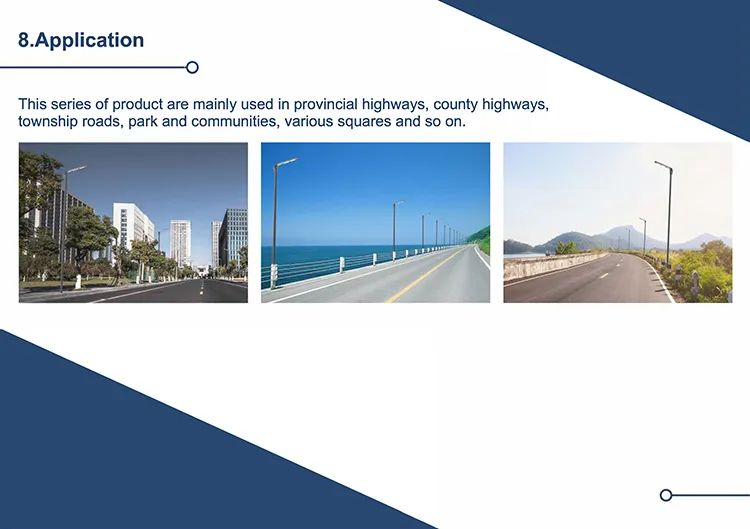

Outdoor solar LED street light application:
1. Main road and elevated road lighting
2. Parking and park lighting.
3. Road and street lighting.
4. Bridge and school lighting.
5. Square, garden and other outdoor lighting.
CHZ Lighting Company view:
Shanghai CHZ Lighting was established in 2010 and is a high-tech enterprise engaged in the development, production, and sales of lighting products. The company has passed ISO9001: 2015 quality system certification, ISO14001: 2015 environmental management system certification, and ISO45001 occupational health and safety system certification.
In terms of products, CHZ Lighting focuses on LED outdoor lighting and high-power indoor lighting. The company has always adhered to the high standards of "leading technology and leading quality", constantly developing new products, leading the trend of intelligence, insisting on the use of high-quality raw materials and advanced production technology, and focusing on the manufacture of each lamp. The main products have passed TUV, ENEC, CB, ROHS, UL, DLC, CE, SAA, and other international standards certification.
In terms of service, the entire service process of CHZ lighting is rigorous and standardized; the sales team is experienced and full of vitality, from inquiry, design, quality management, mass production, transportation, after-sales and gift services to be patient, enthusiastic, professional and timely.
In terms of social responsibility, CHZ actively donated money to charitable organizations such as Shanghai Jiading Nanxiang Welfare Institute and Tibet Children's Welfare Foundation, and was named "Caring Enterprise in Jiading District, Shanghai". In February 2020, the company boss personally drove to Hubei to donate masks, disinfectants, protective clothing, and other materials and was awarded the honor of "Advanced Individual in Fighting COVID-19" by Shanghai. CHZ is not only responsible for products, but also an excellent company responsible for society, the country, and the future.
Payment terms:
1. Payment method: wire transfer, sight letter of credit, Western Union remittance, Alipay
2. Samples can be delivered within 5-7 working days; Order: 10-20 days
3. Quote shipping according to your requirements
4. Freight Port: Shanghai, China
5. Offer discounts based on order quantity
Solution service process:
Understand the overall needs of customers, recommend related products and corresponding power, customers provide basic engineering information (taking road lighting as an example: customers need to provide road width, pole height, pole position, pole distance, average illumination requirements, etc.). Designers use Dialux simulation to design lighting effects and offer a variety of options for customer selection.
Shanghai CHZ LIGHTING always follows the standardization rules and implements strict production processes to ensure product quality, thus saving time and cost for both parties and bringing maximum benefits to customers.

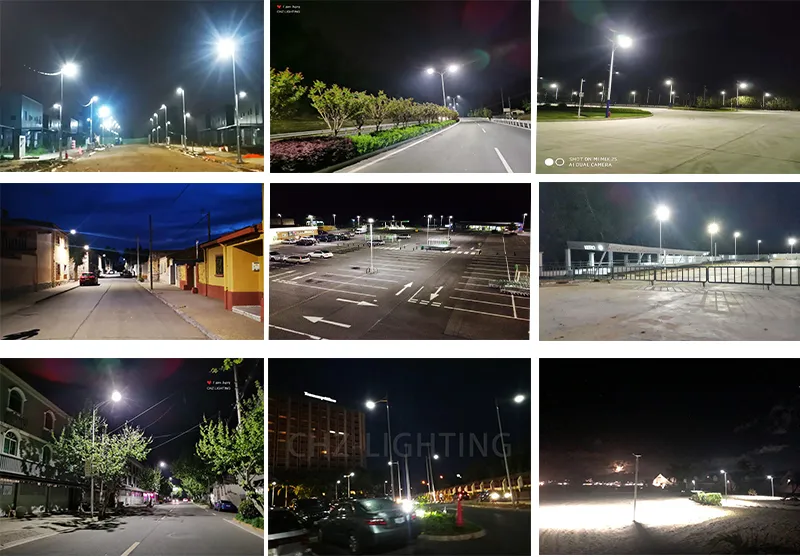

CHZ real case show of led road lighting :
FAQ:
1. What is a general business process?
Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service
2. What is the warranty?
A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.
3. What is the payment period?
A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know which sty how many LED Street Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .
7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.
8. We don't know how to install,can you help?
Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.
9. How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.
10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the facebook homepage .
