              Chz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket
              • Chz Hot Sales 60W to 250W White Color Module LED Street Light with BracketChz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket
              • Chz Hot Sales 60W to 250W White Color Module LED Street Light with BracketChz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket
              • Chz Hot Sales 60W to 250W White Color Module LED Street Light with BracketChz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket
              • Chz Hot Sales 60W to 250W White Color Module LED Street Light with BracketChz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket

              Chz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket

              CHZ hot sales 60w to 250w white color module led street light with BracketCHZ-ST34 FEATURES:1, The overall ultra-thin design,exquisite appearance,elegant and elegant;2, Die-cast aluminum material,hot-dip galvanized and spray-treated,good anti-corrosion performance;3, Modular design,heat dissipatio......

              Send Inquiry

              Product Description

              CHZ hot sales 60w to 250w white color module led street light with Bracket

              Chz Hot Sales 60W to 250W White Color Module LED Street Light with BracketChz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket
              Chz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket
              Chz Hot Sales 60W to 250W White Color Module LED Street Light with BracketChz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket
              CHZ-ST34 FEATURES:
              1, The overall ultra-thin design,exquisite appearance,elegant and elegant;

              2,  Die-cast aluminum material,hot-dip galvanized and spray-treated,good anti-corrosion performance;

              3,  Modular design,heat dissipation effect,protection level up to IP66;

              4,  There are fixed angle handles and adjustable angle handles(0-90 degree adjustable);

              5,  Light controller can be installed to facilitate light control and other intelligent control;

              6,  Using LUMINLEDS SMD 3030 OR SMD5050 light source,and high-performance constant current drive,stable overall performance,high light efficiency,small light attenuation,long service life.

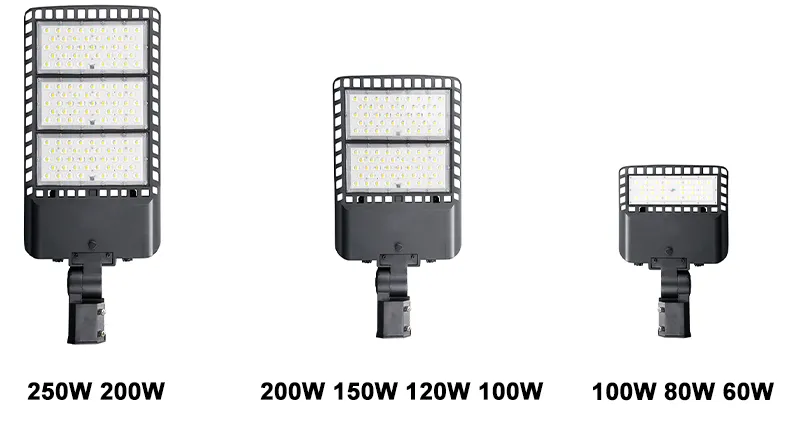

              Specifications of led street light
              Product numberST34-60W1ST34-80W1ST34-100W1ST34-100W2ST34-120W2ST34-150W2ST34-200W2ST34-200W3ST34-250W3
              rated power60W80W100W100W120W150W200W200W250W
              Lamp Bead TypeSMD3030SMD3030SMD3030SMD3030SMD3030SMD3030SMD3030SMD3030SMD3030
              Number of lamp beads112PCS112PCS112PCS224PCS224PCS224PCS224PCS336PCS336PCS
              Serial-parallel14P8S14P8S14P8S14P8S14P8S14P8S14P8S14P8S14P8S
              Light effect>130LM/W
              Color temperature3000K/4000K/5000K/5700K/6500K,based on customer's needs
              Beam angle150x70°
              Color renderingCRI > 70
              Operating Voltage100-277V
              Power factor>0.95
              Drive typeMW, INVENTRONICS or others, according to customer needs
              Dimming methodNormal, 0-10V, PMW, DALI and other intelligent control, according to the actual needs of customers; can also be installed with light controller
              Light body materialDie-cast aluminum lamp body + high transmission PC lens + 304 stainless steel screws

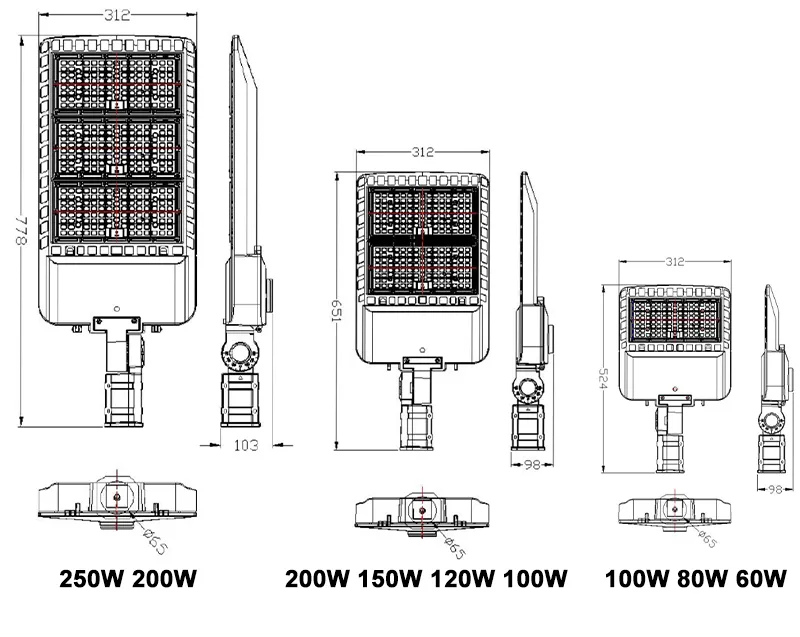

              Product Size524x312x93mm651x312x93mm778x312x93mm
              Installation pipe diameterФ60mm
              Protection classIP66/IK09
              Lightning protection level10KVor20KV
              Operating temperature-30ºC~+60ºC
              Working humidity10%~90%
              Life / warranty50,000hrs/5Y



              Applications of led street light

              Mainly used for street light, including high-speed way and branch way, industry zone and etc.

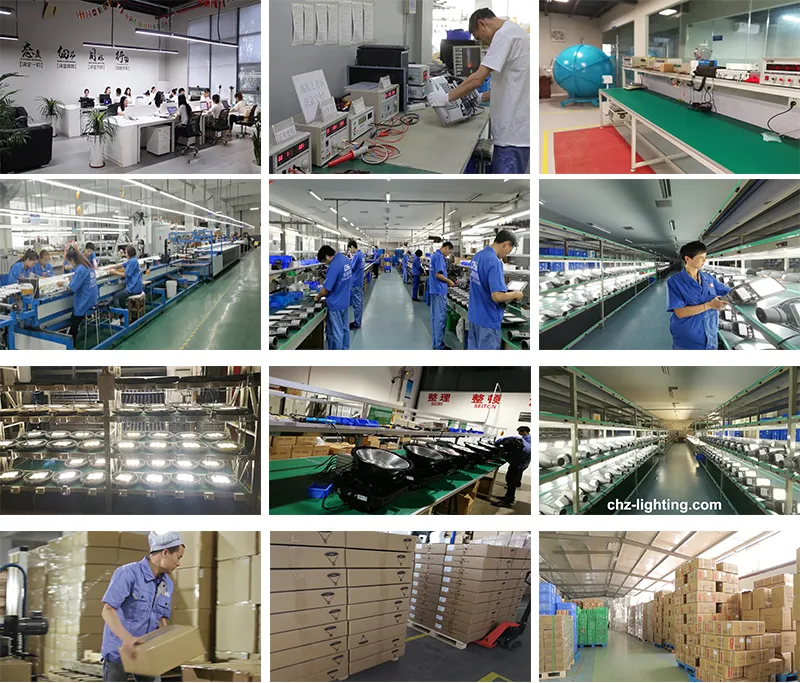

              CHZ Lighting Company view:
              Established in 2010, Shanghai CHZ Lighting Co., Ltd. is a high-tech enterprise engaged in the research, development, production and sales of lighting products.

              CHZ adheres to the standard of "leading technology and leading quality" and has established a joint R&D center with Professor Chen Dahua (Ph.D.) of Fudan University's electric light source department. It continues to develop new products and lead the smart trend. Our products cover industrial lighting, stadium lighting, street lighting and solar lighting. We insist on using high-quality raw materials and advanced production technology to focus on manufacturing every kind of high-quality lamps. Our factory has passed ISO9001: 2015 certification, ENEC, CE. , FCC, ROSH, TUV UL CB certification.
              Chz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket


              Payment terms:
              1. Payment method: wire transfer, sight letter of credit, Western Union remittance, Alipay
              2. Samples can be delivered within 5-7 working days; Order: 10-20 days
              3. Quote shipping according to your requirements
              4. Freight Port: Shanghai, China
              5. Offer discounts based on order quantity


              Solution service process:
              Understand the overall needs of customers, recommend related products and corresponding power, customers provide basic engineering information (taking road lighting as an example: customers need to provide road width, pole height, pole position, pole distance, average illumination requirements, etc.). Designers use Dialux simulation to design lighting effects and offer a variety of options for customer selection.

              Shanghai CHZ LIGHTING always follows the standardization rules and implements strict production processes to ensure product quality, thus saving time and cost for both parties and bringing maximum benefits to customers.

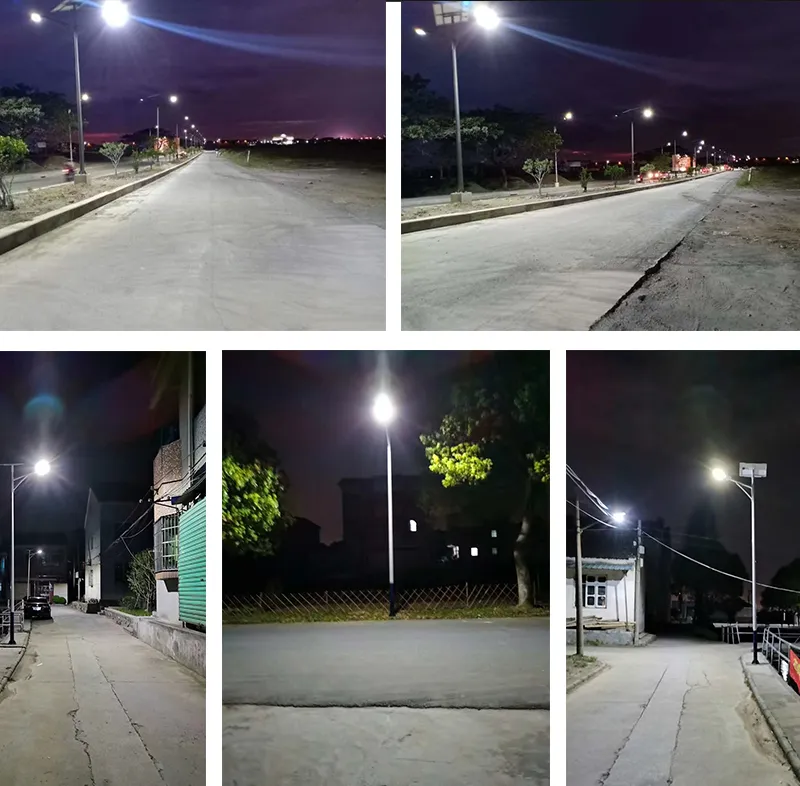

              CHZ case show of led street lighting project  :
              Chz Hot Sales 60W to 250W White Color Module LED Street Light with Bracket

              FAQ:
              1. What is a general business process?
              Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service

              2. What is the warranty?
              A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.

              3. What is the payment period?
              A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit
              3. What is the payment term?
              Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.

              4. Can I add my logo on the product label?
              Answer : Yes, but order quantity is requested depending on different lights.

              5. I don't know which sty how many LED Street Light should I use, can you advise?
              Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

              6. Do you have any MOQ limit for led light order?
              Answer: Low MOQ, 1pc for sample checking is available .

              7. How do you ship the goods and how long does it take to arrive?
              Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.

              8. We don't know how to install,can you help?
              Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.

              9. How to deal with the faulty?
              Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
              Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.

              10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
              Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the facebook homepage .
