COB LED Street Light Cover Mlt- Slh -as-I
COB LED Street Light Cover MLT-SLH-AS-ICategoriesBrief IntroductionThis LED street light cover fixture MLT-SLH-AS-I is the smallest size of COB LED street light cover fixture from Moonlight LED street light A series. Modern design, precision die-casting molded and superior corrosion resistant coatin......
Send Inquiry
Product Description

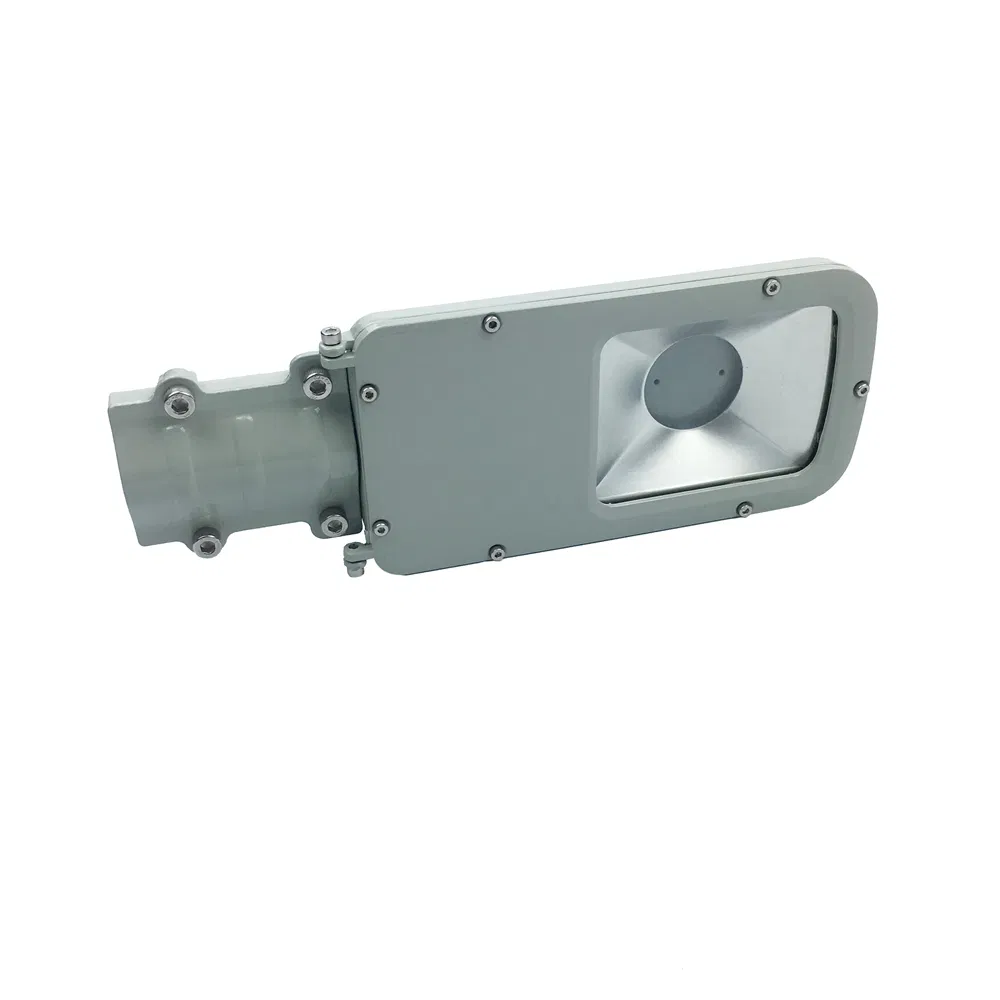

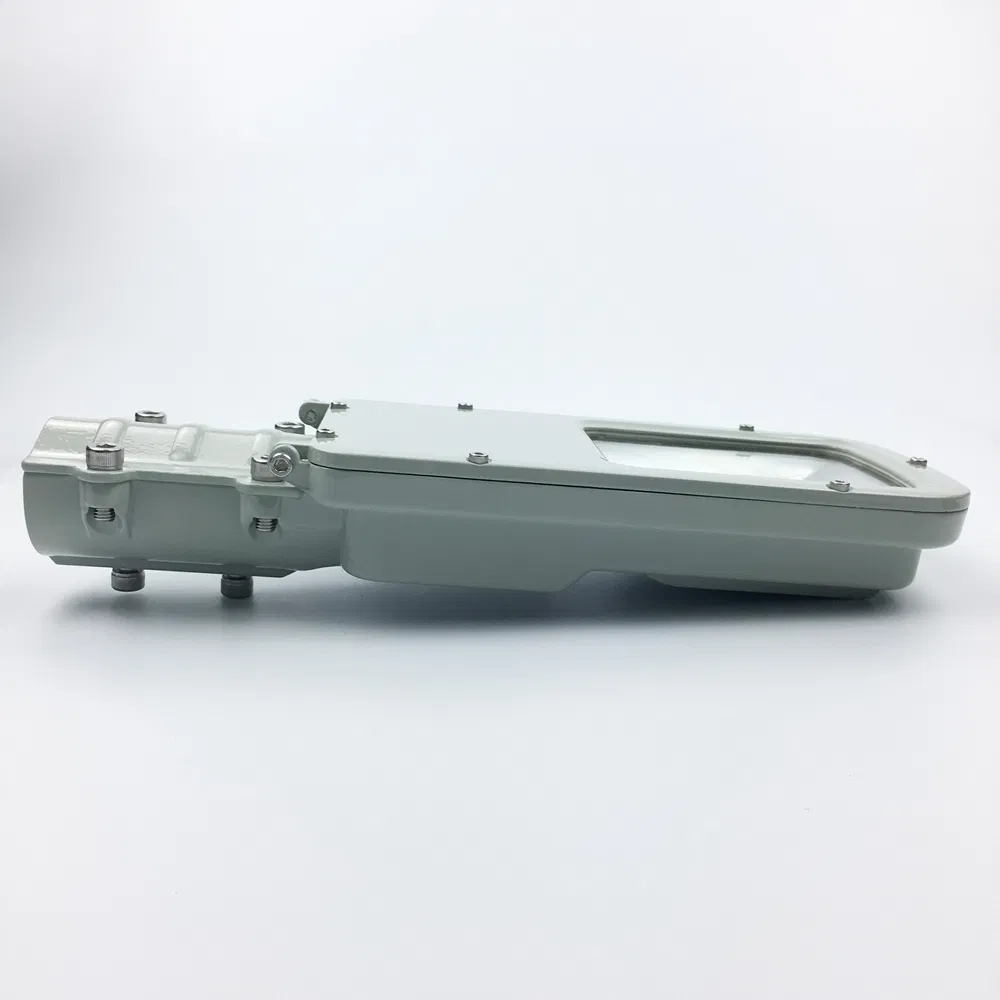

COB LED Street Light Cover MLT-SLH-AS-I
Categories
Brief Introduction
This LED street light cover fixture MLT-SLH-AS-I is the smallest size of COB LED street light cover fixture from Moonlight LED street light A series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this housing can be used for a variety of LED roadway lighting applications.
Feature
Parameter
Packing Information
Application
This heavy-duty, modern design and cost-effective LED street light cover fixture is typically used as 20W-50W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections. This small LED street light housing fixture is typically used as solar-powered LED street lighting applications.
FAQ
Q1: How could I get a sample?
A1: Email us the models and quantity of our LED light housings you need, and tell us your express account number for shipment, then we send you the PI. When you have transferred the money, send us the TT copy for check. We will send out samples within 3 working days after we get the payment for general models of our LED lighting fixtures.
Q2: How to place an order?
A2: Email order details to sales department including items model number, quantity, destination port (we need it to calculate the shipping cost), selling countries, consignee's contact information including detail address and phone fax number and email address, notify party, etc.
Q3: Could we place order by OEM or ODM style to produce our own brand products in your factory?
A3: Of course you can. Welcome to do OEM or ODM Order for our LED lighting fixtures. What you need to do is to send us the Drawing of your style with products, and we will submit sample or prototype of LED light housings to you for your approval.
Q4: What kind of shipment will you use?
A4: EMS, TNT, DHL, FEDEX,AIR WAY, SEALAND. Because our LED lighting fixtures especially LED street light housings are very heavy, normally we will choose the most economic way for the shipment. But if you need the samples urgently, please kindly remind us.
Q5: How soon we can get the shipment?
A5: It depends on your models of LED light housings you have selected and order volume. Please tell us the models and quantity, so we can confirm with you via Email.
Q6: Can I choose a custom color?
A6: Yes. You can. But the powder supplier will request a MOQ for the coating powder of our LED light housing, and the delivery time will be a little longer for the special color LED lighting fixture.
Q7: How long warranty do you provide for your products?
A7: We provide a 3-year warranty only for quality-related issues of our LED lighting fixtures. Once the quality problem is confirmed, you can request free replacement for them.
Categories
Brief Introduction
This LED street light cover fixture MLT-SLH-AS-I is the smallest size of COB LED street light cover fixture from Moonlight LED street light A series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this housing can be used for a variety of LED roadway lighting applications.
Feature
- Durable aluminum alloy die-casting housing for heavy-duty outdoor lighting applications.
- Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
- Easy drainage fins system.
- Plastic electrostatic spraying to resist corrosion, chipping and fading.
- Rugged heavy gauge, 4 bolt, galvanized clamp with stainless steel hardware secures fixture to pole arm.
- 5mm high light transmittance tempered glass diffuser.
- Silicon gaskets.
- Stainless steel bolts for fastening
- Standard Twist lock photocell mounting platform for lighting control.
- IP65 rated, protect from all dust and harsh weather.
- Standard Gray finish.
- Easy to assemble, install and maintain.
Parameter
| Model No. | LED Street Light Cover MLT-SLH-AS-I |

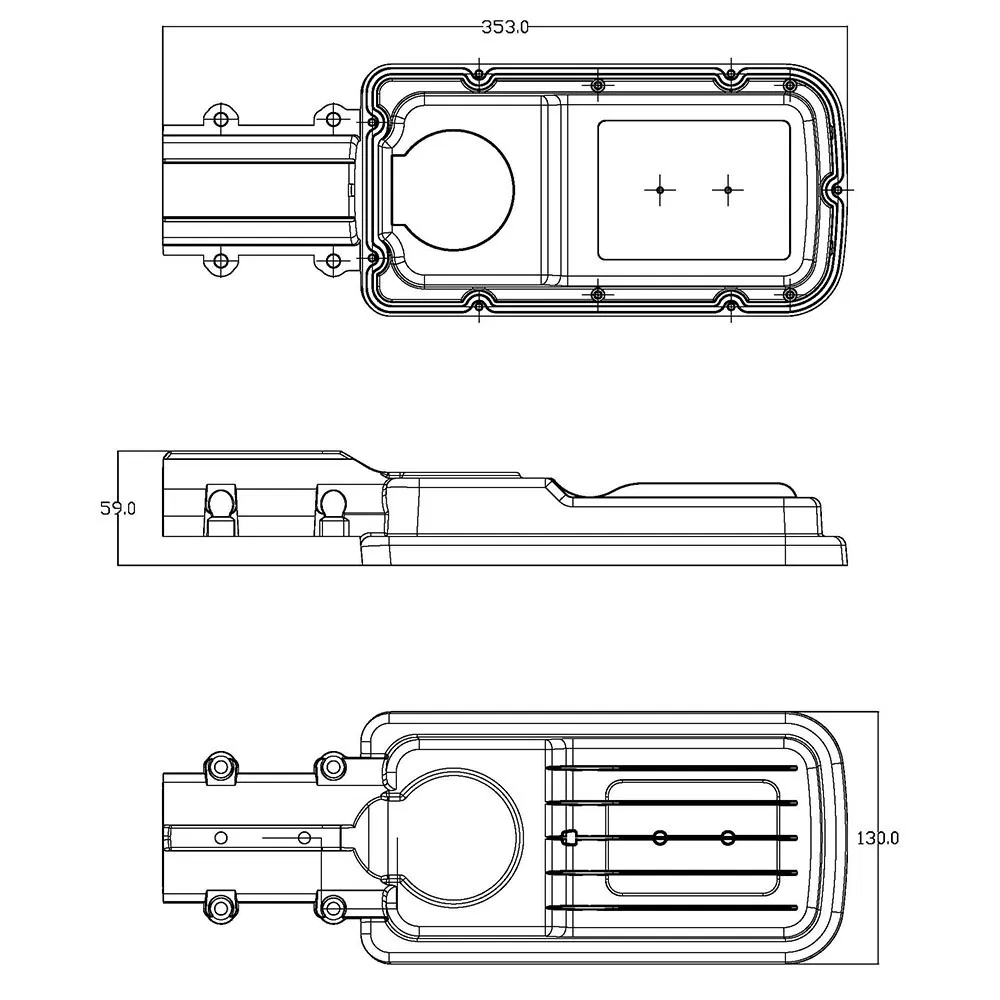

| Dimension of Housing | 35.3cm(L)*13cm(W)*6cm(H) |
| Fixture Material | Die-casting Aluminum Alloy |
| Surface Finish Color | Gray or Customized color |
| Material of Diffuser | High Transmittance Tempered glass |
| Recommended LED Power | 20W to 50W |
| Driver Box Dimension | 87mm(L)*68mm(W)*43mm(H) |
| Pole Mounting | Accommodates Φ40mm pipe |
| Adjustable Slip Fitter | Not available |
| Photocell | Optional |
| IP Rating | IP65 |
Packing Information
| Net Weight | 1.50kg/PCS |
| Gross weight | 6.5kg/Carton |
| Quantity | 4PCS/ carton |
| Carton Size | 40cm(L)*33.5cm(W)*19.5cm(H) |
Application
This heavy-duty, modern design and cost-effective LED street light cover fixture is typically used as 20W-50W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections. This small LED street light housing fixture is typically used as solar-powered LED street lighting applications.
FAQ
Q1: How could I get a sample?
A1: Email us the models and quantity of our LED light housings you need, and tell us your express account number for shipment, then we send you the PI. When you have transferred the money, send us the TT copy for check. We will send out samples within 3 working days after we get the payment for general models of our LED lighting fixtures.
Q2: How to place an order?
A2: Email order details to sales department including items model number, quantity, destination port (we need it to calculate the shipping cost), selling countries, consignee's contact information including detail address and phone fax number and email address, notify party, etc.
Q3: Could we place order by OEM or ODM style to produce our own brand products in your factory?
A3: Of course you can. Welcome to do OEM or ODM Order for our LED lighting fixtures. What you need to do is to send us the Drawing of your style with products, and we will submit sample or prototype of LED light housings to you for your approval.
Q4: What kind of shipment will you use?
A4: EMS, TNT, DHL, FEDEX,AIR WAY, SEALAND. Because our LED lighting fixtures especially LED street light housings are very heavy, normally we will choose the most economic way for the shipment. But if you need the samples urgently, please kindly remind us.
Q5: How soon we can get the shipment?
A5: It depends on your models of LED light housings you have selected and order volume. Please tell us the models and quantity, so we can confirm with you via Email.
Q6: Can I choose a custom color?
A6: Yes. You can. But the powder supplier will request a MOQ for the coating powder of our LED light housing, and the delivery time will be a little longer for the special color LED lighting fixture.
Q7: How long warranty do you provide for your products?
A7: We provide a 3-year warranty only for quality-related issues of our LED lighting fixtures. Once the quality problem is confirmed, you can request free replacement for them.
