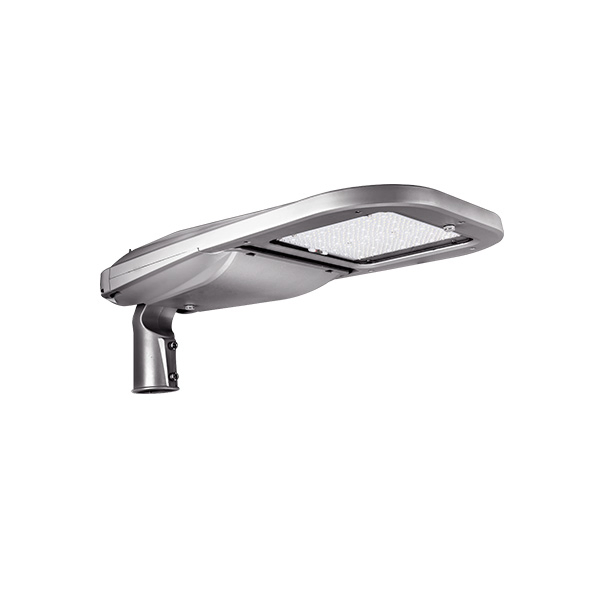

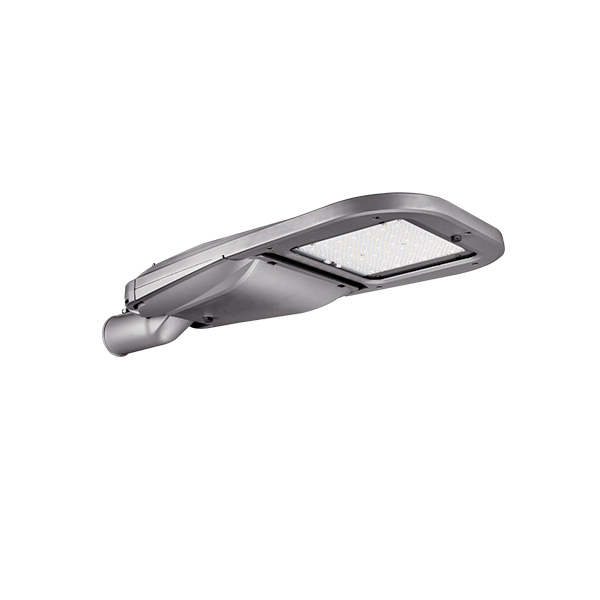

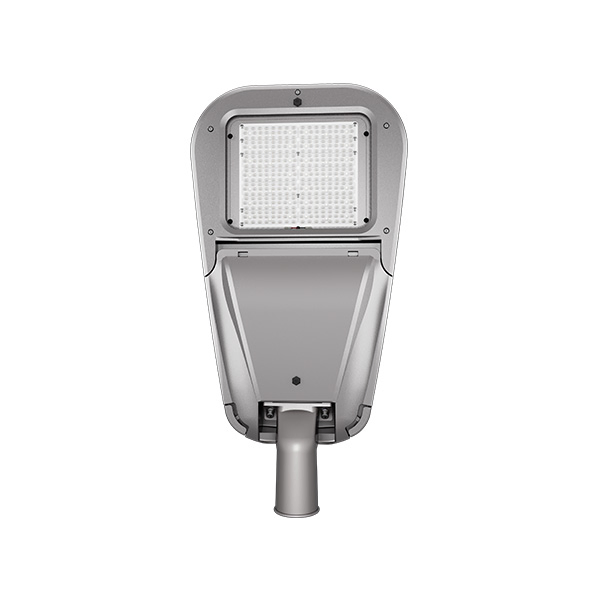

Easy Maintenance New Upgraded 90- 305VAC 150W Parking Lot Light Fixtures
Product DescriptionEasy Maintenance New Upgraded 90-305VAC 150W Parking Lot Light FixturesProduct advantages:1. Lumileds 3030 Chips.2. Meanwell HLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.3. Tempered Glass lens.4. Luminaire efficacy up to 125lm/w.5. Competitive price.6. 7 ......
Send Inquiry
Product Description
Product Description
Easy Maintenance New Upgraded 90-305VAC 150W Parking Lot Light Fixtures
Product advantages:
1. Lumileds 3030 Chips.
2. Meanwell HLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.
3. Tempered Glass lens.
4. Luminaire efficacy up to 125lm/w.
5. Competitive price.
6. 7 years warranty.
7. IP66 and IK08.
8. Type I, Type II, Type III optics for different width road lighting.
9. With Surge Projector to protect lamp from up to 10KV/10KA.
10. With Power Turn Off Protector to protect the personal safety.
11. With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
12. Big recessed structure design can be installed the MPPT remote control controller and wireless module to be a intelligent control system.
13. Full die-cast aluminum housing to prevent guano.
14. Snap-in type, easy installation by snap locking the two ends together, do not need tools to open or close the light cap.
Specification
AFTER-SALE SERVICE-7 years warranty
Hangzhou ZGSM Technology Co., Ltd ("ZGSM") warrants this ZGSM-branded hardware product against defects in materials and workmanship under normal use for a period of SEVEN (7) YEAR from the date of purchase.
ZGSM provides free repair or replacement within warranty period.
ZGSM shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
Damage by thunder stroke over 6KV(L,N to FG) /4KV(L to N) will not covered by warranty based on IEC61000-4-5.
Easy Maintenance New Upgraded 90-305VAC 150W Parking Lot Light Fixtures
Product advantages:
1. Lumileds 3030 Chips.
2. Meanwell HLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.
3. Tempered Glass lens.
4. Luminaire efficacy up to 125lm/w.
5. Competitive price.
6. 7 years warranty.
7. IP66 and IK08.
8. Type I, Type II, Type III optics for different width road lighting.
9. With Surge Projector to protect lamp from up to 10KV/10KA.
10. With Power Turn Off Protector to protect the personal safety.
11. With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
12. Big recessed structure design can be installed the MPPT remote control controller and wireless module to be a intelligent control system.
13. Full die-cast aluminum housing to prevent guano.
14. Snap-in type, easy installation by snap locking the two ends together, do not need tools to open or close the light cap.
Specification
| Specifications | |
| Model | ZGSM-LD150KL |
| Driver Brand | Meanwell HLG series/ Inventronics/ Inventronics |
| Norminal Wattage | 150W |
| LED Chip Quantity | 240pcs |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >130 lm /w |
| Lamp Rated Lumen output | 19,500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000, 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Die-cast aluminum; Tempered Glass |
| IP Rating | IP66 with test report |
| IK Rating | IK08 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM-80 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 861 x447 x153 mm |
| Fixture Weight | 12.0 kg /26.5 lbs |
| Packing Dimension | 915 x495 x225 mm |
| Packing Weight | 14.5 kg /32.0 lbs |
AFTER-SALE SERVICE-7 years warranty
Hangzhou ZGSM Technology Co., Ltd ("ZGSM") warrants this ZGSM-branded hardware product against defects in materials and workmanship under normal use for a period of SEVEN (7) YEAR from the date of purchase.
ZGSM provides free repair or replacement within warranty period.
ZGSM shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
Damage by thunder stroke over 6KV(L,N to FG) /4KV(L to N) will not covered by warranty based on IEC61000-4-5.
