Factory Direct 6m7m8m Pole LED Solar Street Light with Gelled/Lithium Battery
Factory Direct 6m7m8m Pole LED Solar Street Light with Gelled/Lithium Batteryour project in Tanzania FEATURESHot galvanized street light postGood looking street lighting polesCustomized powdered painting3m 4m 5m 6m 8m 9m 10m 12mWE ARE MANUFACTURER SINCE 1998Experience: Our company was set up in 1998......
Send Inquiry
Product Description
Factory Direct 6m7m8m Pole LED Solar Street Light with Gelled/Lithium Battery

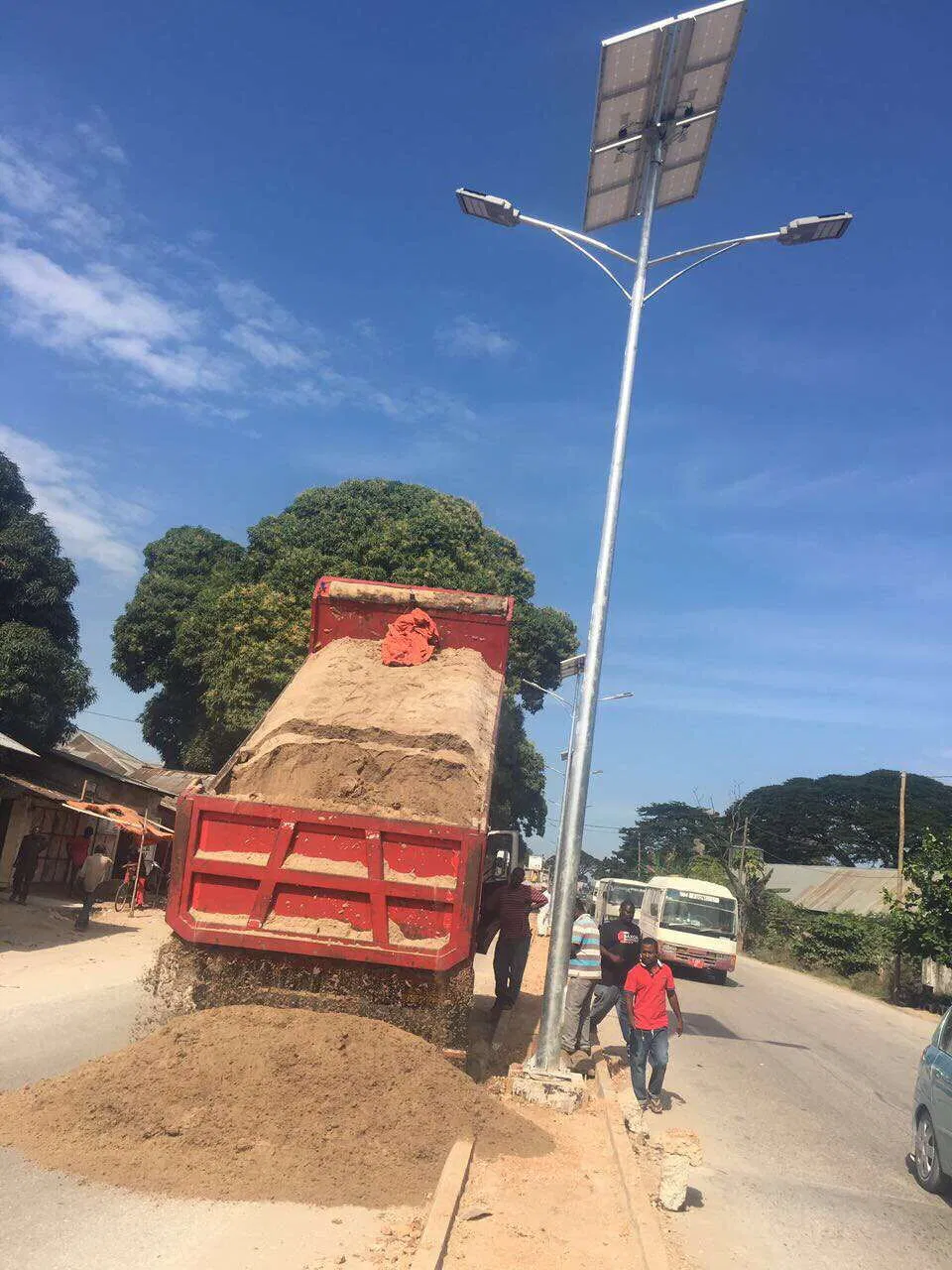

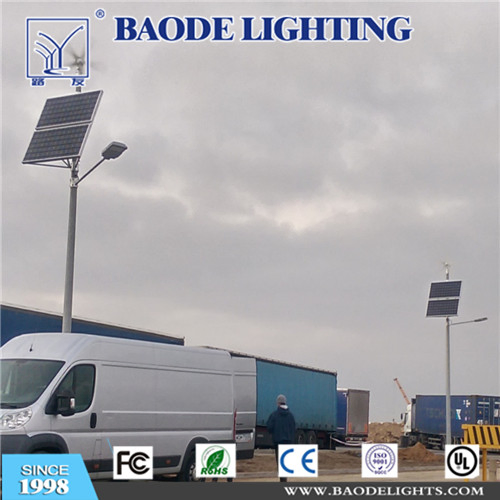

our project in Tanzania
FEATURES
Hot galvanized street light post
Good looking street lighting poles
Customized powdered painting
3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 1998
Experience: Our company was set up in 1998, having over 15 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20, 000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.
SPECIFICATION
Material
High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique
Automatic submerged arc welding
Surface Treatment
Hot dip galvanizing and powder painting
Welding Standard
GB11345 Grade II
Thickness of Zinc Coating
≥ 86um
Adhesive Force of Zinc Coating
GB2694-88
Anti-wind Capacity
36.9m/s
Anti-corrosion Lifetime
≥ 20 years
Coating Layer
Thickness
≥ 100um
Adhesive force
GB9286-880
Hardness
≥ 2H
Steel Pole Height Options
3.5m~15m
Street Lighting Poles Type Options
Conical, polygonal
Delivery Time
Generally 20 working days for 100 galvanized steel light poles.

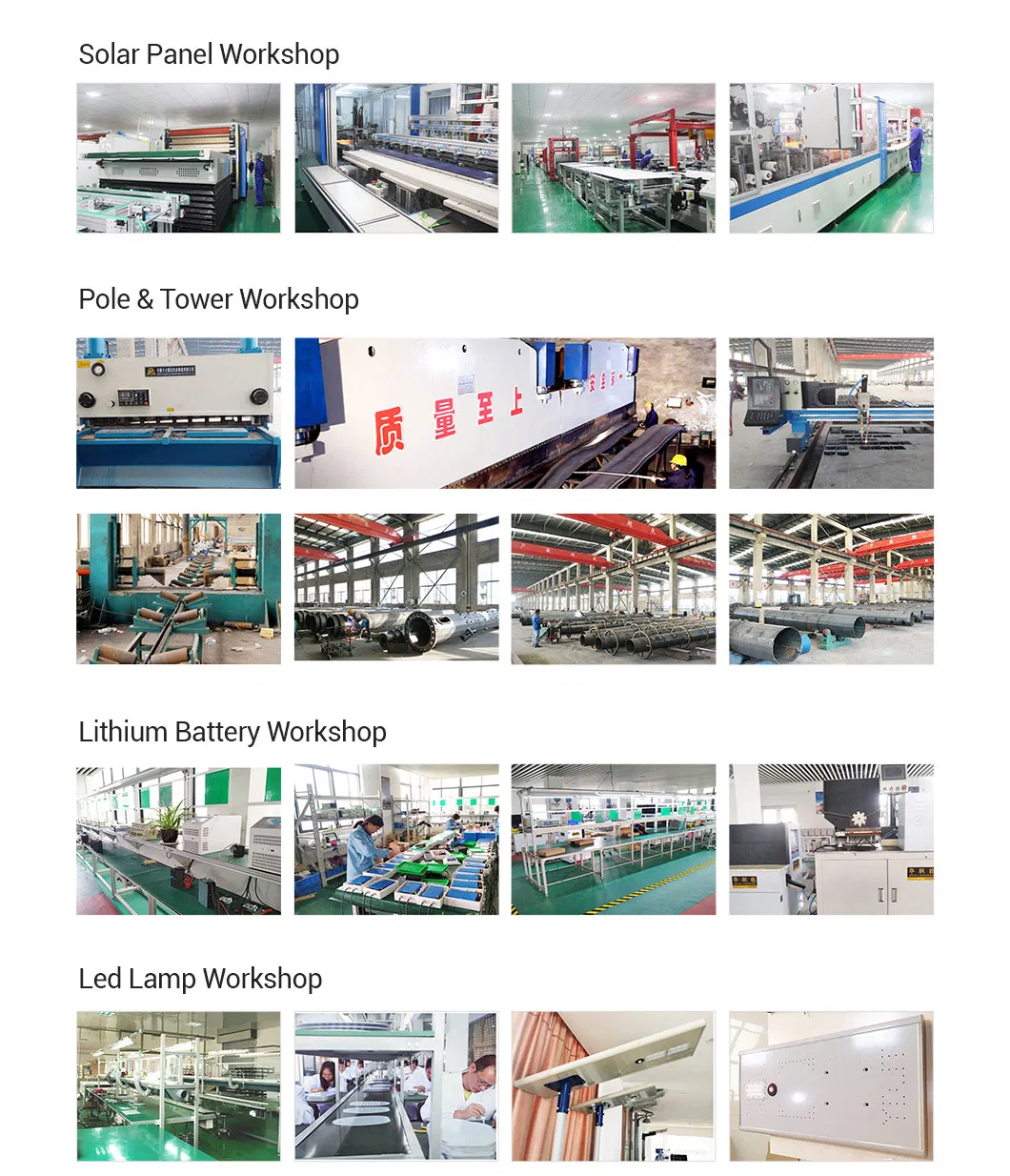

We have plate cutting line--plate bending line-- auto. Welding line--polishing line--spray painting line--packaging line

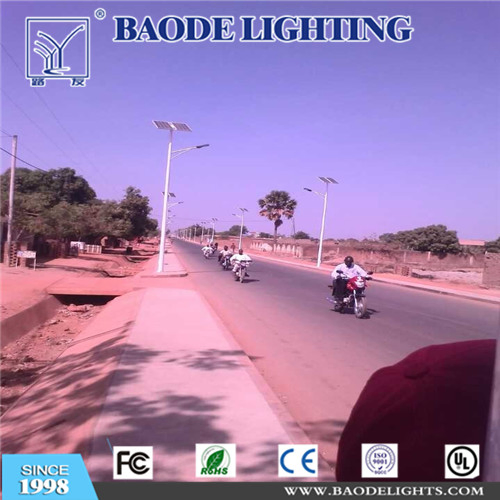

our project in Tanzania
FEATURES
Hot galvanized street light post
Good looking street lighting poles
Customized powdered painting
3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 1998
Experience: Our company was set up in 1998, having over 15 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20, 000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.
SPECIFICATION
Material
High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique
Automatic submerged arc welding
Surface Treatment
Hot dip galvanizing and powder painting
Welding Standard
GB11345 Grade II
Thickness of Zinc Coating
≥ 86um
Adhesive Force of Zinc Coating
GB2694-88
Anti-wind Capacity
36.9m/s
Anti-corrosion Lifetime
≥ 20 years
Coating Layer
Thickness
≥ 100um
Adhesive force
GB9286-880
Hardness
≥ 2H
Steel Pole Height Options
3.5m~15m
Street Lighting Poles Type Options
Conical, polygonal
| Components | Parameters | |
| Solar Module | Pmax(W) | 30-400W |
| Vmp (V) | 35.0V | |
| Imp (A) | 2.86A | |
| Light Fixture | Material | Aluminum die casting & Toughened glass |
| Operating Temperature | -40°C~75°C | |
| Protection Level | IP65 | |
| LED Light Source | LED Chip | BRIDGELUX / Cree (Top brand in U.S.A.) |
| Color Temperature | 3800-6500K(white) | |
| Luminous flux | 5300 LM | |
| Operating temperature | -40°C~75°C | |
| Current Source | DC 12V/24V | |
| Power | 15W/18W/21W/24W/30W/36W/42W/48W/54W/60W | |
| Lighting Pole | Height | 3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m |
| Material | BAOSTEEL GROUP Q235/345/GR60 | |
| Surface Treatment | Hot-dip galvanizing, Static spray, | |
| Size | φ60-φ200,δ3-5m, vary according to models | |
| Flange Plate | 300*300*16, vary according to models | |
| Battery | Capacity | 200AH (100AH*2pcs) |
| Type | Gel/AGM Battery | |
| Dimension | 546*1203*30 | |
| Weight | 28Kg | |
| Controller | Rated voltage and current | 12V/10A or 24V/10A waterproof |
| Weight | 0.165Kg | |
| Two times rainy day backup &Protective Function | Two times of rainy day backup. Good protection: overcharging, discharging, voltage surge, reverse polarity, etc. | |
| Accessories | Cable | 2.5 mm2, 15m |
| Battery Box | 200AH ABS battery box or metal box with hot-dip galvanizing spray treatment | |
Delivery Time
Generally 20 working days for 100 galvanized steel light poles.
We have plate cutting line--plate bending line-- auto. Welding line--polishing line--spray painting line--packaging line
Company Information
21 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.
Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.
Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.
Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2. We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers.
