Product Description
High lumen high working efficiency IP66 waterproof 150W led street light
Product description
1 Using led modules, lumileds 3030smd. Lamp luminous efficiency can reach more
than150LM/W

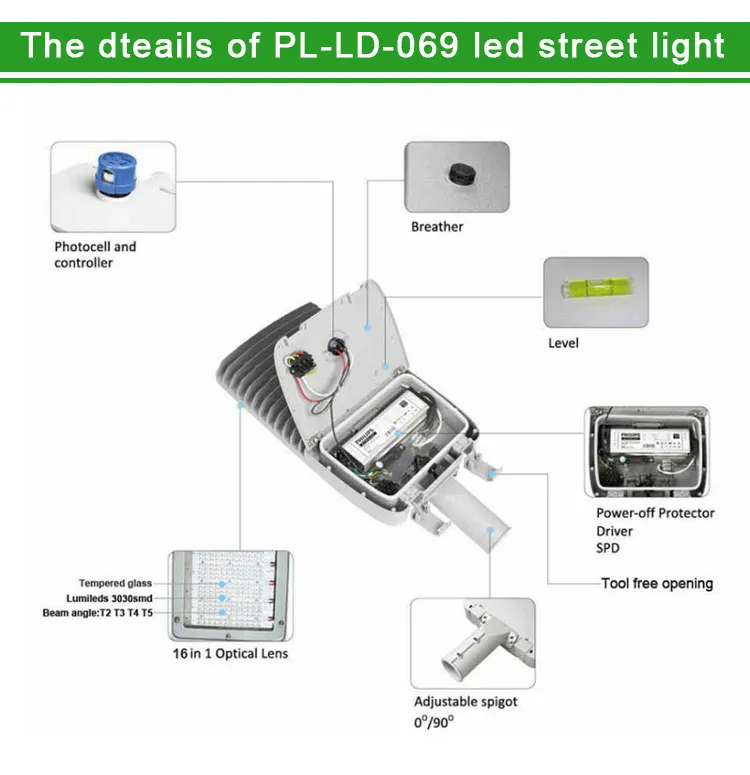

2 Driver box can be opened without tools ,easy to maintain

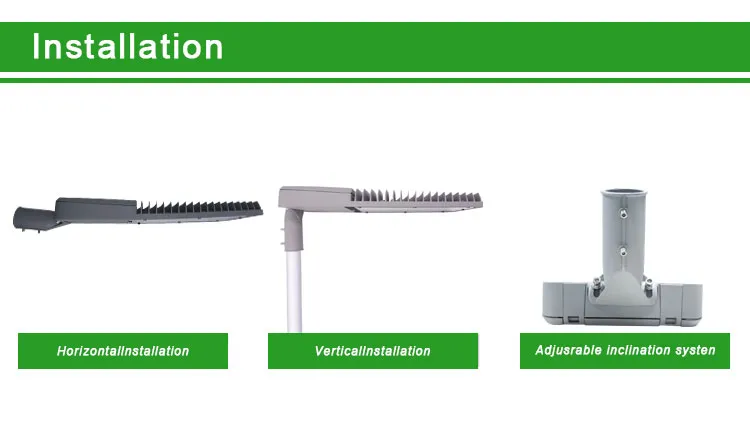

3 Installation degree is adjustable from -90 ~ +90.
4 Beautiful appearance and unique design IP66
Technical parameter
LED Street light Specifications | |||
Model | PL-LD-069 | PL-LD-069 | PL-LD-069 |
Input Voltage | 100-305 V AC | ||
Power | 30W 40W 50W 60W 70W 80W 90W 100W 120W | 15W 180W 200W | 240W 300W |

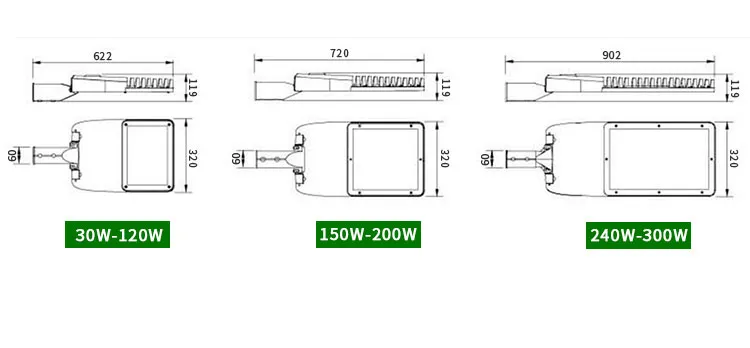

Size(mm) | 622*320*119mm | 720*320*119mm | 902*320*119mm |
LED chip | Lumileds 3030SMD | ||
CRI | Ra>70/80 | ||
Power Factor | >0.95 | ||
Light efficiency | 145LM/W±5% | ||

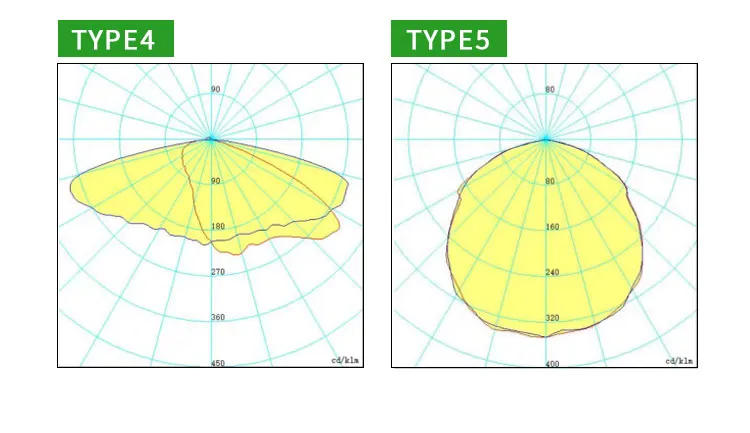

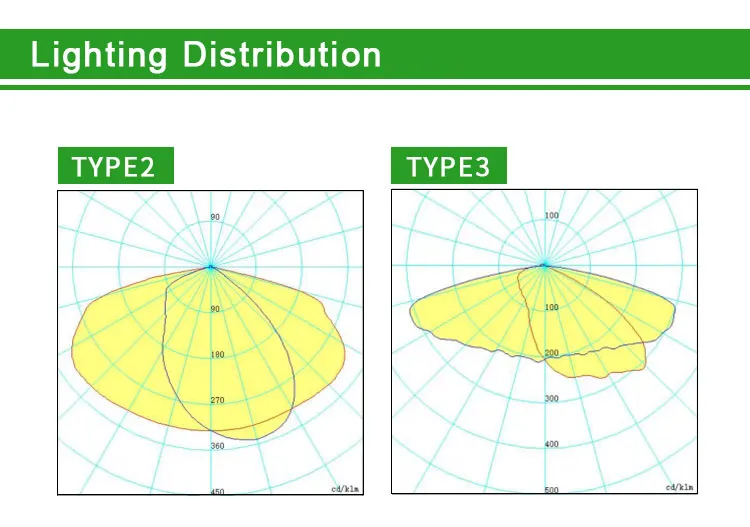

Beam angle | T2 T3 T4 T5 | ||
LED driver brand | SOSEN, Meanwell driver ELG/HLG series | ||
Surge protection | 6KV/10KV/20KV as customers' rerquirement | ||

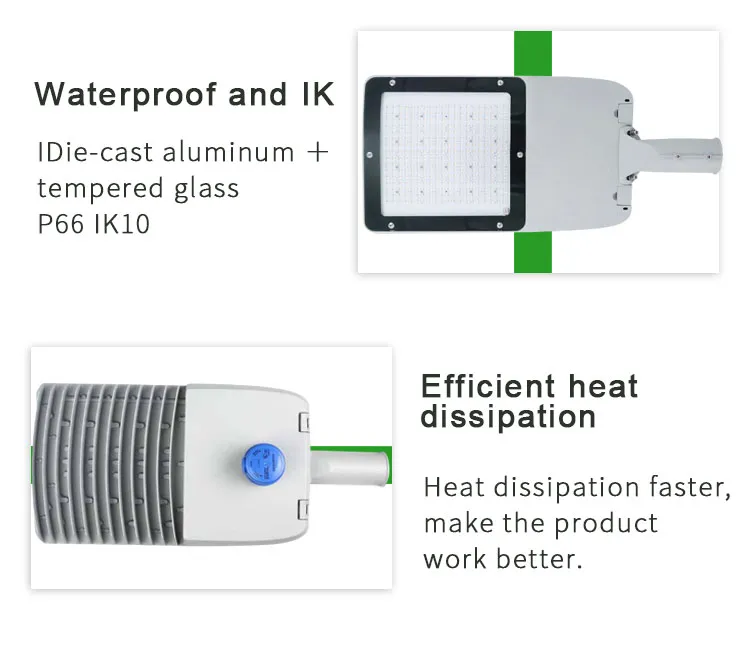

Waterproof and IK | IP66 IK10 | ||
Housing material | Die-cast Aluminum +Steel glass | ||
Work temperature | -50°C ~ +50°C | ||
Lifespan | 50000 hours | ||
warranty | 5 -8years | ||
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
