China Hight Powerled Street Light 30W to 120W

Product Description

Hight Power street light IP67 LED 30W to 120W LED Street Lighting
Hight Powerled Street Light 30W to 120W

Working Voltage	Power Efficiency	Power Factor	CRI	Junction Temp.	Light Distribution	Working Environment	Storage Temerature
AC90-305V	90%	0.95	85±5	≤75°	Batwing	-40~50ºC 5%~95%RH	-40~85ºC
LED Life	Power Supply Life	Surge Protection	LED Brand	LED QTY	Installation Dia.	Material	IP Rate
50000H	30000H	4KV	CREE/Luminleds/ Samsung	181 182	55-65mm	AL	IP67

Technical Specification

Item No.	Power	CCT	LM	Lm/W	Size (mm)	Package (mm)	N.W (kg)	G.W (kg)
SN-SL07-1	30	3000	2850	95	52024080	600320160	3.5	4.6
		4000	3000	100
		5000/6000	3150	105
	40	3000	3800	95
		4000	4000	100
		5000/6000	4200	105
	50	3000	4750	95
		4000	5000	100
		5000/6000	5250	105
	60	3000	5700	95
		4000	6000	100
		5000/6000	6300	105
SN-SL07-2	80	3000	7600	95	52024080	600320160	4.5	5.6
		4000	8000	100
		5000/6000	8400	105
	100	3000	9500	95
		4000	10000	100
		5000/6000	10500	105
	120	3000	11400	95
		4000	12000	100
		5000/6000	12600	105

Features
. CREE/Luminleds/Samsung LEDs, flip chip technology, single unit's damage won't affect others'
normal work;
.Honeycomb briquette effect heat dissipation principle, best thermal management system;
.Designed to last at least 60,000 hours at L70;
.Multiple lighting distributions available;
.Standard color temperatures: 3000K, 4000K, 5000K, 6000K;
.Wide power range: 30W~120W;
.Minimum 70 CRI;
.IP68 waterproof level, hot-pluggable, easy for installation and replacement;

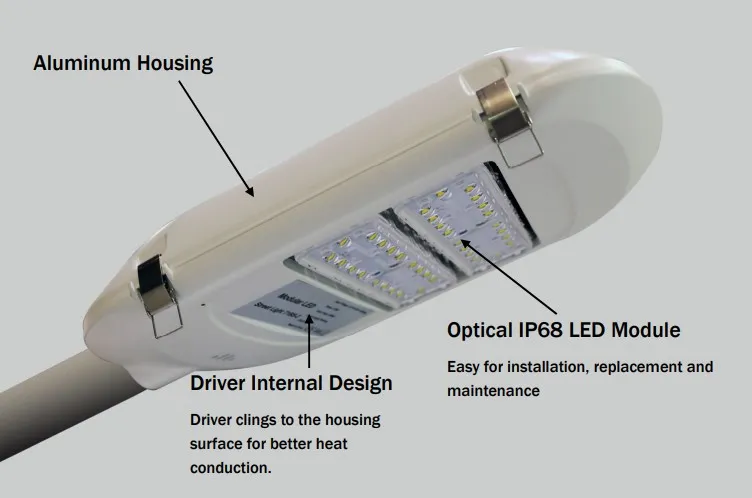

.Aluminum housing;
.Multiple housing colors: black, white, grey, blue;
.Easy tool onsite maintenance and repair.
