Product Description

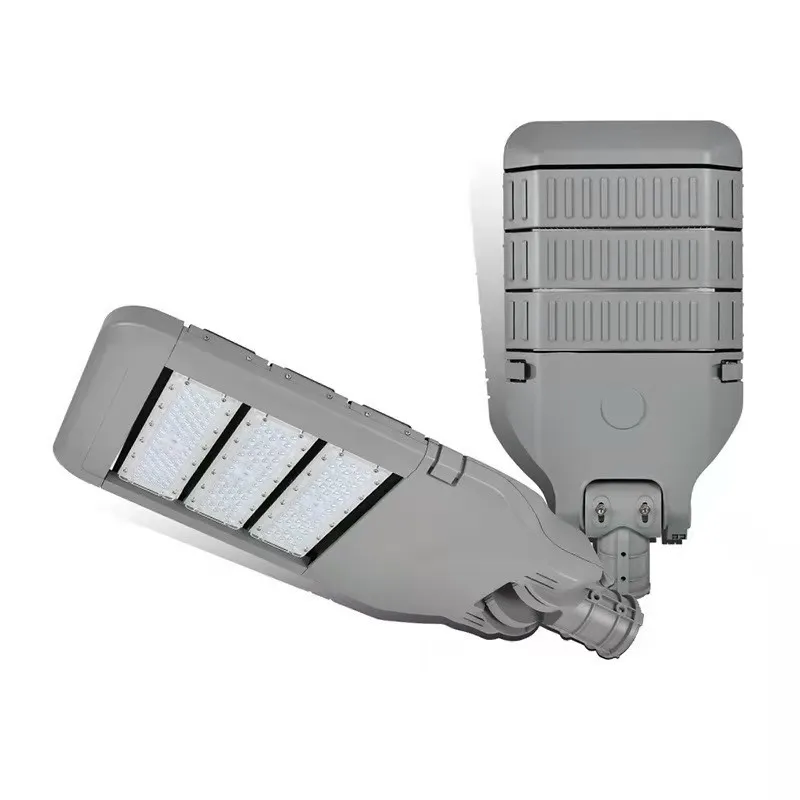

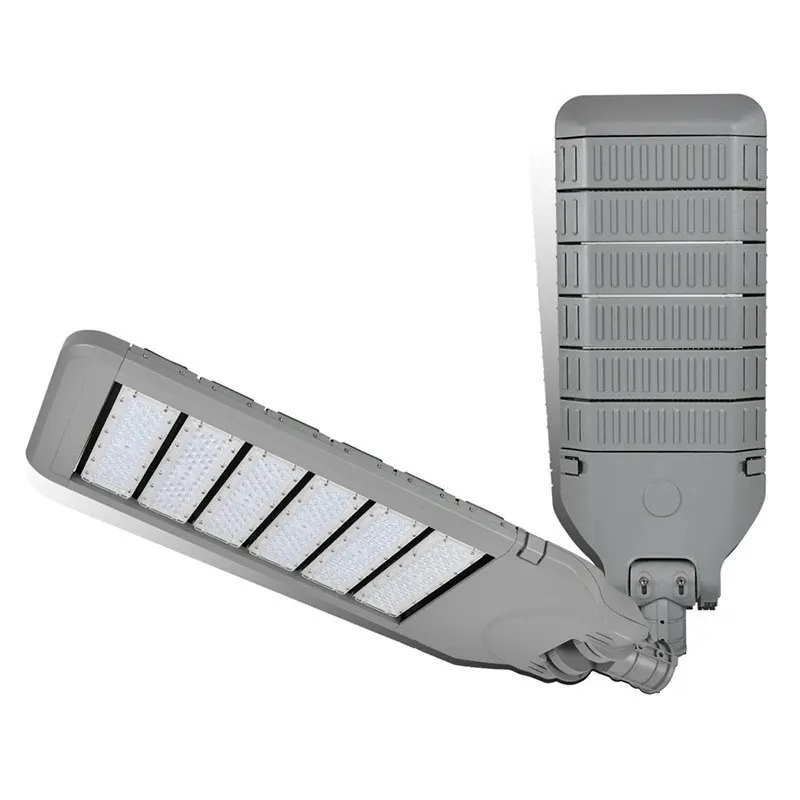

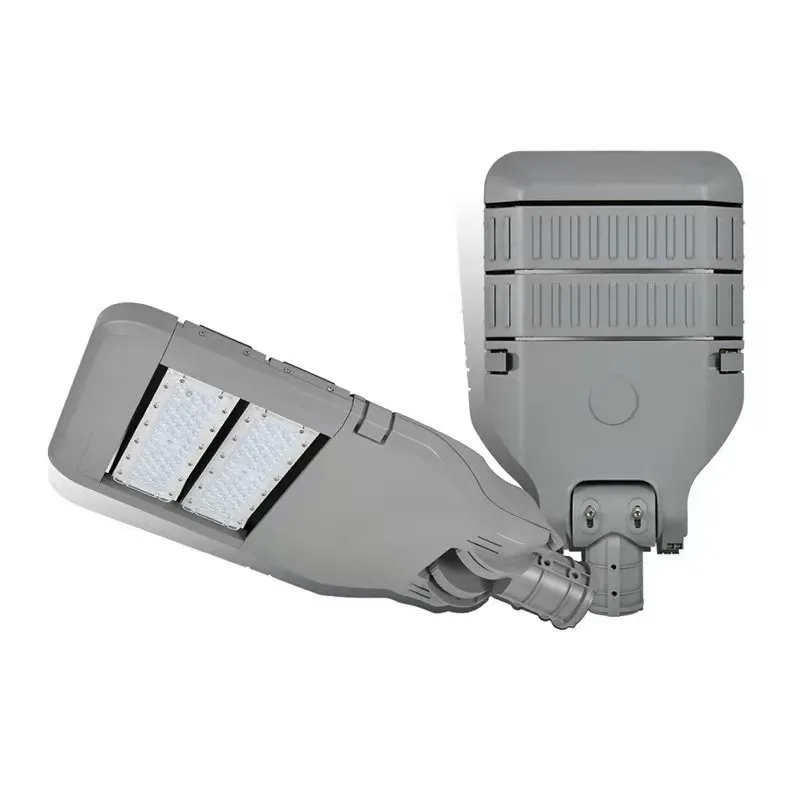

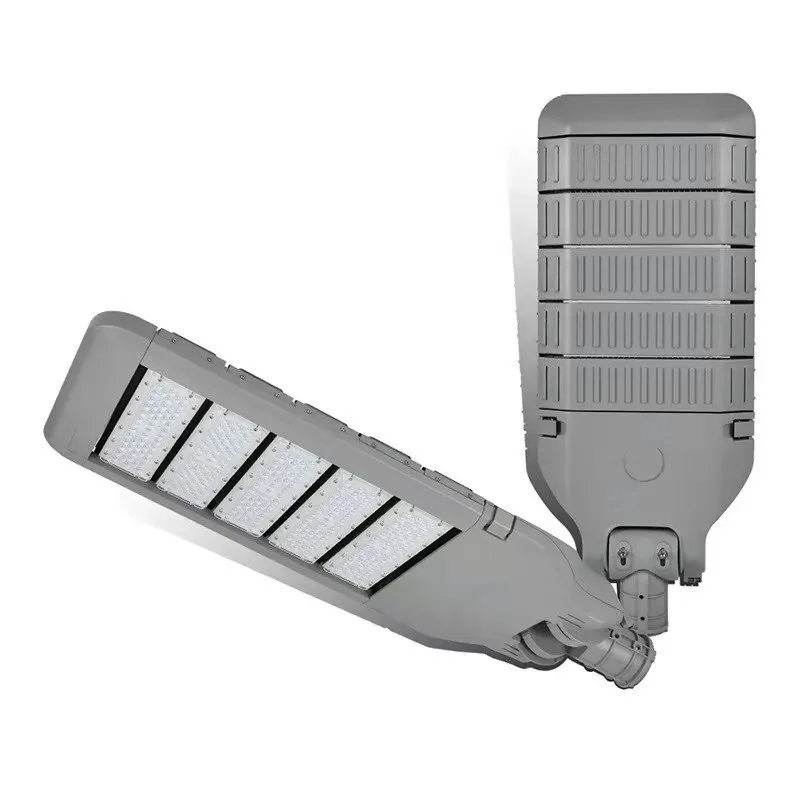

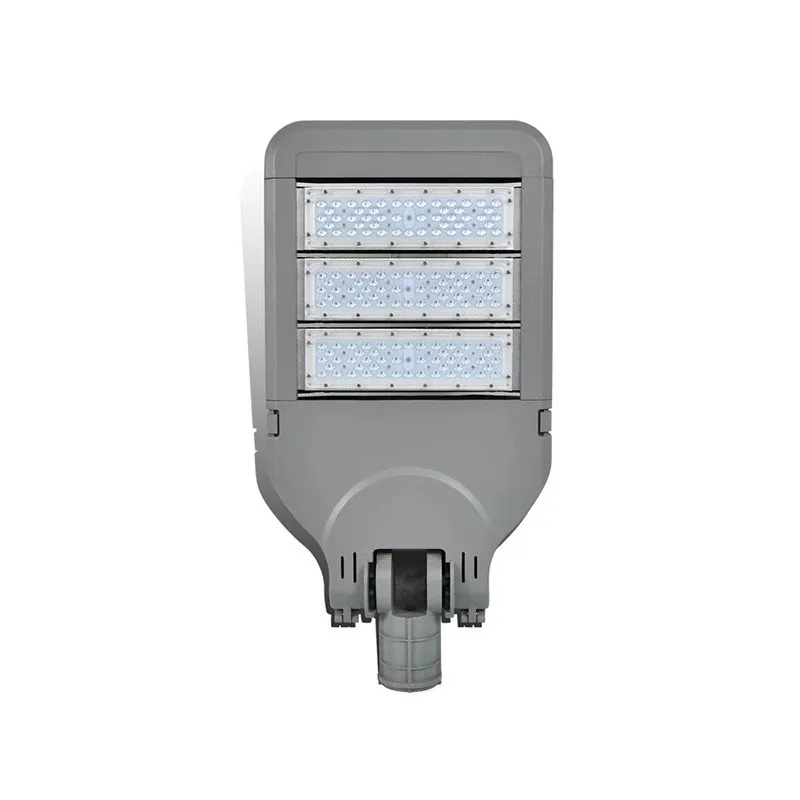

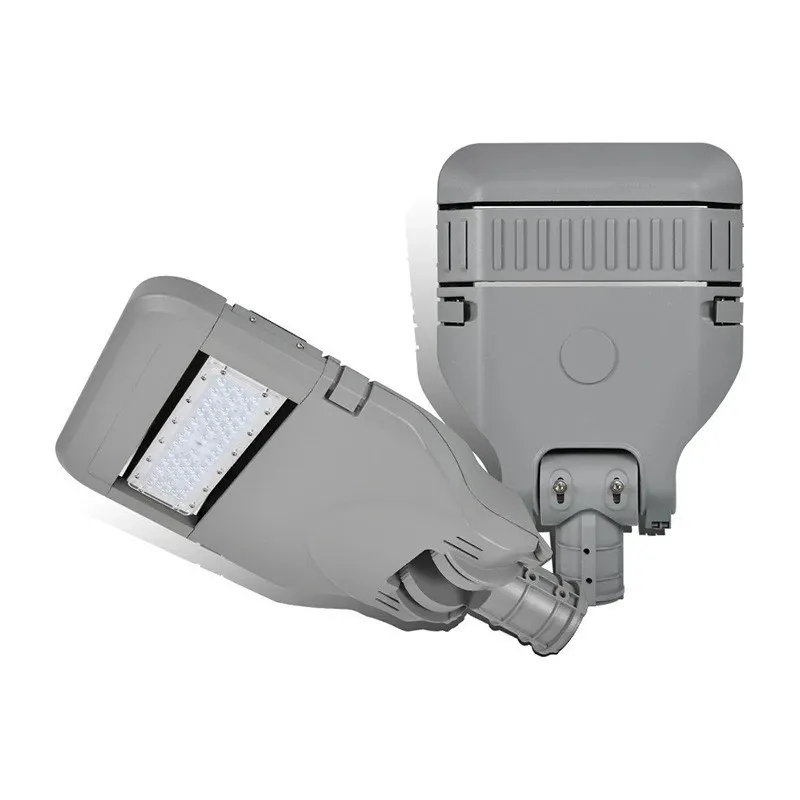

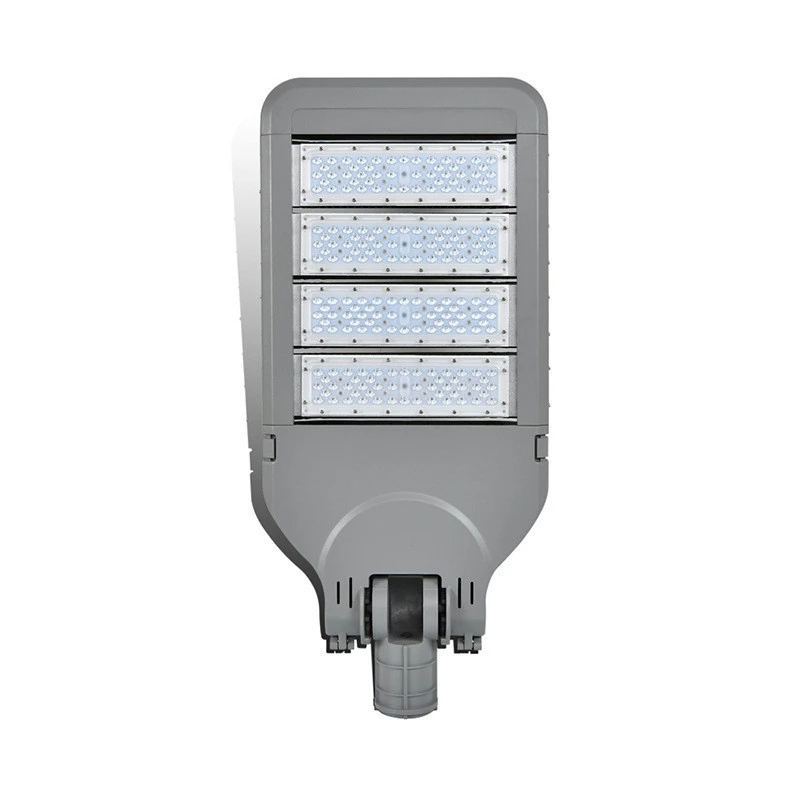

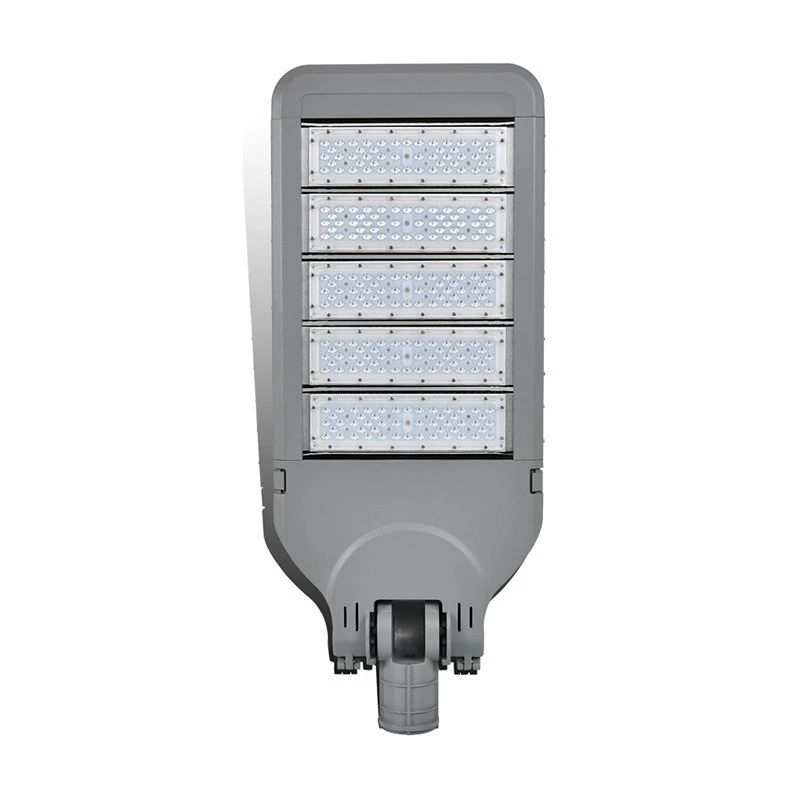

IP65 Integrated Intelligent All In One Solar Led Street Light Outdoor 250W Lighting Solar Street Light
Key Features
1.Using led modules , lumileds 3030smd. Lamp luminous efficiency can reach more than 130LM/W.
2.Driver box can be opened without tools ,easy to maintain.
3.Installation filling diameter is 60mm.
4.Beautiful appearance and unique design IP66.
Datesheet
| Specifications | ||||||
| Model | PL-LD-075 | |||||
| Input Voltage | 100-277/305 V AC | |||||
| Power | 50W | 100W | 150W | 200W | 250W | 300W |

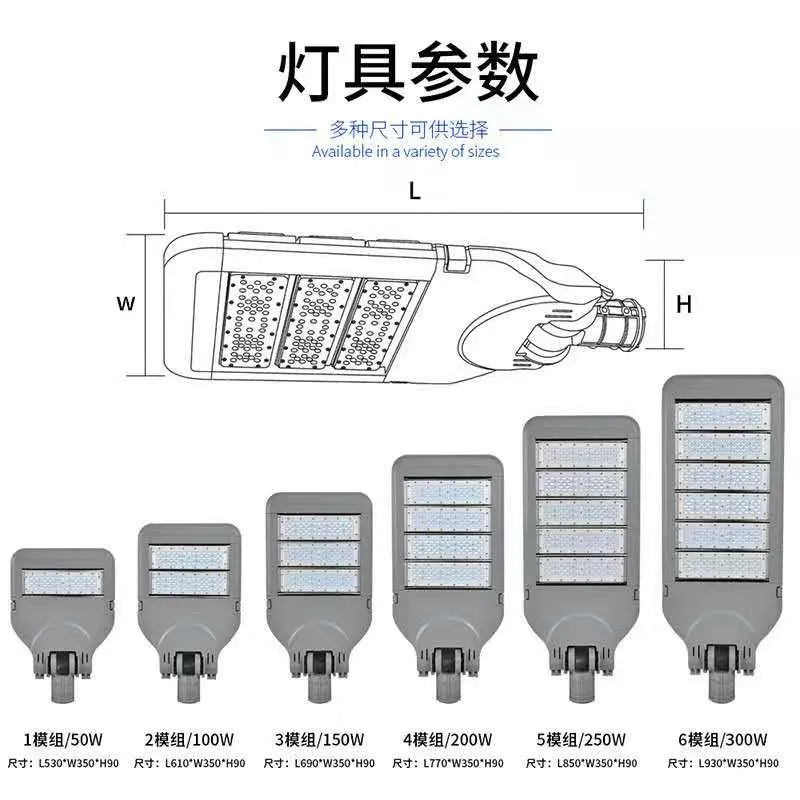

| Size(mm) | 530*350*90 | 610*350*90 | 690*350*90 | 770*350*90 | 850*350*90 | 970*350*135 |
| Lumens | 7000lm±5% | 14000lm±5% | 21000lm±5% | 28000lm±5% | 35000lm±5% | 42000lm±5% |
| LED chip | Lumileds 3030SMD | |||||
| CRI | Ra>70/80 | |||||
| Power Factor | >0.95 | |||||
| Light efficiency | 130LM/W±5% | |||||
| Beam angle | 70x135° | |||||
| LED driver brand | Inventronics , Meanwell driver | |||||
| Surge protection | 6KV/10KV/20KV as customers' rerquirement | |||||
| Waterproof and IK | IP66 IK09 | |||||
| Housing material | Die-cast Aluminum +PC diffuse | |||||
| Work temperature | -50°C ~ +50°C | |||||
| Lifespan | 50000 hours | |||||
| Control | Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI | |||||
| Certificates | CE ROHS SAA CB ENEC IK10 IP66 LM80 LM79 TM21 | |||||
| warranty | 5-8years | |||||

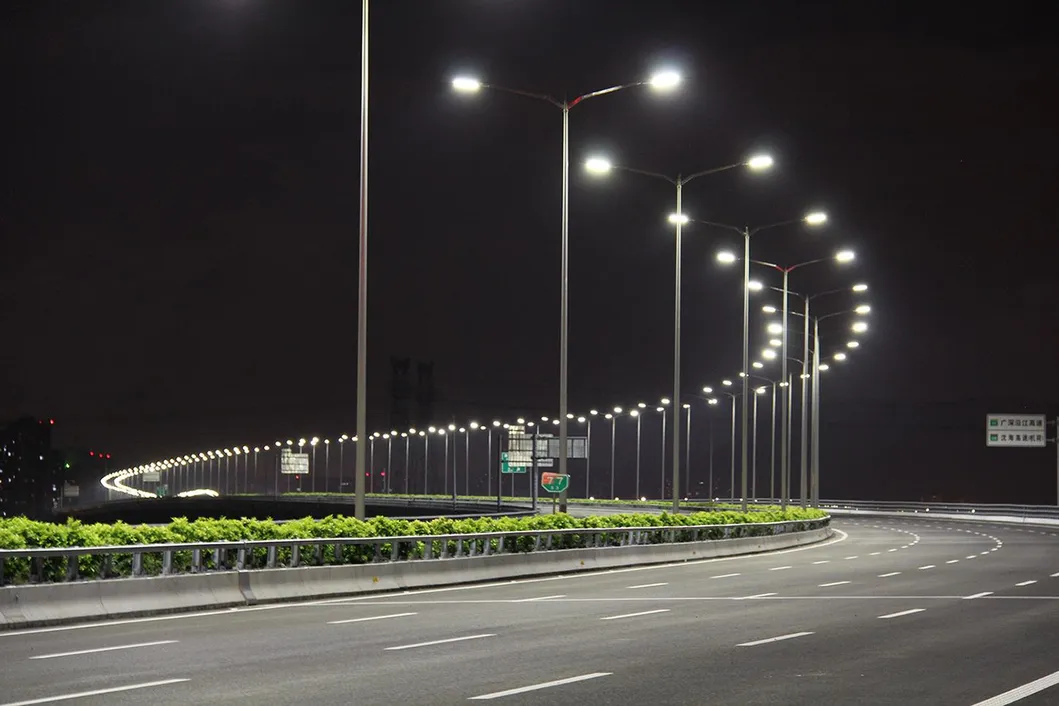

Application
road, park, highway ,country yard etc.

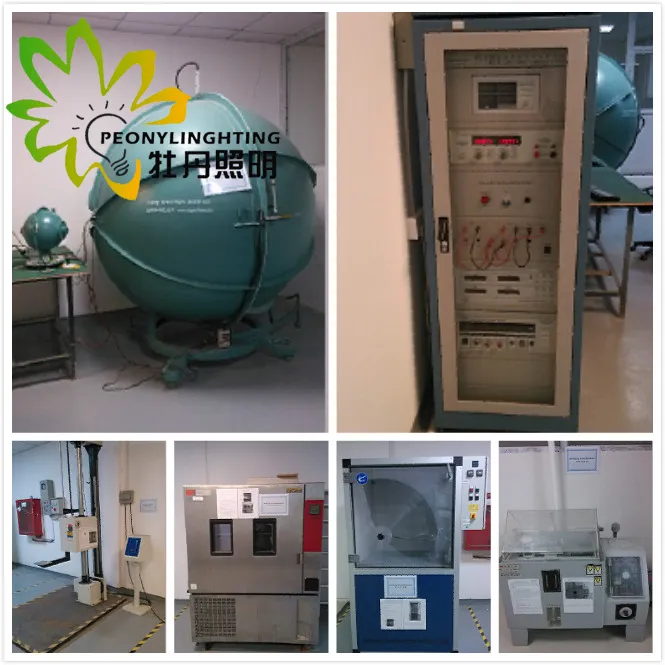

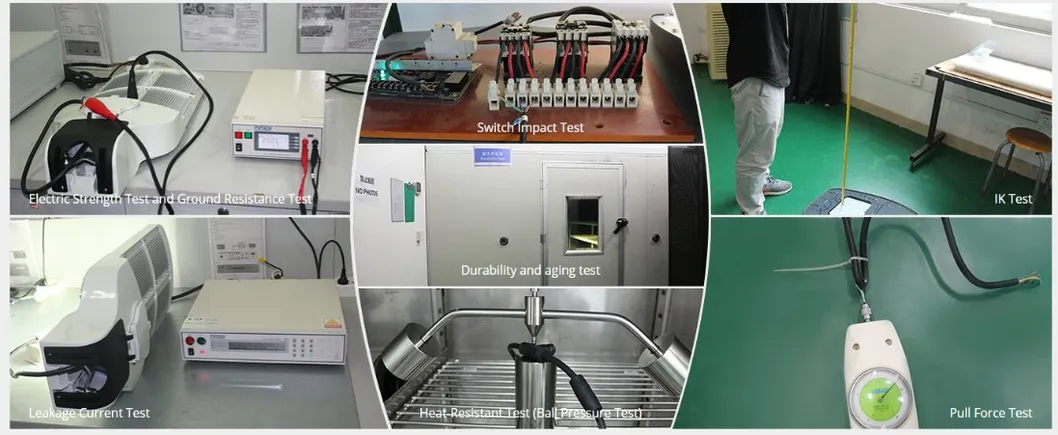

Workshop
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
