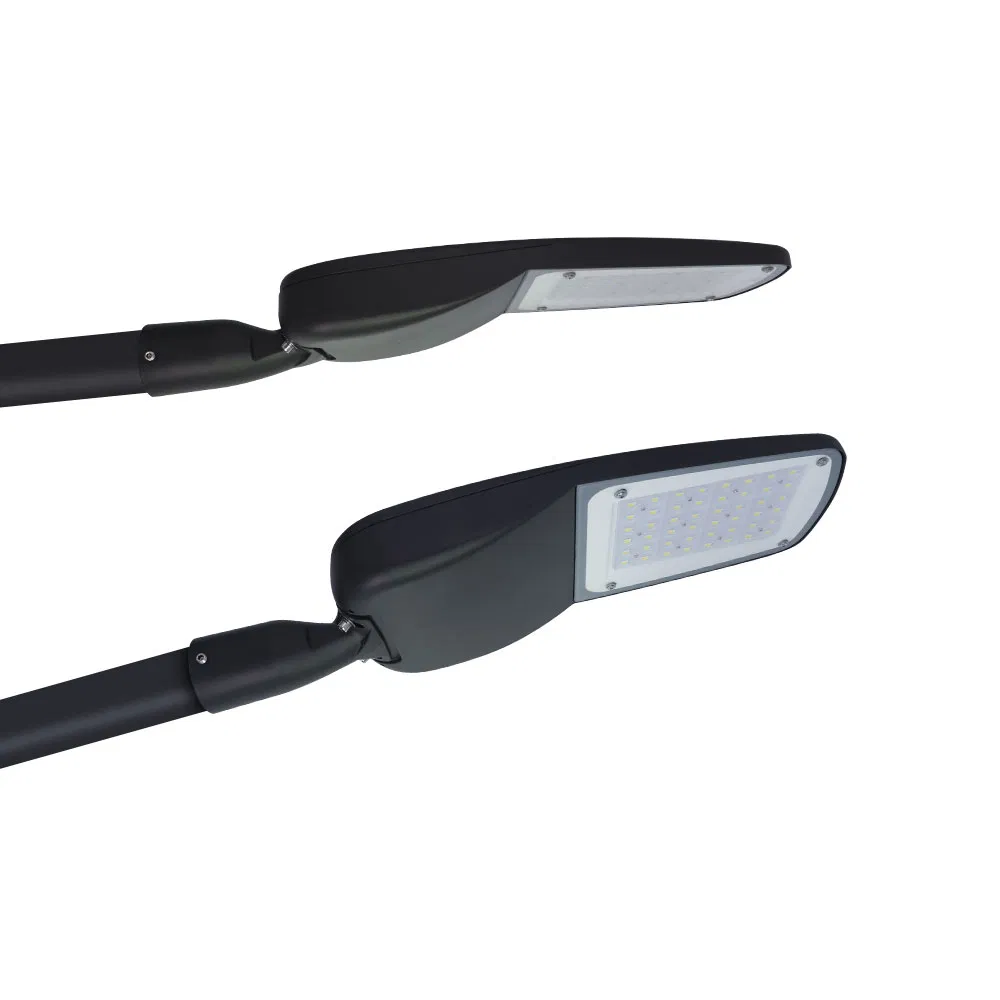

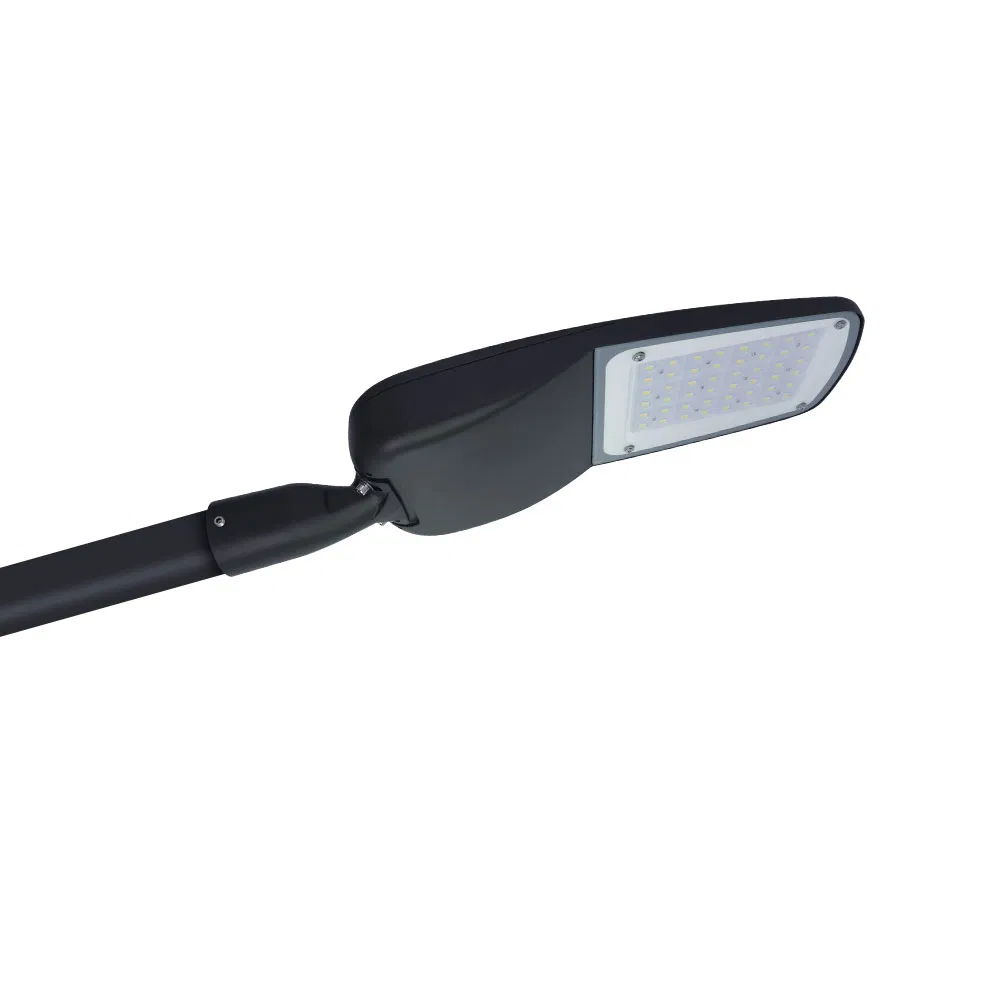

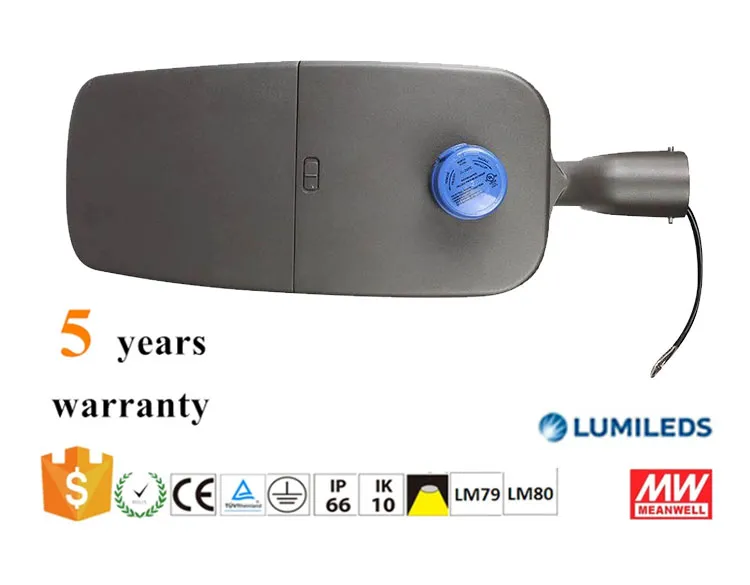

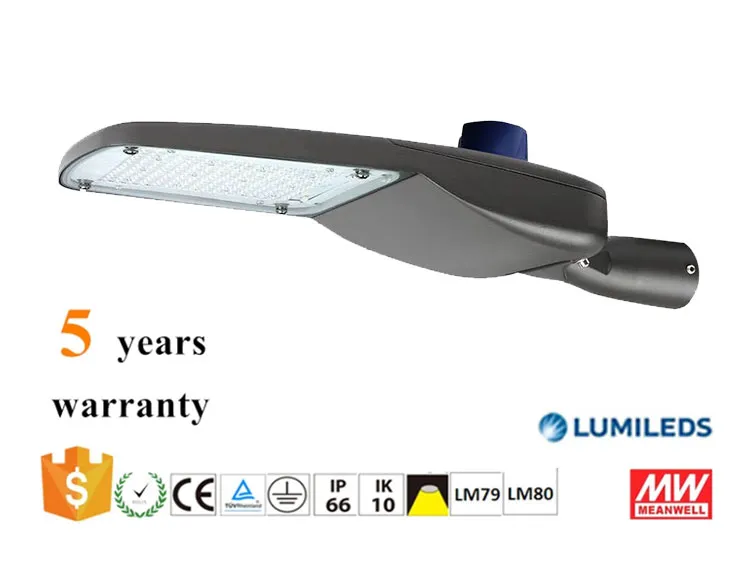

IP66 Waterproof 2700K- 6500K Meanwell Driver Ledil Lens 120W LED Outdoor Street Light
IP66 Waterproof 2700k-6500k Meanwell Driver LEDiL Lens 120W LED Outdoor Street LampLED Street light SpecificationsModel PL-LD-067PL-LD-067PL-LD-067Input Voltage100-305 V ACPower30W 40W 50W 60W70W 80W 90W 100w 120W150W 180W 200WSize(mm)600*210*109mm706*265*119mm880*352*140mm LED chipLumileds 3030S......
Send Inquiry
Product Description
IP66 Waterproof 2700k-6500k Meanwell Driver LEDiL Lens 120W LED Outdoor Street Lamp
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference between LEDs and lamp fixture.
Q:What is colour temperature?
A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized in CTT(kelvin). For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation, while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance. Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time.
| LED Street light Specifications | |||

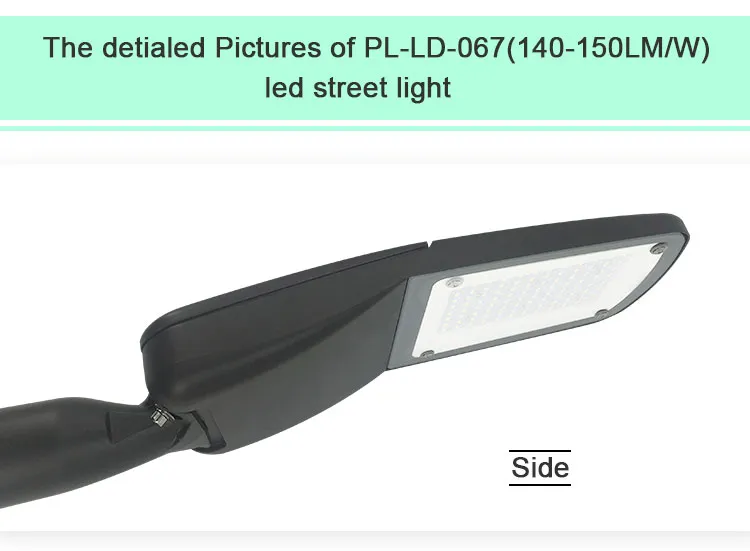

| Model | PL-LD-067 | PL-LD-067 | PL-LD-067 |
| Input Voltage | 100-305 V AC | ||
| Power | 30W 40W 50W 60W | 70W 80W 90W 100w 120W | 150W 180W 200W |

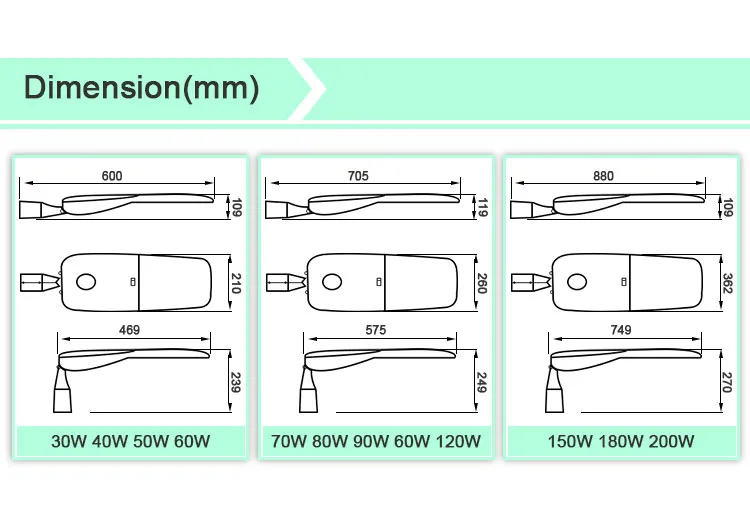

| Size(mm) | 600*210*109mm | 706*265*119mm | 880*352*140mm |
| LED chip | Lumileds 3030SMD | ||
| CRI | Ra>70/80 | ||
| Power Factor | >0.95 | ||
| Light efficiency | 150LM/W±5% | ||
| Beam angle | T2 T3 T4 T5 | ||
| LED driver brand | HONTEK ,Inventronics , Meanwell driver ELG/HLG series | ||
| Surge protection | 6KV/10KV/20KV as customers' rerquirement | ||
| Waterproof and IK | IP66 IK10 | ||
| Housing material | Die-cast Aluminum +Steel glass | ||
| Work temperature | -50°C ~ +50°C | ||
| Lifespan | 100000 hours | ||
| Control | Photocell ,0-10V;dimming range;DALI | ||
| Certificates | CE ROHS SAA CB ENEC IK10 IP66 LM80 LM79 TM21 | ||
| warranty | 5 -8years | ||
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference between LEDs and lamp fixture.
Q:What is colour temperature?
A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized in CTT(kelvin). For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation, while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance. Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time.
