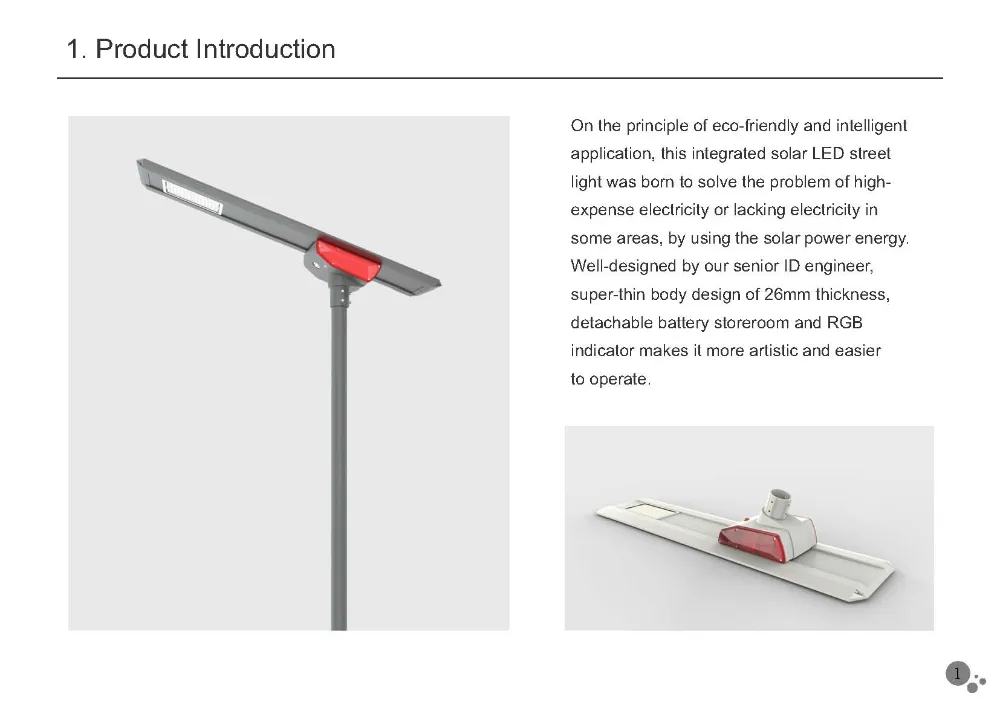

IST7 Integrated solar street light
| Parameter: | ||||
| Model | IST7-4530 | IST7-5540 | IST7-6550 | IST7-7560 |
| Product specifications | ||||
| LED light source | 30W | 40W | 50W | 60W |
| Lamp type | SMD5050 | SMD5050 | SMD5050 | SMD5050 |
| Lamp beads | 42PCS | 42PCS | 60PCS | 60PCS |
| Panel type | Monocrystalline silicon | |||
| Panel power | 45W/12V | 55W/12V | 65W/12V | 75W/12V |
| Lithium battery type | Ternary lithium | |||
| Lithium battery capacity | 23AH/12V | 29AH/12V | 31AH/12V | 36AH/12V |

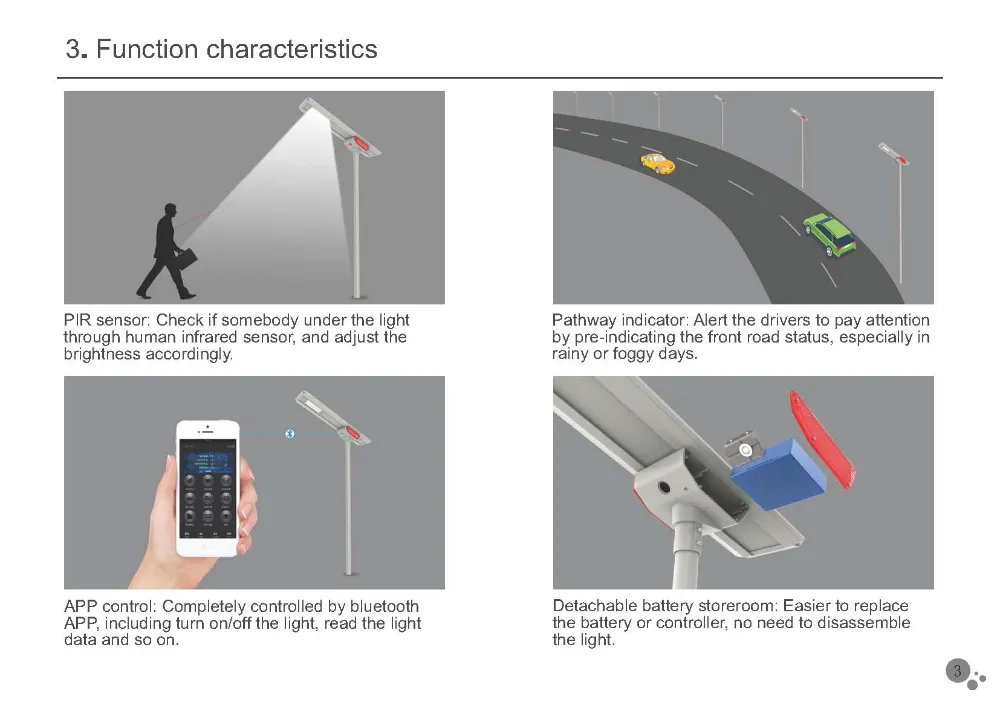

| Induction method | Infrared induction | |||
| Panel size | 925x360X270mm | 1105x360X270mm | 1250x360X270mm | 1430x360X270mm |
| Light output | ||||
| Power source | 30W | 40W | 50W | 60W |
| Overall lighting effect | >150 lm/W | |||
| Beam angle | 140°x70° | |||
| Color temperature | 4000K /5000K /6000K | |||
| Light output ratio | 1-4 hours,100%-50%;5-6 hours, 60%-30%;7-12 hours, 50%-20%,Can be set according to customer requirements | |||
| Working time at full power (100%) | 6.5H | 6.5H | 6.5H | 6.5H |
| Energy saving state (30%) working time | >36H | >36H | >36H | >36H |
| Time required to fully charge at low voltage | 6-8H | 6-8H | 6-8H | 6-8H |
| Open light threshold | 15 LX | 15 LX | 15 LX | 15 LX |
| Environmental parameters | ||||
| Charging temperature | 0ºC~60ºC | |||
| Discharge temperature | -20ºC~60ºC | |||
| Storage temperature | -20ºC~45ºC | |||
| Installation suggestion | ||||
| Installation height | 4~6m | 5~8m | 6~9m | 7~10m |
| Light pole distance | 12~18m | 15~24m | 18~27m | 21~30m |
Packaging data (light body):
| Model | Product Size mm (L*W*H) | Package dimensionsmm(L*W*H) | QTY | N.W/G.W(KG) |
| IST7-4530 | 925X360X270 | 1 PCS | 15.3/17. 6 | |
| IST7-5540 | 1105X360X270 | 1 PCS | 16.5/18.8 | |
| IST7-6550 | 1250X360X270 | 1 PCS | 16.8/19.5 | |
| IST7-7560 | 1430X360X270 | 1 PCS | 18.0/ 22.8 |
