Kingsun 50W Integrated Solar Street Light with Camera
50W Integrated All in one Solar LED Street Light With CameraFeatures:1).all in one: solar panel,battery,controller and LED lamp are integrated into one body,very easy to install and ship.2).Our material is anodized aluminium alloy, rust proof, dust proof.3).Battery is eco-friendly,long-life,high cap......
Send Inquiry
Product Description

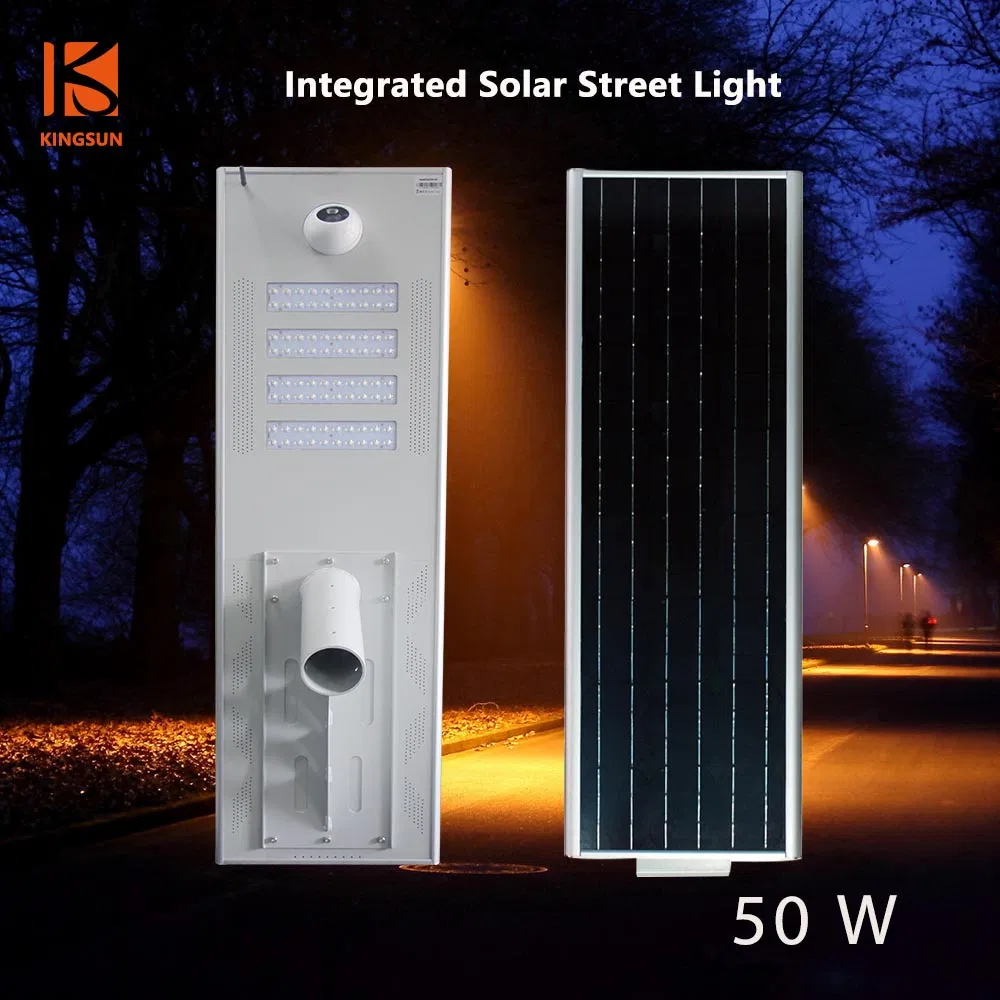

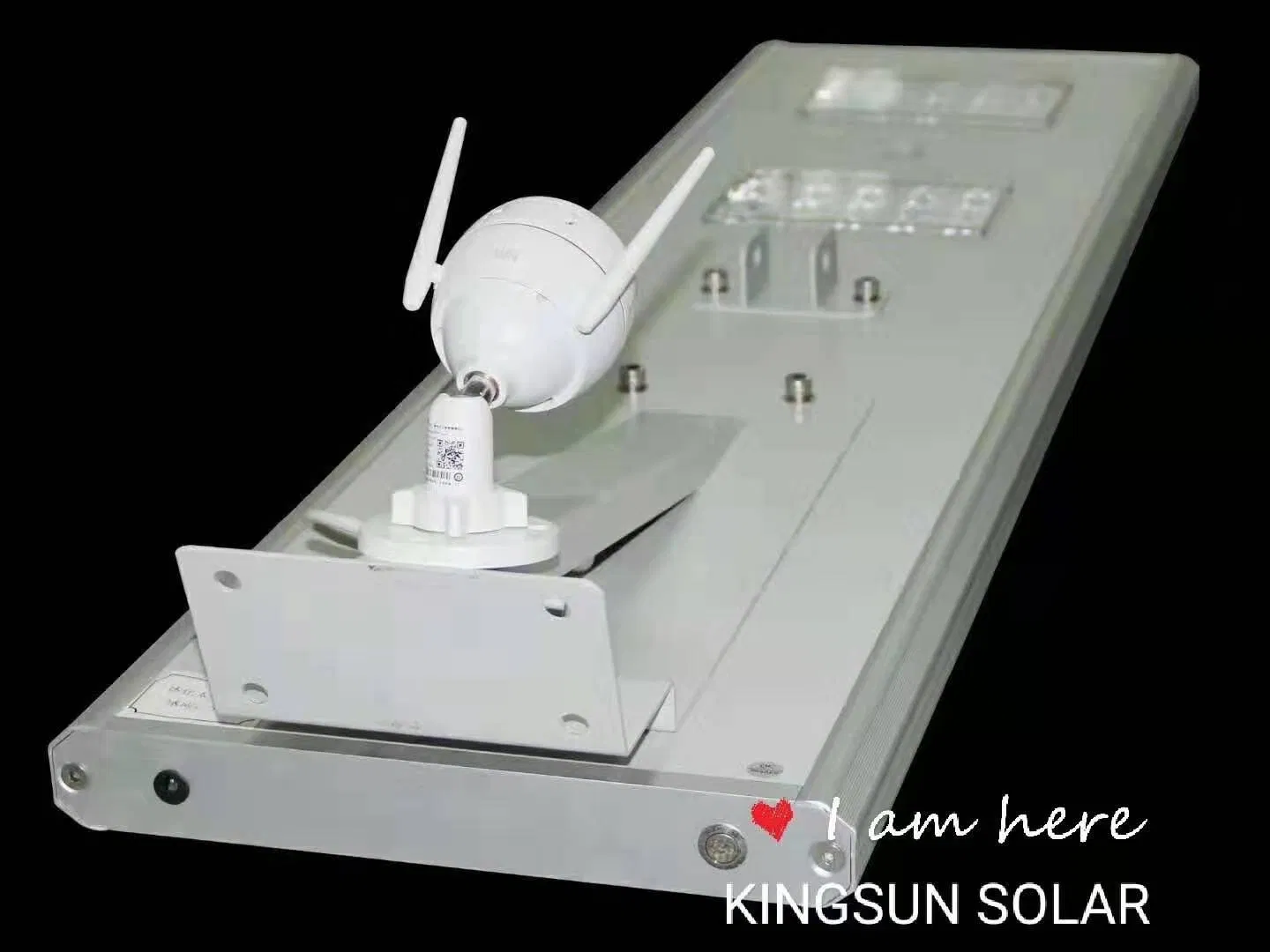

50W Integrated All in one Solar LED Street Light With Camera
Features:
1).all in one: solar panel,battery,controller and LED lamp are integrated into one body,very easy to install and ship.
2).Our material is anodized aluminium alloy, rust proof, dust proof.
3).Battery is eco-friendly,long-life,high capacity LifePO4 battery, not ordinary lead acid battery.
4).Led lamps are from Bridgelux in USA with high brightness, the lamps are brighter than the same lever power.
5).waterproof grade reach to IP65.
6).humanized PIR motion sensor: adpot the PIR motion control technology, lamp will light up when people pass by and dim down when people go away.
Parameter:
Application:
Widely used in the road, street, and factory, park road, rural, mountainous area and the remote area lighting project, courtyard, schools, square and other need to place for outdoor lighting.
Relation Product:
Packing and Shipping

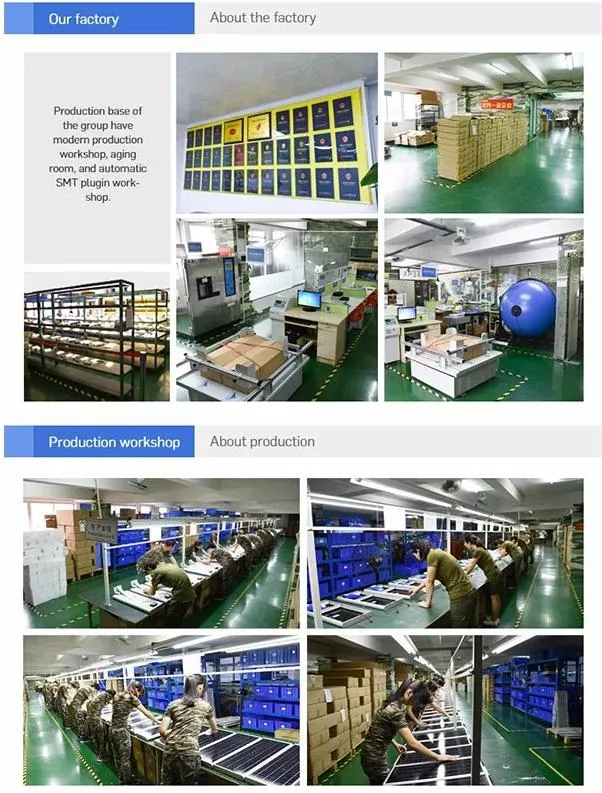

Company Profile
Nanjing KingSun Solar Technology Co., Ltd., covering an area of 66, 700 square meters, is a professional manufacturer and supplier of Solar Modules, Solar Power Systems, Solar Street Lights, Solar Fridges, Solar Air-conditioners, Solar Fans, Solar Insect Killer Lamps, LED Modules and Lithium Battery Packs, etc. in China that located at Nanjing City.
Our products are exported to Europe, Middle East, Africa, South America, Australia, New Zealand and Asia countries with TUV IEC61215 & 61730, ISO, CE and RoHS certificates of international quality standard, also we have flexible and timely after-sales service. We offer all products with high quality and sustainable service to our customers and establishing a long-term cooperative relationship with them.
Certification:
Why Choose KINGSUN SOLAR
1) Excellent quality, competitive price, prompt delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We pass the authentication of ISO, RoHS, TUV, and CE approval
OUR CUSTOM SERVICE
Service Policy
KSUN's Warranty Policy are provided by Nanjing KingSun Solar Technology Co., Ltd. ("KSUN") and cover defects in workmanship and materials. KSUN offers to our customers the following limited warranty, the Solar Panel / Module, Inverter device, Solar Power System ( not include Storage Battery) and its components mentioned in User's Manual shall be provided with 18 months' warranty for normal use (man-made malfunctions excepted) starting from the date of shipment from KSUN's factory. In certain places where local laws have special provisions for the term of warranty, the foregoing term shall not be applicable. This warranty offers special legal rights. You are entitled to other rights pursuant to local laws. The Buyer/Customer is responsible for certain service and maintenance expenses. Please contact KSUN Customer Service for further details on specific products.
The following situation is not covered by the warranty:
* Finished goods lost or serial number manipulated;
* Loss or damage due to force majeure or external reasons;
* Misuse, accident, negligence, unauthorized alteration or repair;
* overuse;
* Violation of operation stipulations.
KSUN Solar can provide custom or OEM service with the latest solar technologies to our clients. With our in-house R&D team and management team for over 10 years' experience in solar industry, we are capable of making custom solar panel in a variety of size, shapes and outputs according to customer's specific requirements, and provide solar technical support starting from our client's initial produce development stage.
Payment Terms & Delivery Time
FAQ
Q1: Are you a manufacturer or a trade company?
A1: We are a manufacturer , we have our own factory , we can guarantee the delivery and quality of our products.
Q2. Can I have a sample order for led light?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A3: Samples within 3 days, big order within 1-2 weeks.
Q4. Do you have any MOQ limit for led light order?
A4: Low MOQ, 1pc for sample checking is available.
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. What about Payment?
A6:Bank Transfer (TT), Paypal,Western Union
30% the amount should be paid before producing,the balance 70% of the payment should be paid before shipping.
Q7. Can you do the design for us?
Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q8. How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
Q9. What is your terms of delivery?
We accept EXW, FOB, C&F, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Contact information:
Features:
1).all in one: solar panel,battery,controller and LED lamp are integrated into one body,very easy to install and ship.
2).Our material is anodized aluminium alloy, rust proof, dust proof.
3).Battery is eco-friendly,long-life,high capacity LifePO4 battery, not ordinary lead acid battery.
4).Led lamps are from Bridgelux in USA with high brightness, the lamps are brighter than the same lever power.
5).waterproof grade reach to IP65.
6).humanized PIR motion sensor: adpot the PIR motion control technology, lamp will light up when people pass by and dim down when people go away.
Parameter:
| Main Lamps material | Aluminium Alloy | ||||
| Solar panel | Max Power | 18V100W | |||
| Battery | Type | Solar energy Lithium battery 12V45AH (adjustable) | |||
| LED | Led chip brand | Bridgelux from USA with high brightness | |||
| Lumen(LM) | 5000LM equal to 50W | ||||
| CCT (k) | 6000k-7000k | ||||
| Life Time | 50000 hours | ||||
| Camera | Pixel | 1,100,000 pixel | |||
| Video Compression | Adopt H.264 Main Profile and Baseline profile compression algorithm, Image is more clear, less code flow, be easy to network transmission, and storage space save | ||||
| Network function | 1,Support the double stream monitor at the same time; 2,Support mobile phone to see; 3,Support 6 users monitor the IP Camera at the same time; 4,Build-in WEB SERVER, Support IE browse and parameter setting, use one port for data transmitting, making it easy for users to network Settings; 5,Support 802.11b/g/n agreement,can be built-in wifi module, Flexible forming wireless monitoring environment; 6,Supports four regional Motion Detection and alarm linkage call presets; | ||||
| storage | Biggest support 32G TF card store, the default with 16G TF card | ||||
| Interface | WIFI | ||||
| Lighting Viewing Angle | 150°×70° | ||||
| Working TEMP( ºC ) | -20~+60 | ||||
| Charge time(by sun): | 6-8hours (with enough strong shine) | ||||
| Discharge time | 10-12 hours per night 5-7 rainy days | ||||
| Certificate | CE/ROHS/IP65 | ||||
| Packing | Product size | 1469*420*398mm | |||
| Packing size | Box 1:1540*530*200mm(lamp body) Box 2 :690*290*410mm(Supportor+Accessories) | ||||
| Net weight | 28.5kg | ||||
| Gross weight | 33KG | ||||
| Q'ty/ctn | 1sets/2carton | ||||
| Packs Containers | 20ft container | 145pcs | |||
| 40gp container | 290pcs | ||||
| Installation height | 7-8meters | Suggestion distance | 25-30meters | ||

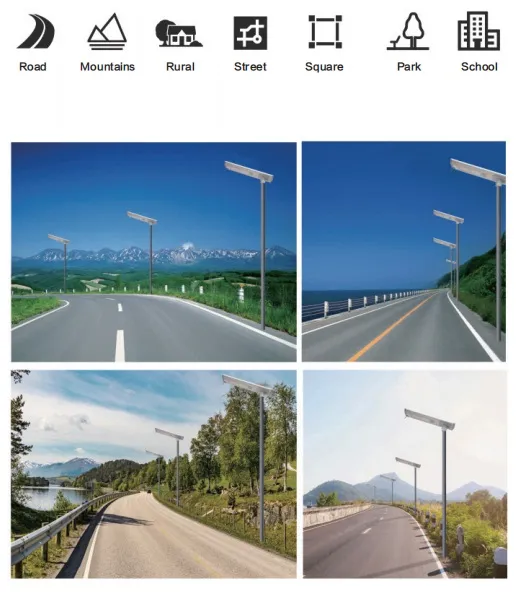

Application:
Widely used in the road, street, and factory, park road, rural, mountainous area and the remote area lighting project, courtyard, schools, square and other need to place for outdoor lighting.
Relation Product:
| LED Watt | 20W | 30W | 40W | 50W | 60W | 70W | 80W |
| Solar Panel | 18V 25W Poly | 18V 30W Poly | 18V 38W Poly | 18V 45W Poly | 18V 50W Poly | 18V 60W Poly | 18V 70W Poly |
| Lithium Battery | Li-ion 12V 10Ah LiFePO4 12.8V 9Ah | Li-ion 12V 15Ah LiFePO4 12.8V 12Ah | Li-ion 12V 20Ah LiFePO4 12.8V 15Ah | Li-ion 12V 25Ah LiFePO4 12.8V 18Ah | Li-ion 12V 25Ah LiFePO4 12.8V 21Ah | Li-ion 14.8V 20Ah LiFePO4 12.8V 24Ah | Li-ion 14.8V 25Ah LiFePO4 12.8V 27Ah |
| LED Brand | BridgeLux from USA | ||||||
| Lumen | 2000lm | 3000lm | 4000lm | 5000lm | 6000lm | 7000lm | 8000lm |
| Lighting Angel | 150*70° | ||||||
| CCT | 6000-6500K, OEM is welcome | ||||||
| Lifespan | 50000H | ||||||
| Working TEMP | -20 - +60ºC | ||||||
| Waterproof | IP65 | ||||||
| Charging Time | 8H | 10H | 10H | 10H | 10H | 8H | 8H |
| Discharging Time | 10-12 hours per day,5-7 rainy days | ||||||
| Installation Height | 3-6m | 3-6m | 5-7m | 5-8m | 5-8m | 6-10m | 6-10m |
| Pole Diameter | 60-80mm | 60-80mm | 60-100mm | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
| Motion Sensoir | Detection angle120°Effective Range (Distance) 7-12m | ||||||
| Working Mode | Motion mode:working 12 hours,No motion(30%)+ Motion(100%)+ Induction lasts for 25 seconds. Timer control:12 hours working time,1H(70%)+2H(100%)+2H(50%)+7H(30%) Mixed mode:12 hours working time,5H(40%)+7H(No motion(30%)+ Motion(100%)+ Induction lasts for 25 seconds), OEM order is welcome. | ||||||
PIR | Effective Range (Distance): 10 Meters (Stansard) 1. Get the remote control and unplug the battery separator on the back of the remote control to power on the remote control. 2. Before using the remote control, make sure that the main power switch on the integrated light panel must be turned on. Otherwise, it cannot be remotely controlled. 3. When using, the integrated lamp should be within 10 meters of the remote control, and the remote control should be directed at the infrared human body sensing lens. 4. The power switch on the remote control can be used to control the light on and off. It can't be charged after being turned off, and it can't be discharged. 5. Turn on the switch on the remote control, press the SET button once, then press the work mode button once, and automatically enter the selected working mode after a delay of 3 seconds. 'T' represents the time control mode; 'I' represents the sensing mode; 'TI' represents the mixed mode, the first half of the night control mode, the second half of the night sensing mode. | ||||||
| Certificates | CE / RoHS / TUV / IP65 | ||||||

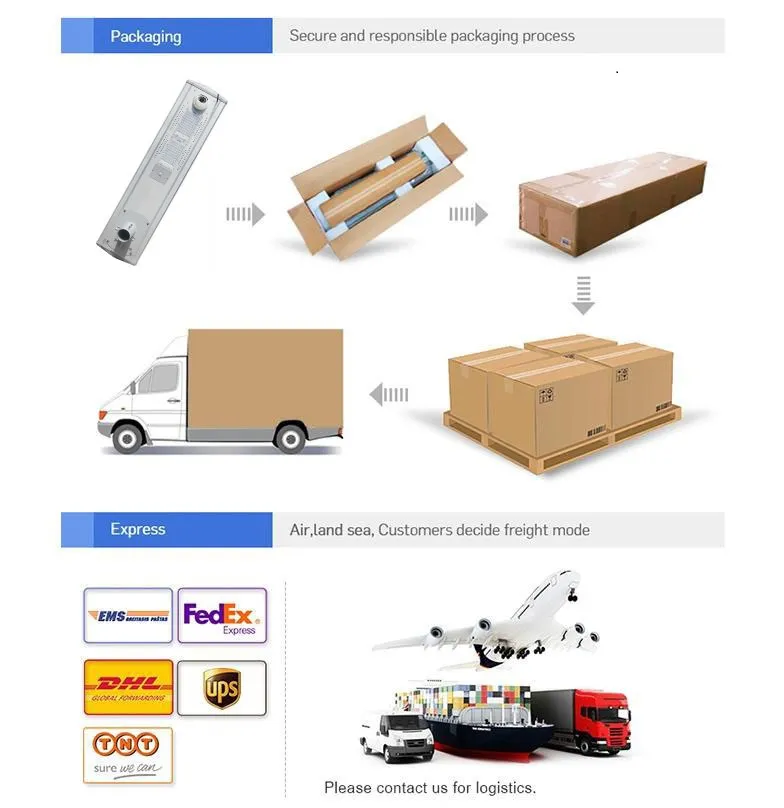

Packing and Shipping
Company Profile
Nanjing KingSun Solar Technology Co., Ltd., covering an area of 66, 700 square meters, is a professional manufacturer and supplier of Solar Modules, Solar Power Systems, Solar Street Lights, Solar Fridges, Solar Air-conditioners, Solar Fans, Solar Insect Killer Lamps, LED Modules and Lithium Battery Packs, etc. in China that located at Nanjing City.
Our products are exported to Europe, Middle East, Africa, South America, Australia, New Zealand and Asia countries with TUV IEC61215 & 61730, ISO, CE and RoHS certificates of international quality standard, also we have flexible and timely after-sales service. We offer all products with high quality and sustainable service to our customers and establishing a long-term cooperative relationship with them.
Certification:
Why Choose KINGSUN SOLAR
1) Excellent quality, competitive price, prompt delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We pass the authentication of ISO, RoHS, TUV, and CE approval
OUR CUSTOM SERVICE
Service Policy
KSUN's Warranty Policy are provided by Nanjing KingSun Solar Technology Co., Ltd. ("KSUN") and cover defects in workmanship and materials. KSUN offers to our customers the following limited warranty, the Solar Panel / Module, Inverter device, Solar Power System ( not include Storage Battery) and its components mentioned in User's Manual shall be provided with 18 months' warranty for normal use (man-made malfunctions excepted) starting from the date of shipment from KSUN's factory. In certain places where local laws have special provisions for the term of warranty, the foregoing term shall not be applicable. This warranty offers special legal rights. You are entitled to other rights pursuant to local laws. The Buyer/Customer is responsible for certain service and maintenance expenses. Please contact KSUN Customer Service for further details on specific products.
The following situation is not covered by the warranty:
* Finished goods lost or serial number manipulated;
* Loss or damage due to force majeure or external reasons;
* Misuse, accident, negligence, unauthorized alteration or repair;
* overuse;
* Violation of operation stipulations.
KSUN Solar can provide custom or OEM service with the latest solar technologies to our clients. With our in-house R&D team and management team for over 10 years' experience in solar industry, we are capable of making custom solar panel in a variety of size, shapes and outputs according to customer's specific requirements, and provide solar technical support starting from our client's initial produce development stage.
Payment Terms & Delivery Time
| Payment Terms | T/T | EXW | 30% T/T in advance, the balance to be paid before dispatch |
| FOB | |||
| CIF | 30% T/T in advance, the balance to be paid against the copy of B/L | ||
| CFR (C&F) | |||
| L/C | Irrevocable L/C at sight could be accepted if amount above US $50,000.00 | ||
| West Union | Amount lower than US$2,000.00 | ||
| O/A | 30% T/T in advance, the balance to be paid by O/A is acceptable after confirmation | ||
| Delivery Time | 7 to 10 working days after receiving advanced payment | ||
FAQ
Q1: Are you a manufacturer or a trade company?
A1: We are a manufacturer , we have our own factory , we can guarantee the delivery and quality of our products.
Q2. Can I have a sample order for led light?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A3: Samples within 3 days, big order within 1-2 weeks.
Q4. Do you have any MOQ limit for led light order?
A4: Low MOQ, 1pc for sample checking is available.
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. What about Payment?
A6:Bank Transfer (TT), Paypal,Western Union
30% the amount should be paid before producing,the balance 70% of the payment should be paid before shipping.
Q7. Can you do the design for us?
Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your idea and we will help to carry out your ideas. It does not matter if you do not have someone to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q8. How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
Q9. What is your terms of delivery?
We accept EXW, FOB, C&F, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Contact information:
