Product Description

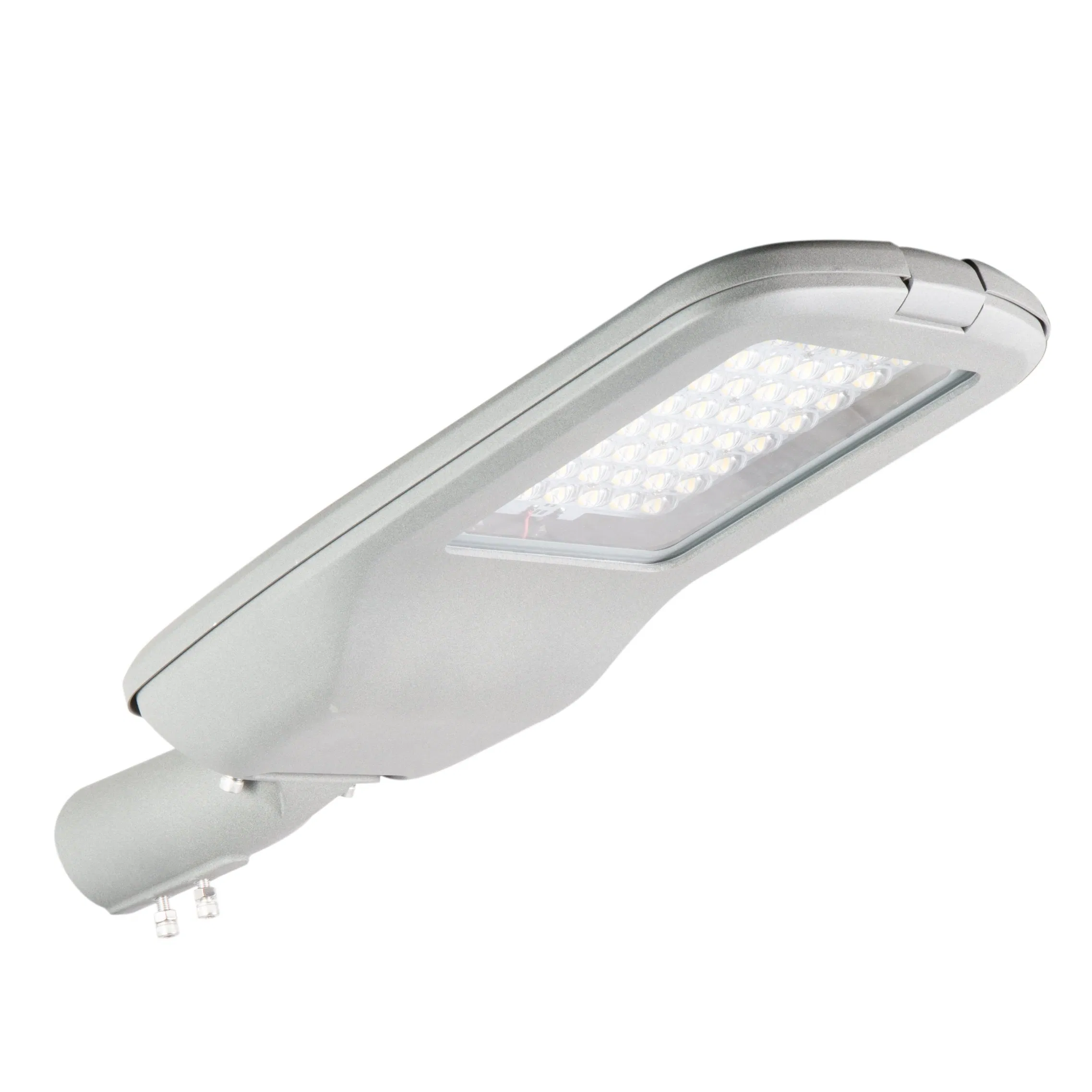

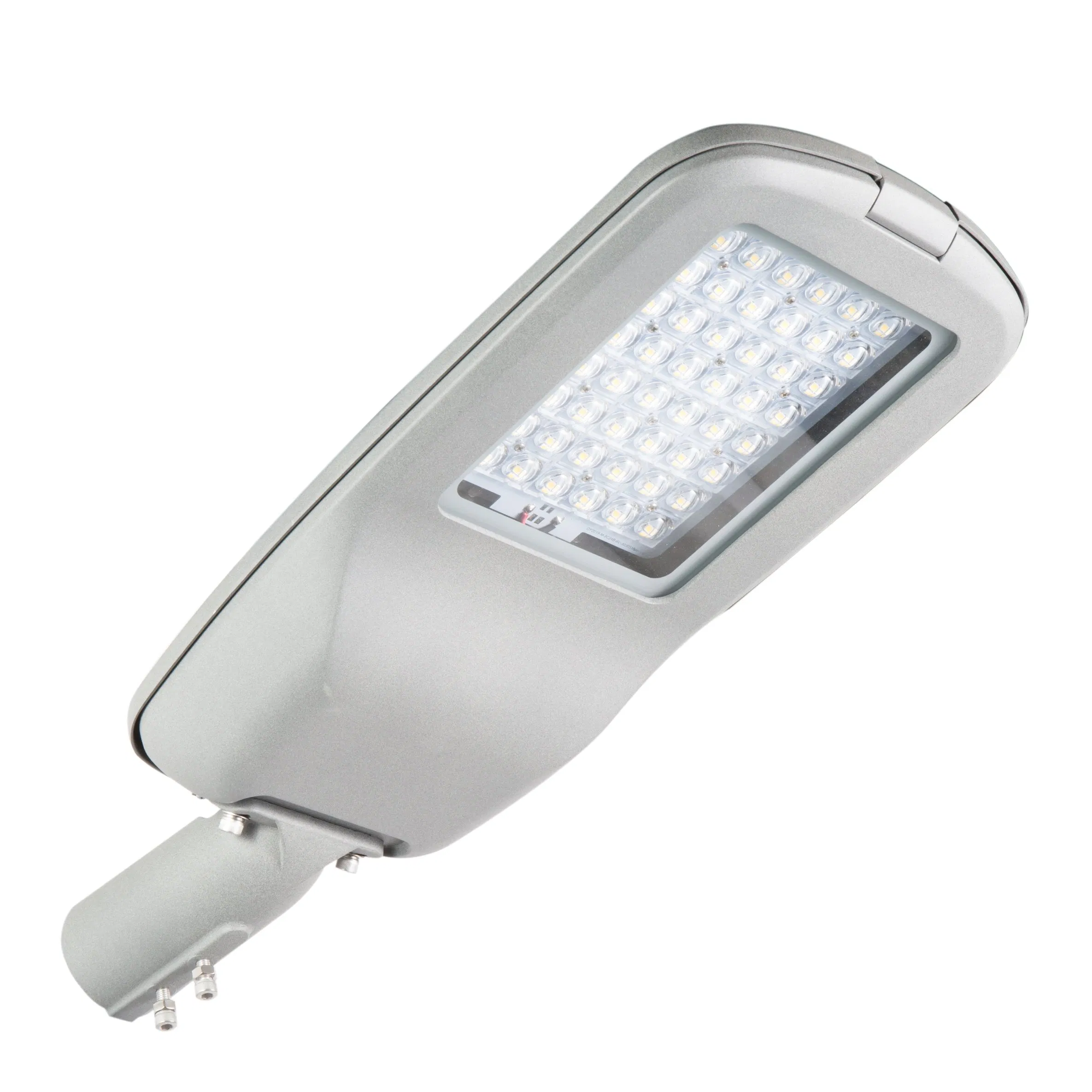

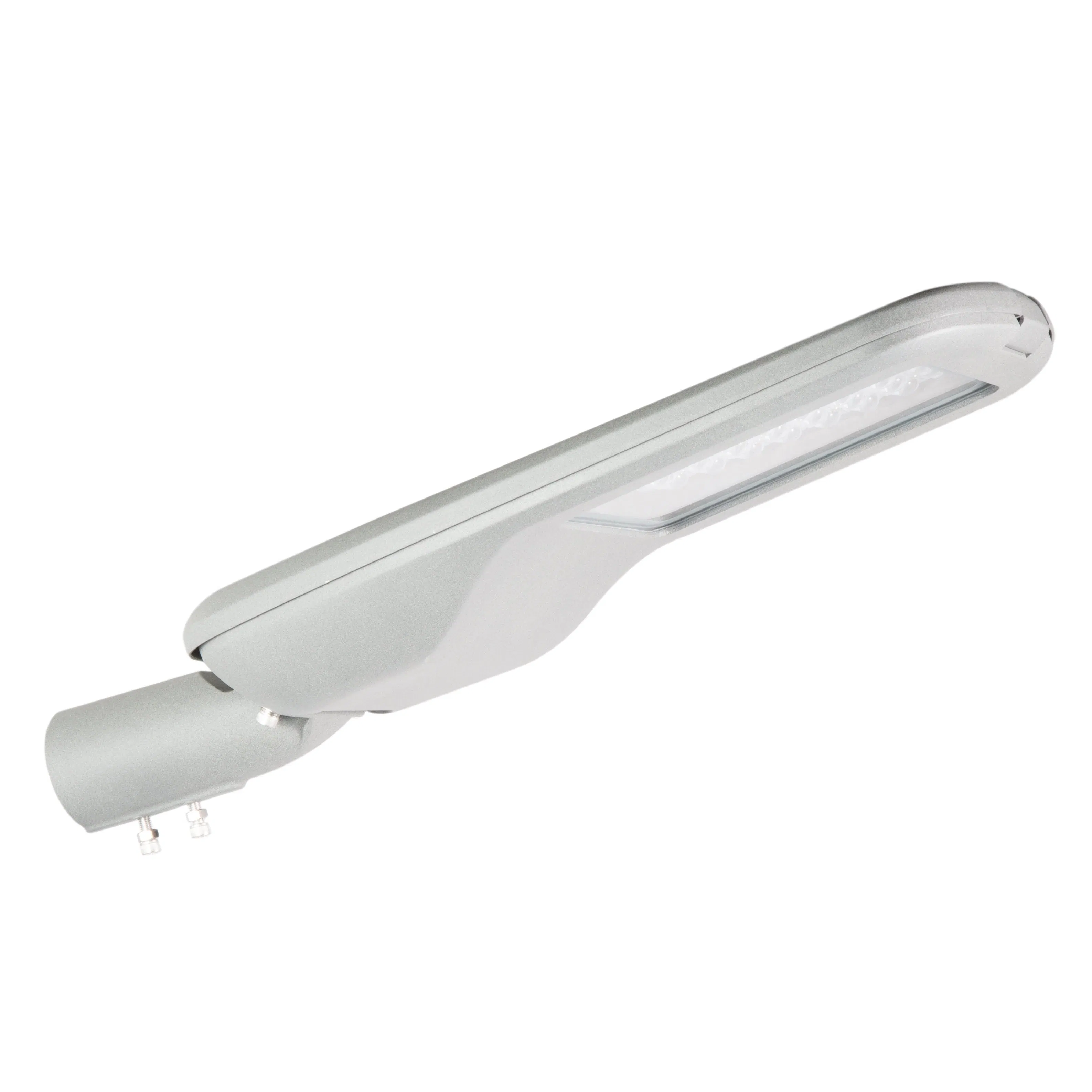

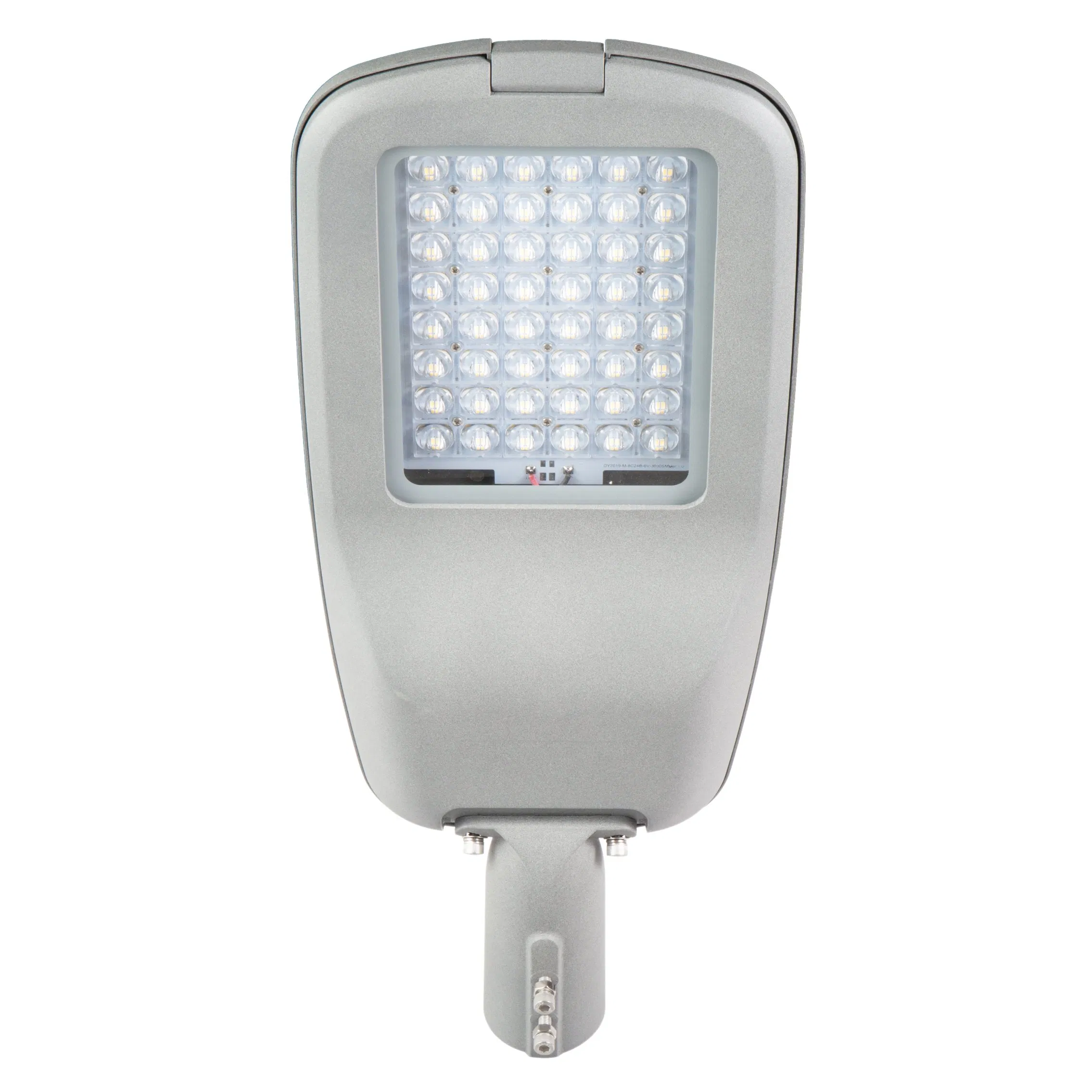

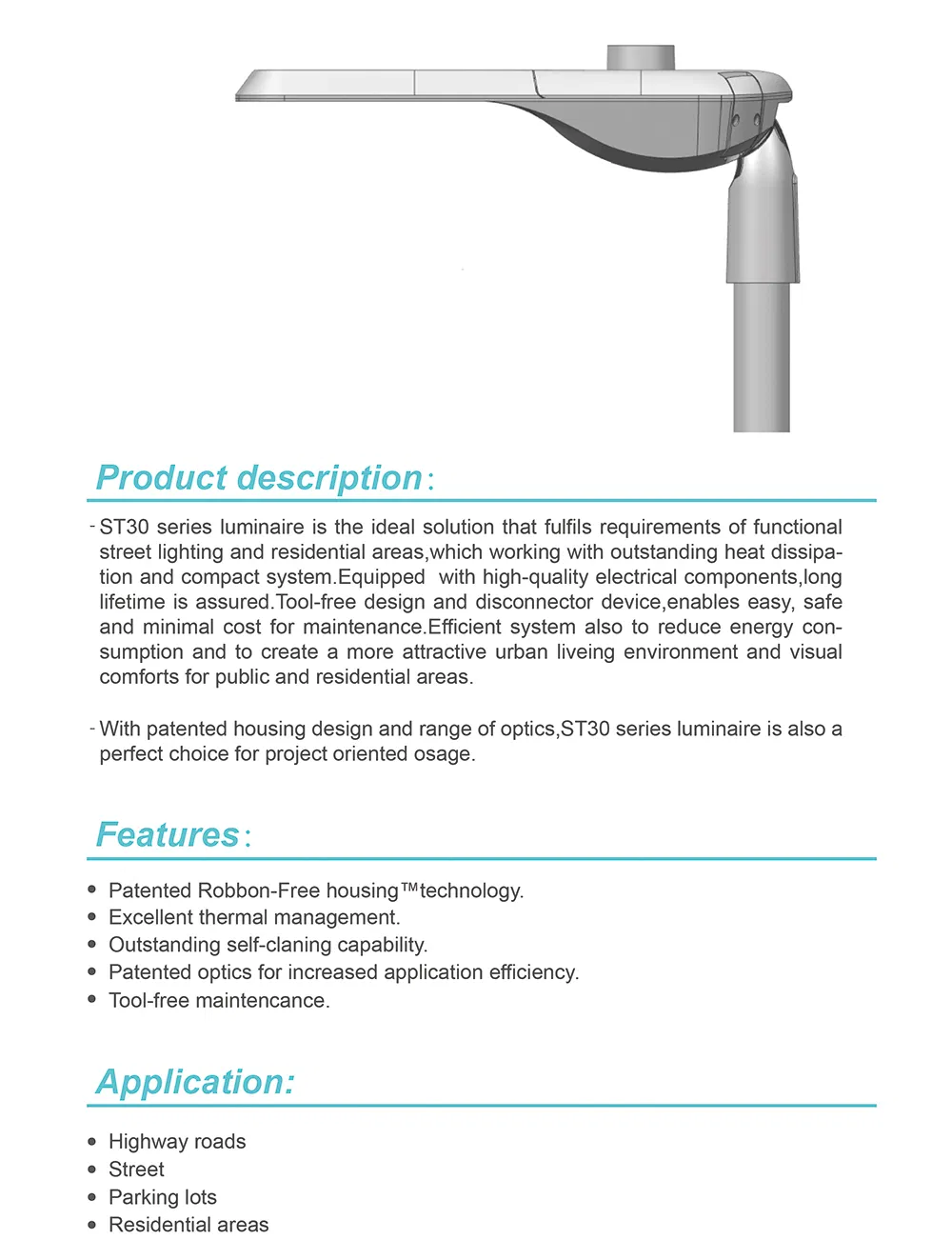

LED Parking Lot Lighting LED Street Shoebox Pole Light
| model | ST30-60WS | ST30-80WS | ST30-100WS | ||||||
| Rated Power | 60W | 80W | 100W | ||||||
| LED type | SMD 3030 | SMD 3030 | SMD 3030 | ||||||
| Driver type | 144PCS | 144PCS | 144PCS | ||||||
| Chips connection | 8S18P | 8S18P | 8S18P | ||||||
| Lumen efficency | >130LM/W | ||||||||
| CCT | 3000/4000K/5000K/5700K, according to customer needs | ||||||||
| Beam angle | TYPE II/ TYPE III/ TYPE IV/ TYPE V,Optional | ||||||||
| RA | >70 or >80,according to customer needs | ||||||||
| Operating Voltage | 100-277V | ||||||||
| Power factor PF | >0.95 | ||||||||
| Drive type | MW, INVENTRONICS or SOSEN,according to customer needs | ||||||||
| Dimming method | Ordinary, 0-10V, PMW, DALI and remote intelligent control, according to the actual needs of customers; can also be installed with light controller | ||||||||
| Product Size | 585x250x110mm | 585x250x110mm | 585x250x110mm | ||||||
| Lamp body material | Die-cast aluminum body + tempered glass cover + 304 stainless steel screws | ||||||||
| Lamp housing spraying | Dark gray, light gray or silver grey | ||||||||
| Installation diameter | Ф50 or Ф60mm,Optional | ||||||||
| Protection level | IP66/IK09 | ||||||||
| Lightning protection level | 10KV or 20KV,according to customer needs | ||||||||
| Operating temperature | -35ºC~+50ºC | ||||||||
| Working humidity | 10%~90% | ||||||||
| Life/warranty period | 50,000hrs / 3Years | ||||||||
| model | ST30-100WM | ST30-120WM | ST30-150WM | ||||||
| Rated Power | 100W | 120W | 150W | ||||||
| LED type | SMD 3030 | SMD 3030 | SMD 3030 | ||||||
| Driver type | 192PCS | 192PCS | 192PCS | ||||||
| Chips connection | 8S24P | 8S24P | 8S24P | ||||||
| Lumen efficency | >130LM/W | ||||||||
| CCT | 3000/4000K/5000K/5700K, according to customer needs | ||||||||
| Beam angle | TYPE II/ TYPE III/ TYPE IV/ TYPE V,Optional | ||||||||
| RA | >70 or >80,according to customer needs | ||||||||
| Operating Voltage | 100-277V | ||||||||
| Power factor PF | >0.95 | ||||||||
| Drive type | MW, INVENTRONICS or SOSEN,according to customer needs | ||||||||
| Dimming method | Ordinary, 0-10V, PMW, DALI and remote intelligent control, according to the actual needs of customers; can also be installed with light controller | ||||||||
| Product Size | 670x275x110mm | 670x275x110mm | 670x275x110mm | ||||||
| Lamp body material | Die-cast aluminum body + tempered glass cover + 304 stainless steel screws | ||||||||
| Lamp housing spraying | Dark gray, light gray or silver grey | ||||||||
| Installation diameter | Ф60mm | ||||||||
| Protection level | IP66/IK09 | ||||||||
| Lightning protection level | 10KV or 20KV,according to customer needs | ||||||||
| Operating temperature | -35ºC~+50ºC | ||||||||
| Working humidity | 10%~90% | ||||||||
| Life/warranty period | 50,000hrs / 3Years | ||||||||
