LED Street Light Enclosure Mlt- Slh -Ds-II

Product Description

LED Street Light Enclosure MLT-SLH-DS-II

Categories

Brief Introduction

This LED Street Light Enclosure fixture MLT-SLH-DS-II is the small size of SMD LED Street Light Enclosure fixture from Moonlight LED street light D series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this LED Street Light Enclosure can be used for variety of LED roadway lighting applications.

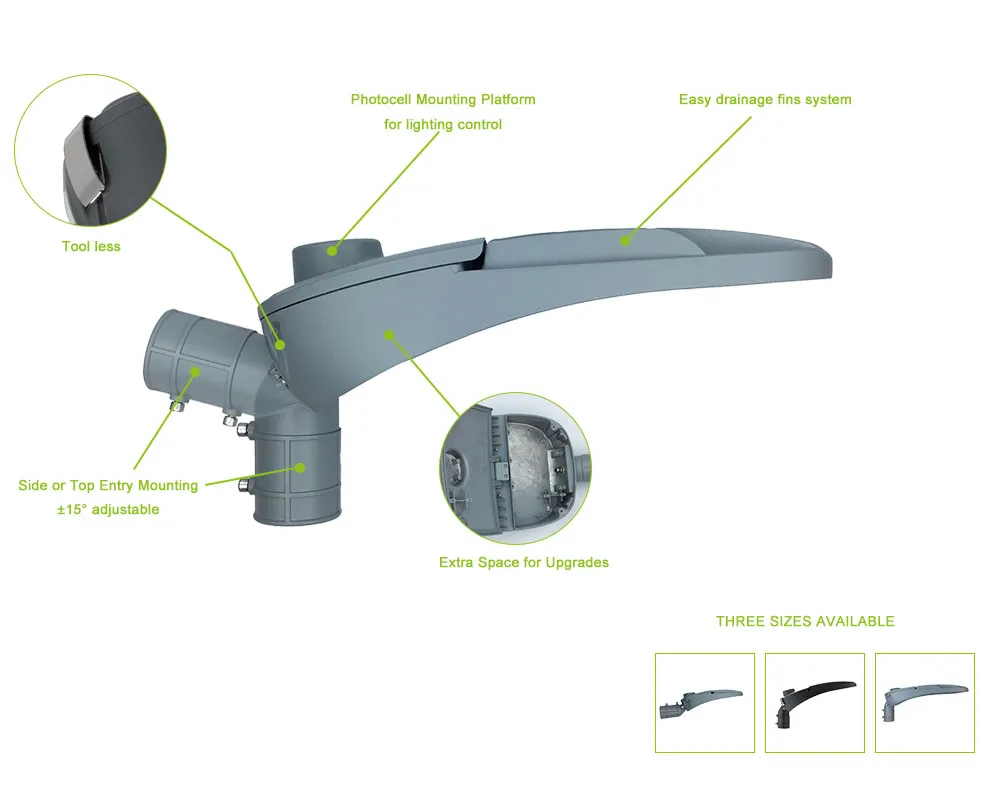

Feature

Durable aluminum alloy die-casting LED Street Light Enclosure for heavy-duty outdoor lighting applications.
Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
Easy drainage fins system.
Separate LED light engine and driver box for easy maintenance.
Tool-less design for replace the LED driver without any tool.
Large driver box complies with Meanwell HVG series drivers.
Both cover and bottom of the driver box have the GND bosses for security.
Plastic electrostatic spraying to resist corrosion, chipping and fading.
Adjustable knuckle slip fitter with SUS304 stainless steel hardware secures fixture to pole arm.
5mm high light transmittance tempered glass diffuser.
Silicon gaskets.
SUS304 stainless steel bolts and clips for fastening
Standard S6000 socket and twist lock photocell mounting platform for lighting control.
Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.
IP66 rated, protect from all dust and harsh weather.
Standard Gray finish.
Easy to assemble, install and linemen friendly maintain.

LED Street Light Enclosure Mlt-Slh-Ds-II

Parameter

Model No.	LED Street Light Enclosure MLT-SLH-DS-II

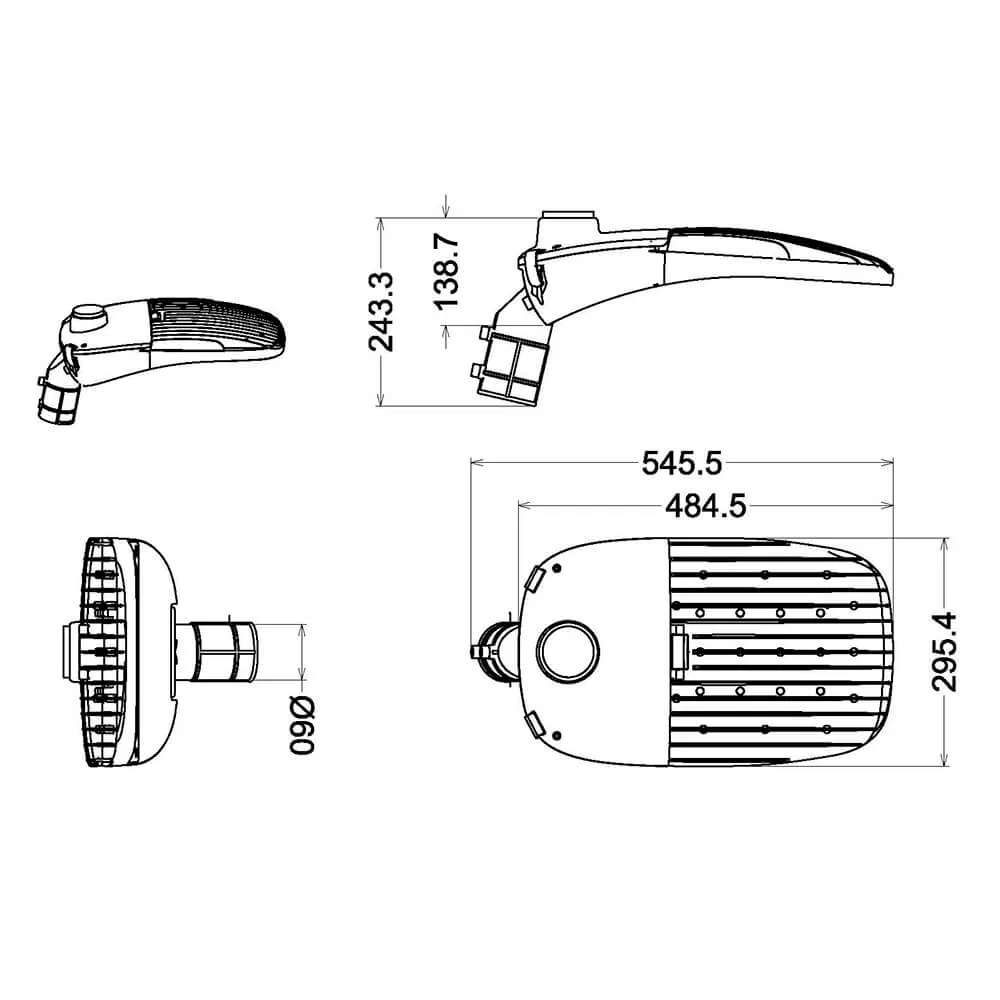

Dimension of Housing	54.6cm(L)29.5cm(W)24.3cm(H)
Fixture Material	Die-casting Aluminum Alloy
Surface Finish Color	Gray or Customized color
Material of Diffuser	High Transmittance Tempered glass
Effective MCPCB Mounting Size	252mm(L)*222mm(W)
Recommended LED Power	30W to 100W
Driver Box Dimension	260mm(L)85mm(W)65mm(H)
Pole Mounting	Accommodates up to Φ65mm pipe
Adjustable Slip Fitter	-15°to +15°
Standard Photocell	Optional
Quick Disconnection Terminal Block	Optional
IP Rating	IP66

Packing Information

Net Weight	5.00kg/PCS
Gross weight	6.08kg/carton
Quantity	1PCS/ carton
Carton Size	63.5cm(L)33.5cm(W)19.5cm(H)

Application

This heavy-duty, modern design and cost-effective LED Street Light Enclosure fixture is typically used as 30W-100W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.

LED Street Light Enclosure Mlt-Slh-Ds-II

Packing
LED Street Light Enclosure Mlt-Slh-Ds-II

FAQ

Q1: How could I get a sample?
A1: Email us the models and quantity of our LED light housings you need, and tell us your express account number for shipment, then we send you the PI. When you have transferred the money, send us the TT copy for check. We will send out samples within 3 working days after we get the payment for general models of our LED lighting fixtures.

Q2: How to place an order?
A2: Email order details to sales department including items model number, quantity, destination port (we need it to calculate the shipping cost), selling countries, consignee's contact information including detail address and phone fax number and email address, notify party, etc.

Q3: Could we place order by OEM or ODM style to produce our own brand products in your factory?
A3: Of course you can. Welcome to do OEM or ODM Order for our LED lighting fixtures. What you need to do is to send us the Drawing of your style with products, and we will submit sample or prototype of LED light housings to you for your approval.

Q4: What kind of shipment will you use?
A4: EMS, TNT, DHL, FEDEX, AIR WAY, SEALAND. Because our LED lighting fixtures especially LED street light housings are very heavy, normally we will choose the most economic way for the shipment. But if you need the samples urgently, please kindly remind us.

Q5: How soon we can get the shipment?
A5: It depends on your models of LED light housings you have selected and order volume. Please tell us the models and quantity, so we can confirm with you via Email.

Q6: Can I choose a custom color?
A6: Yes. You can. But the powder supplier will request a MOQ for the coating powder of our LED light housing, and the delivery time will be a little longer for the special color LED lighting fixture.

Q7: How long warranty do you provide for your products?
A7: We provide 3-year warranty only for quality-related issues of our LED lighting fixtures. Once the quality problem is confirmed, you can request free replacement for them.
