Meanwell Power Supply 40W Highway LED Street Lighting
MeanWell Power supply 40W highway led street lightingOverviewThe ZGSM® H4-Series LED street lights are using LUMILEDS® LUXEON 3030 2D luminous source,providing excellent lumen output,long-lasting stability and splendid sight.The ZGSM H4-Series LED street lights have a high luminous e......
Send Inquiry
Product Description
MeanWell Power supply 40W highway led street lighting
Overview
The ZGSM® H4-Series LED street lights are using LUMILEDS® LUXEON 3030 2D luminous source,providing excellent lumen output,long-lasting stability and splendid sight.
The ZGSM H4-Series LED street lights have a high luminous efficiency and better service life. Provide 5 years warranty on luminaire.
Advantages
1. Lumileds 3030 Chips.
2. 40w per module.
2. Inventronics Programmable Driver.
3. Luminaire Efficacy up to 140lm/w.
4. Competitive price.
5. 7 years warranty.
Product Details
Company Overview
Our Services
1.Reply your inquiry in 24 working hours.
2.Customized design is available,OEM and ODM are welcomed.
3.Delivery the goods to our customer all over the word with speed and precision.
4.Offer customer the lowest price with high quality product
5.We can supply C/O (Certificate of Origin), saving approx 20% import duty.
IF YOU HAVE ANY QUESTION,PLS DO NOT HESITATE TO CONTACT WITH ME:
Kevin-Huang
zgdigital.en.made-in-china.com
Overview
The ZGSM® H4-Series LED street lights are using LUMILEDS® LUXEON 3030 2D luminous source,providing excellent lumen output,long-lasting stability and splendid sight.
The ZGSM H4-Series LED street lights have a high luminous efficiency and better service life. Provide 5 years warranty on luminaire.
Advantages
1. Lumileds 3030 Chips.
2. 40w per module.
2. Inventronics Programmable Driver.
3. Luminaire Efficacy up to 140lm/w.
4. Competitive price.
5. 7 years warranty.
Product Details

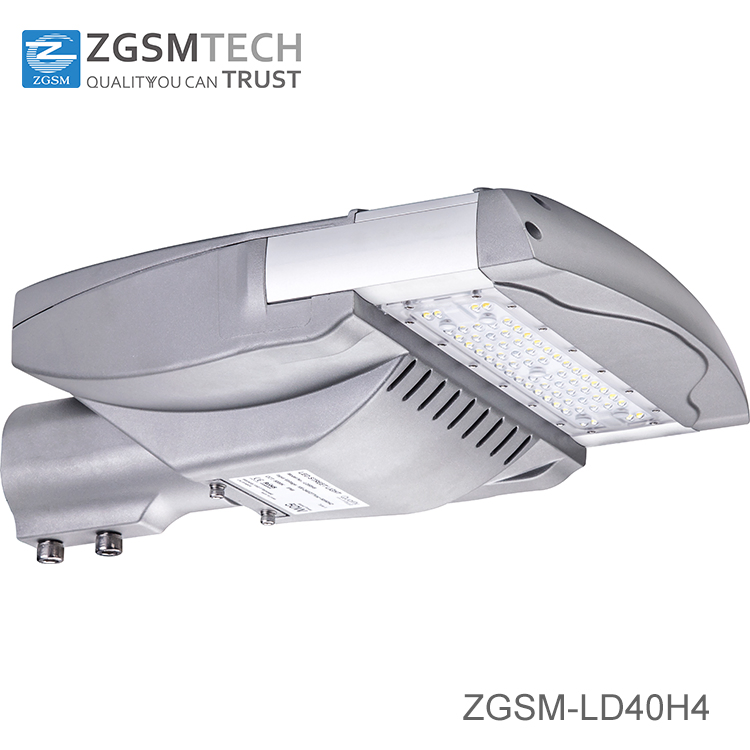

| Model | ZGSM-LD40H4 |
| LED Brand | LUMILEDS® LUXEON 3030X/LG |
| Driver Brand | Meanwell HLG series/ Inventronics |
| Norminal Wattage | 40W |
| LED Module Quantity | 1 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >140 lm /w |
| Lamp Rated Lumen output | 5600 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium,TypeV Short |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 431x316 x136 mm |
| Fixture Weight | 5.3 kg |
| Packing Dimension | 480x370 x200 mm |
| Packing Weight | 6.3KG |
