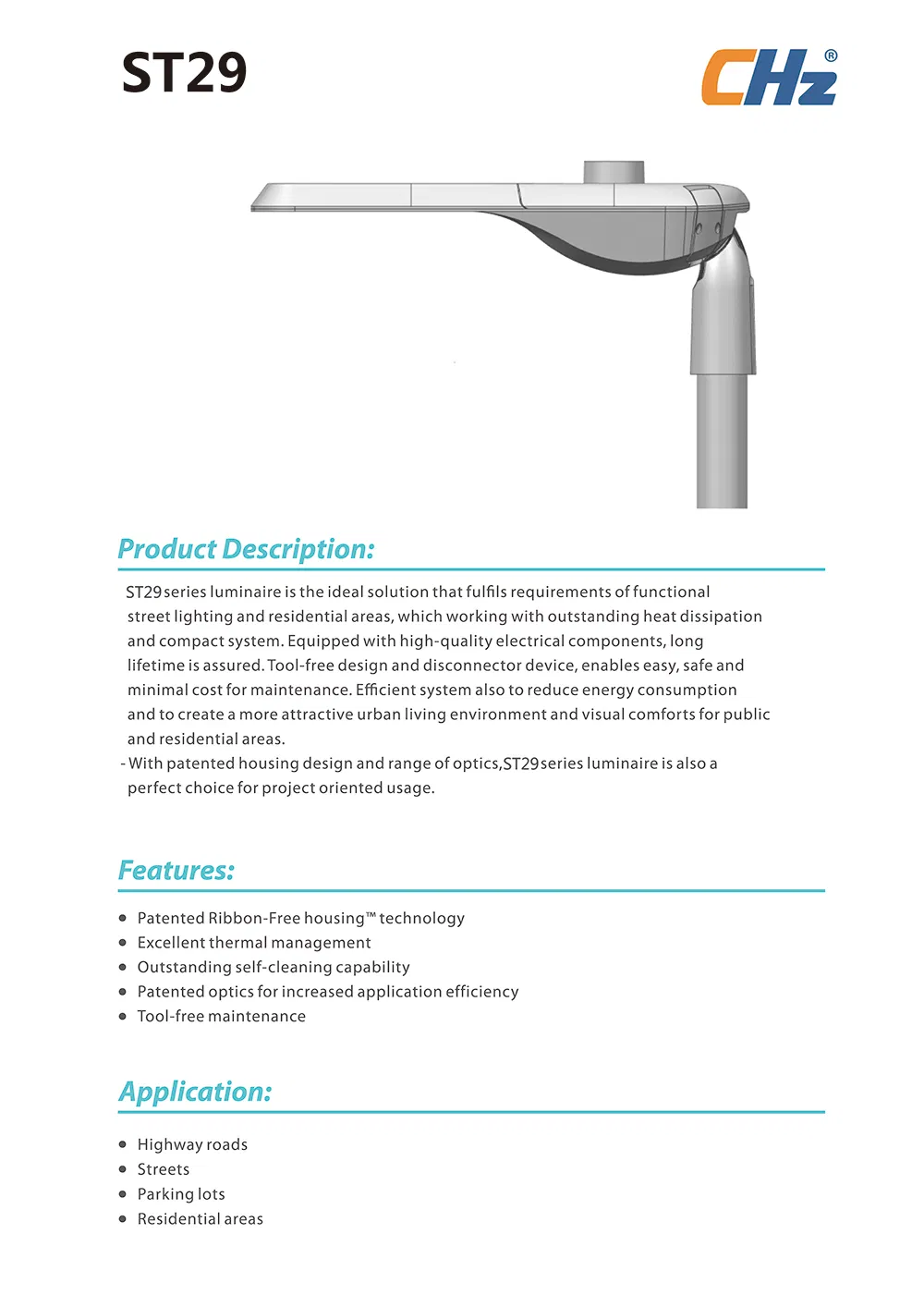

New Products Angle LED Street Outdoor Lamp Solar Lighting 3000K- 6500K
Specifications of led street lightModelST29-60WSST29-80WSST29-100WSPower80W90W100WLED typeSMD 3030SMD 3030SMD 3030LED`s144PCS72PCS108PCSConnection8S18P8S18P8S18PLumen(Lm/W)>130LM/WCCT3000K/4000K/5000K/5700K,According to the actual needs of customersBeam angle117°x 52° RA>70 or......
Send Inquiry
Product Description
Specifications of led street light
| Model | ST29-60WS | ST29-80WS | ST29-100WS |
| Power | 80W | 90W | 100W |
| LED type | SMD 3030 | SMD 3030 | SMD 3030 |
| LED`s | 144PCS | 72PCS | 108PCS |
| Connection | 8S18P | 8S18P | 8S18P |
| Lumen(Lm/W) | >130LM/W | ||
| CCT | 3000K/4000K/5000K/5700K,According to the actual needs of customers | ||
| Beam angle | 117°x 52° | ||
| RA | >70 or >80,According to the actual needs of customers | ||
| Drive type | 100-277V | ||
| Input Volt | >0.95 | ||
| PF | MW, INVENTRONICS or other, according to customer needs | ||
| control method | Ordinary, 0-10V, PMW, DALI and other intelligent controls, according to customer's actual needs | ||

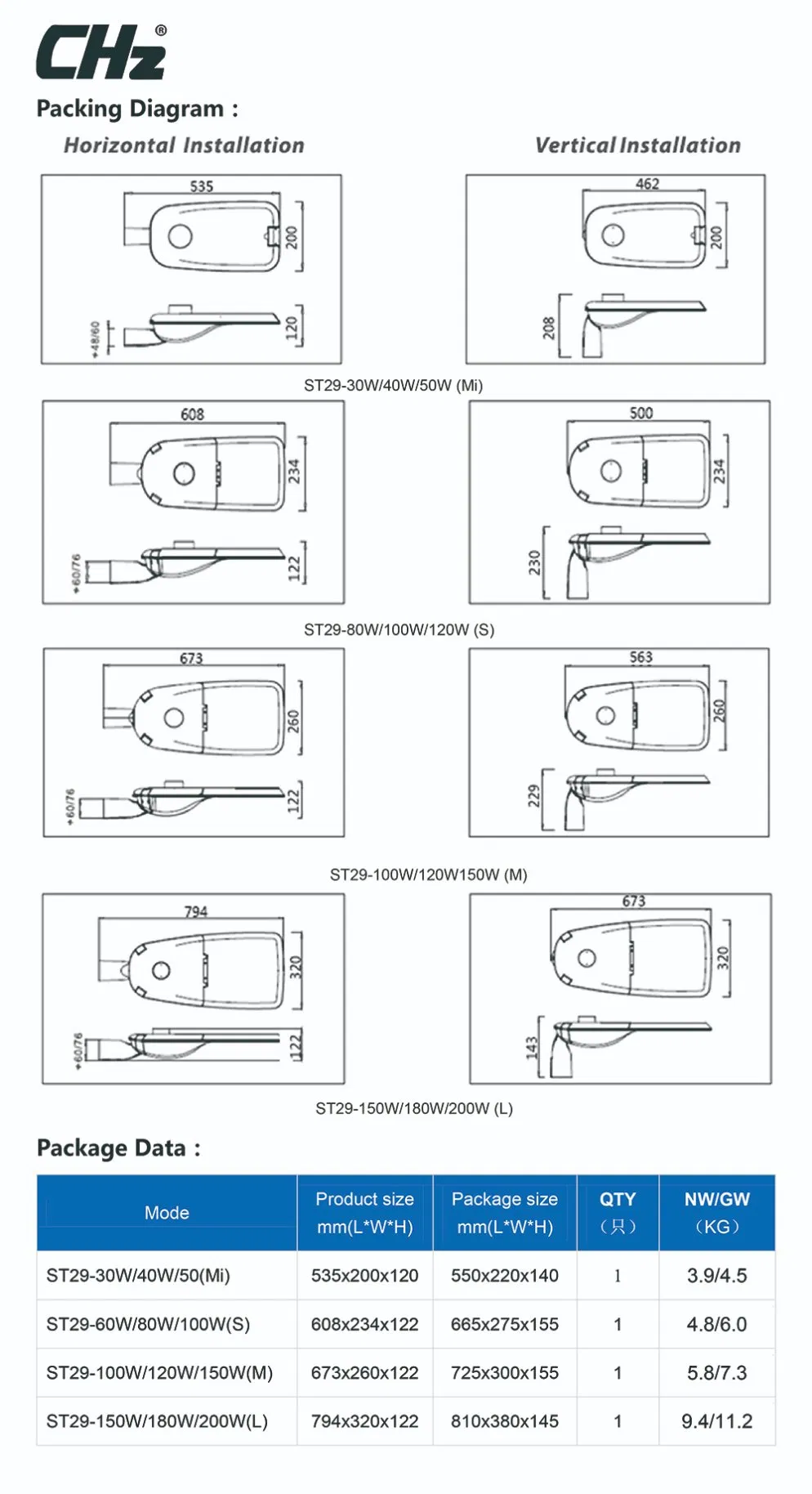

| Product Size | 551x244x193mm | ||
| Light body material | Die-casting aluminum lamp body + tempered glass cover +304 stainless steel screws | ||
| Light shell spraying | Gray, black or white | ||
| Installation diameter | Ф60 /Ф50mm | ||
| Protection level | IP66/IK08 | ||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | ||
| Work temp | -35ºC~+50ºC | ||
| Work humidity | 10%~90% | ||
| Life/Warranty | 50,000hrs / 5YEARS | ||
| Model | ST29-100WM | ST29-120WM | ST29-150WM |
| Power | 120W | 140W | 150W |
| LED type | SMD 3030 | SMD 3030 | SMD 3030 |
| LED`s | 192PCS | 192PCS | 192PCS |
| Connection | 8S24P | 8S24P | 8S24P |
| Lumen(Lm/W) | >130LM/W | ||
| CCT | 3000K/4000K/5000K/5700K,According to the actual needs of customers | ||
| Beam angle | 117°x 52° | ||
| RA | >70 or >80,According to the actual needs of customers | ||
| Drive type | 100-277V | ||
| Input Volt | >0.95 | ||
| PF | MW, INVENTRONICS or other, according to customer needs | ||
| control method | Ordinary, 0-10V, PMW, DALI and other intelligent controls, according to customer's actual needs | ||
| Product Size | 651x255x193mm | ||
| Light body material | Die-casting aluminum lamp body + tempered glass cover +304 stainless steel screws | ||
| Light shell spraying | Gray, black or white | ||
| Installation diameter | Ф60mm | ||
| Protection level | IP66/IK08 | ||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | ||
| Work temp | -35ºC~+50ºC | ||
| Work humidity | 10%~90% | ||
| Life/Warranty | 50,000hrs / 5YEARS | ||
| Model | ST29-160WL | ST29-180WL | ST29-200WL |
| Power | 160W | 180W | 200W |
| LED type | SMD 3030 | SMD 3030 | SMD 3030 |
| LED`s | 240PCS | 240PCS | 240PCS |
| Connection | 8S30P | 8S30P | 8S30P |
| Lumen(Lm/W) | >130LM/W | ||
| CCT | 3000K/4000K/5000K/5700K,According to the actual needs of customers | ||
| Beam angle | 117°x 52° | ||
| RA | >70 or >80,According to the actual needs of customers | ||
| Drive type | 100-277V | ||
| Input Volt | >0.95 | ||
| PF | MW, INVENTRONICS or other, according to customer needs | ||
| control method | Ordinary, 0-10V, PMW, DALI and other intelligent controls, according to customer's actual needs | ||
| Product Size | 794x320x122mm | ||
| Light body material | Die-casting aluminum lamp body + tempered glass cover +304 stainless steel screws | ||
| Light shell spraying | Gray, black or white | ||
| Installation diameter | Ф60mm | ||
| Protection level | IP66/IK08 | ||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | ||
| Work temp | -35ºC~+50ºC | ||
| Work humidity | 10%~90% | ||
| Life/Warranty | 50,000hrs / 5YEARS | ||
| Model | ST29-30WMi | ST29-40WMi | ST29-50WMi |
| Power | 30W | 40W | 50W |
| LED type | SMD 3030 | SMD 3030 | SMD 3030 |
| LED`s | 72PCS | 72PCS | 108PCS |
| Connection | 6S12P | 6S12P | 6S12P |
| Lumen(Lm/W) | >130LM/W | ||
| CCT | 3000K/4000K/5000K/5700K,According to the actual needs of customers | ||
| Beam angle | 117°x 52° | ||
| RA | >70 or >80,According to the actual needs of customers | ||
| Drive type | 100-277V | ||
| Input Volt | >0.95 | ||
| PF | MW, INVENTRONICS or other, according to customer needs | ||
| control method | Ordinary, 0-10V, PMW, DALI and other intelligent controls, according to customer's actual needs | ||
| Product Size | 535x200x120mm | ||
| Light body material | Die-casting aluminum lamp body + tempered glass cover +304 stainless steel screws | ||
| Light shell spraying | Gray, black or white | ||
| Installation diameter | Ф60 or Ф50mm | ||
| Protection level | IP66/IK08 | ||
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | ||
| Work temp | -35ºC~+50ºC | ||
| Work humidity | 10%~90% | ||
| Life/Warranty | 50,000hrs / 5 years | ||

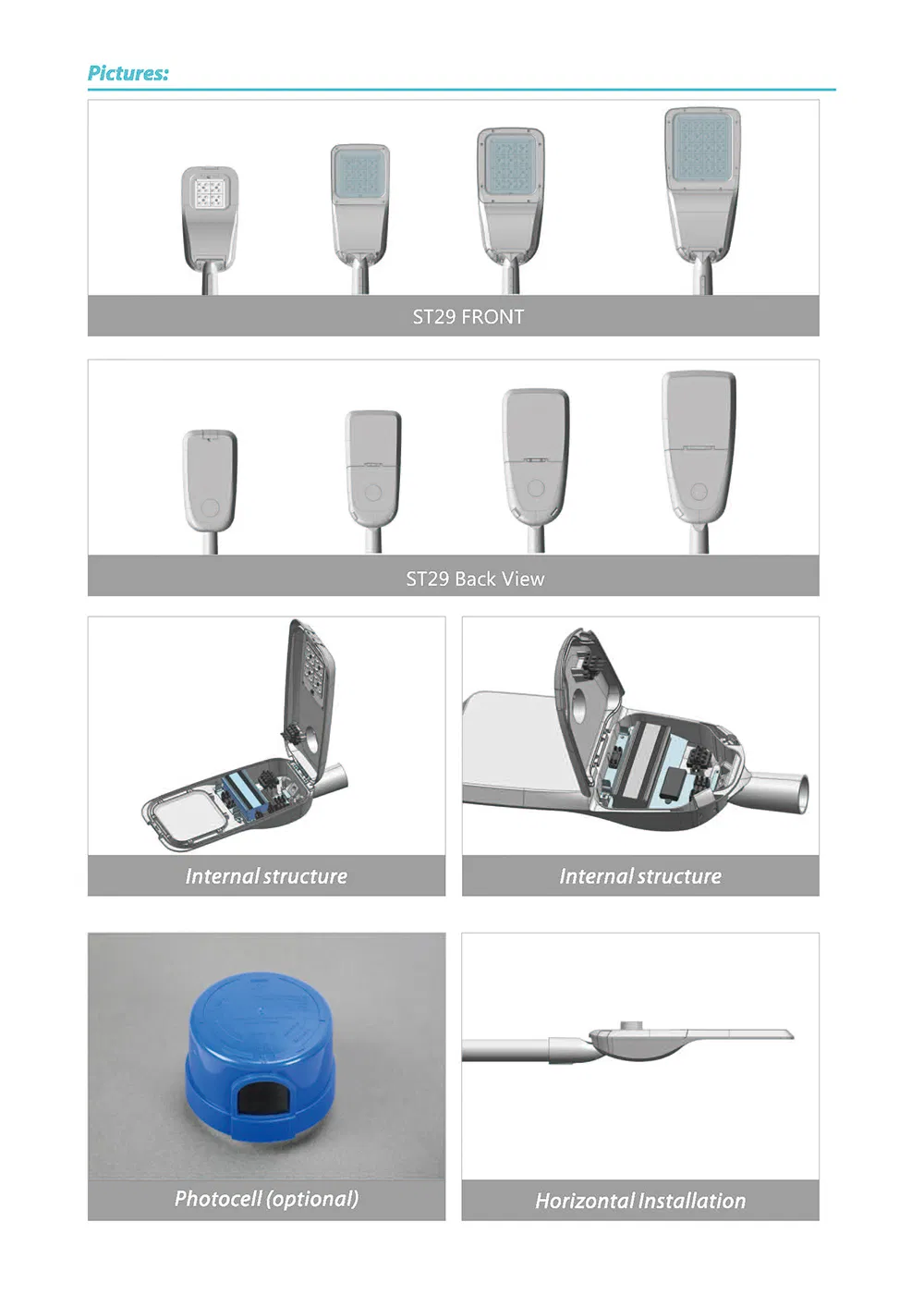

More details of led street light

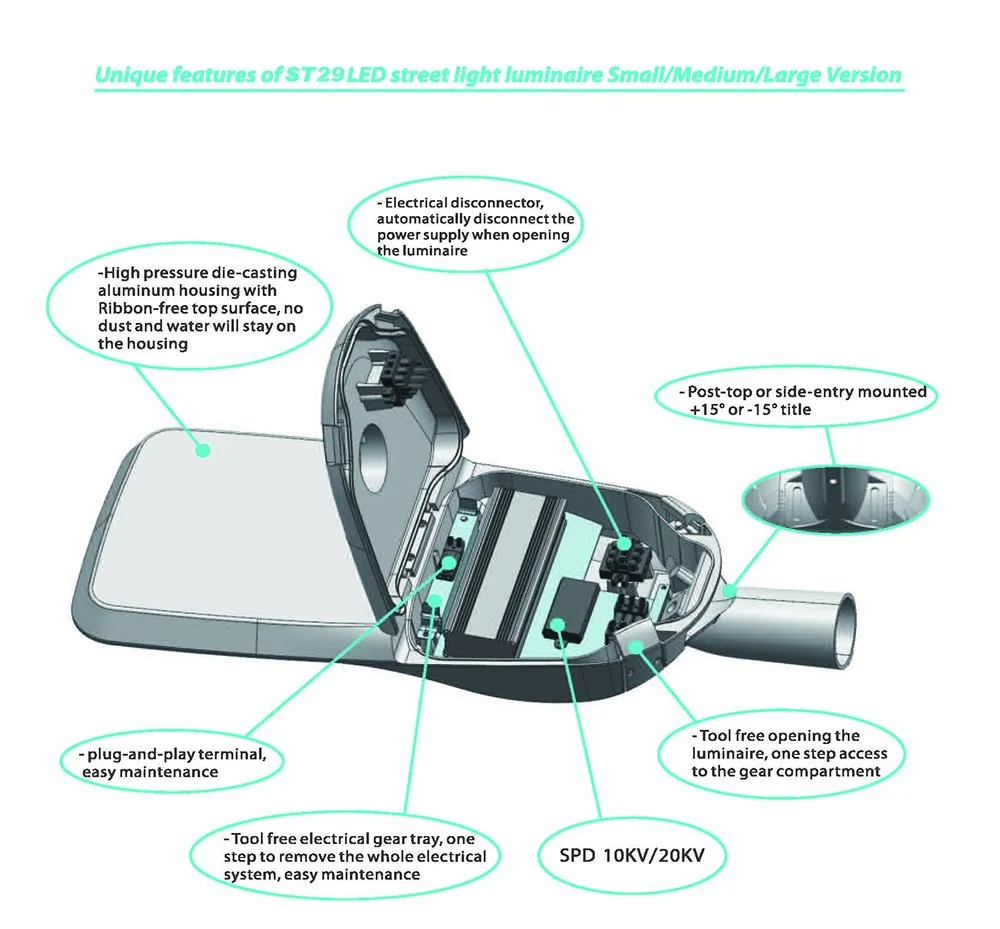

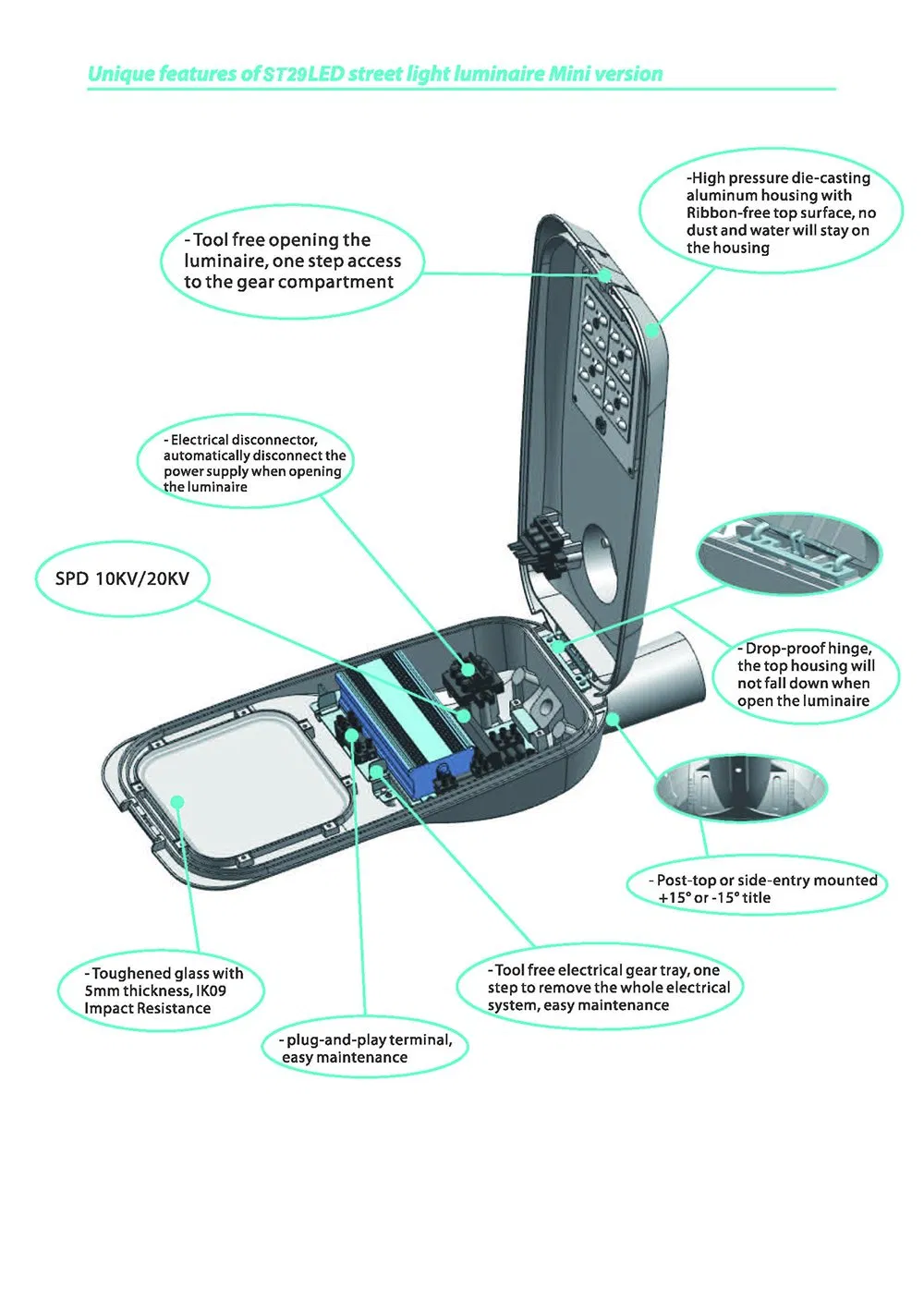

Products features
1) Overall aluminum die casting, heat sink fins, good heat dissipation;
2) High efficient SMD3030 Led chips and high quality driver, assures long lifetime;
3) Metal connection portion, all stainless steel, corrosion-resistant, durable;
4) Professional lens design, four different angles for different lighting requirements of the road;

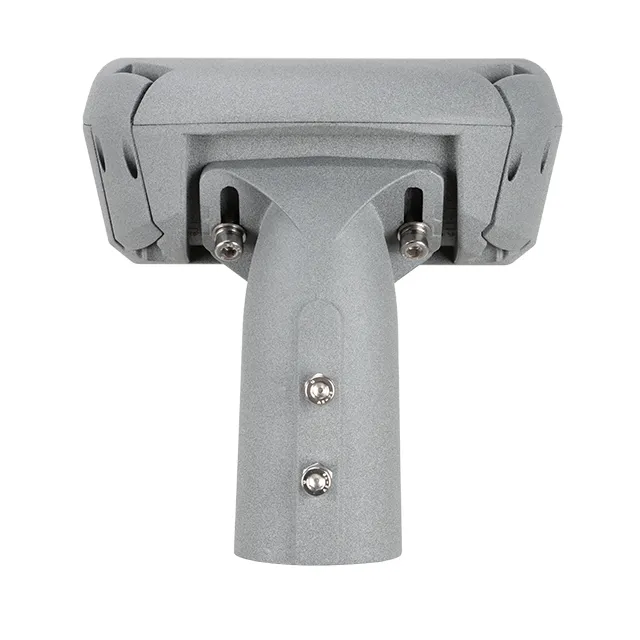

5) Lamp angle adjustable from 0-90 degree, either side-mounted, top-loading may be freely converted;
6) Using high quality led chip and constant current driver, stable overall performance, long life of 60,000 hours above.
