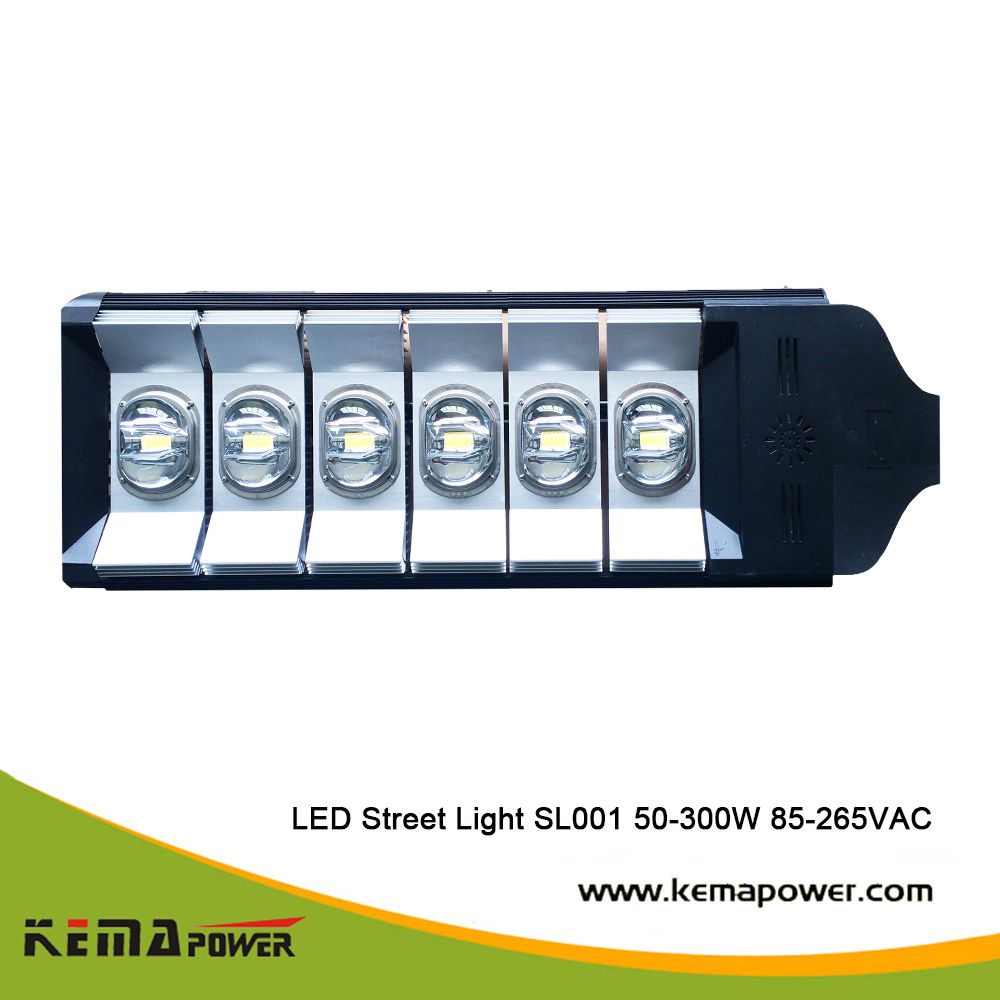

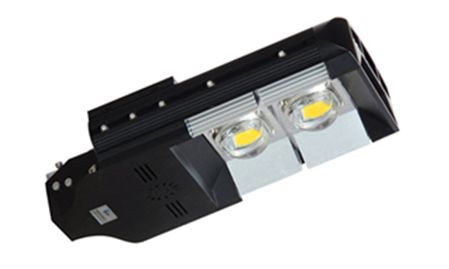

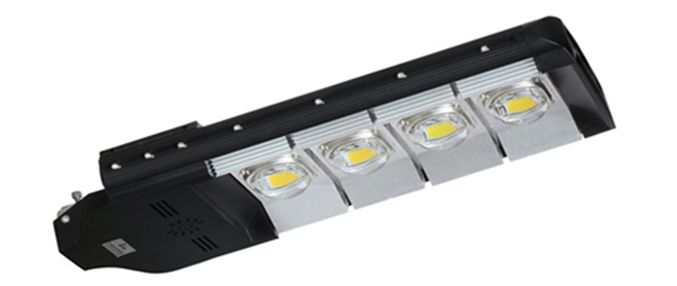

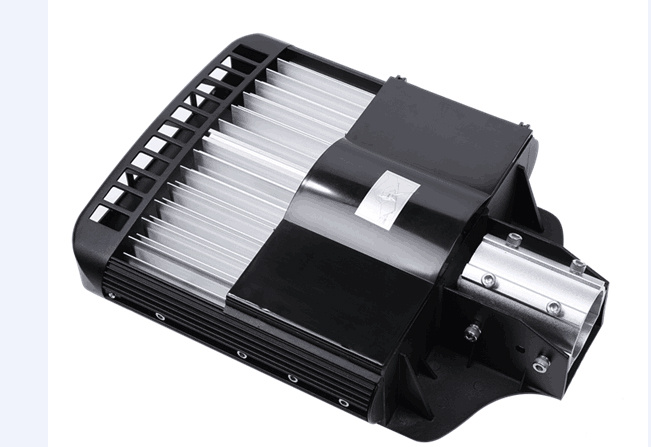

SL001 150W COB Adjustable Angle LED Road Light with Silicone Perfusion
SL001 150W COB adjustable angle LED Road Light with silicone perfusion KEY FEATURES *COB adjustable angle LED Street Light * Photocell Sensor is option * Light body: Die-casting Aluminum Alloy housing * Mask: high transmittance, high quality tempered glass * Meanwell driver silicone perfusion, water......
Send Inquiry
Product Description
KEY FEATURES
*COB adjustable angle LED Street Light
* Photocell Sensor is option
* Light body: Die-casting Aluminum Alloy housing
* Mask: high transmittance, high quality tempered glass
* Meanwell driver silicone perfusion, waterproof heat stronger
* Radiator: Integration aluminum + convection design
* Power cord: bold industrial grade copper wire
*Waterproof: IP67
*Whole light luminous efficacy ≥100lm/w
* lifespan >50,000hours
*CCT2700K-6500K
* Great illuminating angle: 135*60°
* Warranty 5 years
Technical Specifications
Model | SL001-1-50 | SL001-1-60 | SL001-2-100 | SL001-2-120 | SL001-3-150 | SL001-3-180 | SL001-4-200 | SL001-4-240 | SL001-5-300 |
POWER | 50W | 60W | 100W | 120W | 150W | 180W | 200W | 240W | 300W |
DRIVER | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell |
LED CHIP | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux |
COB | 1*50W | 1*60W | 2*50W | 2*60W | 3*50W | 3*60W | 4*50W | 4*60W | 5*60W |
CASING | AluminumAlloy | AluminumAlloy | AluminumAlloy | AluminumAlloy | AluminumAlloy | AluminumAlloy | AluminumAlloy | AluminumAlloy | AluminumAlloy |
ANGLE | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° |
VOLTAGE | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC |
FREQUENCY | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
POWER | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
LIGHT LUMINOUS(LM) EPISTAROR | 4750lm/5250lm | 5700lm/6300lm | 9500lm/10500lm | 11400lm/12600lm | 14250lm/15750lm | 17100lm/18900lm | 19000lm/21000lm | 22800lm/25200lm | 28500lm/31500lm |
CORRELATED COLOR | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K |
COLOR | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
BEAN ANGLE | 135*60° | 135*60° | 135*60° | 135*60° | 135*60° | 135*60° | 135*60° | 135*60° | 135*60° |
PROTECTION | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
LIFE SPAN | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H |
WARRANTY | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
AMBIENT | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% |
AMBIENT | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C |
PCS/CARTON | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
PRODUCT | 442*340*115mm | 442*340*115mm | 564*340*115mm | 564*340*115mm | 686*340*115mm | 686*340*115mm | 808*340*115mm | 808*340*115mm | 930*340*115mm |
PACKINGSIZE | 500*392*185mm | 500*392*185mm | 630*392*185mm | 630*392*185mm | 760*392*185mm | 760*392*185mm | 875*392*185mm | 875*392*185mm | 985*392*185mm |
N.W.(kg) | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 |
G.W.(kg) | 7 | 7 | 9 | 9 | 11 | 11 | 13 | 13 | 15 |
REMARK | 1.For the LED Street light, still need Pole, PV Panel , PV mounting,SolarChargeController,SolarBatteryand Battery Box. pls inquirewhile need. | ||||||||
2.CCT: Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cold white(CW) 6000-6500K | |||||||||

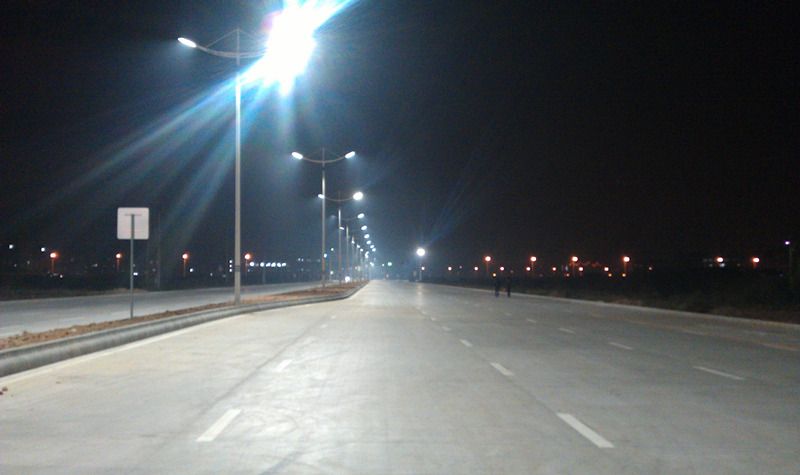

Application area
Scenic sport, Park , outdoor parking , rural roads , provincial road, state road
PRODUCT
Solar LED Street Light
SL00150W/60W/100W/120W/150W/180W/200W/240W/300W
Why Choice us?

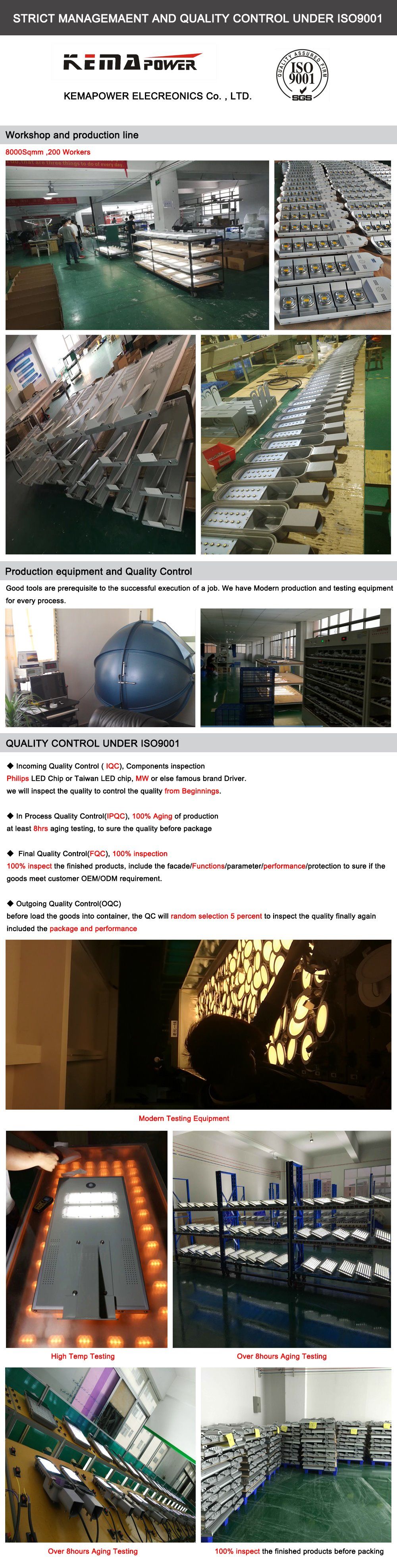

* 15 years Richexperience manufacturer, 8000 square meter,200worker.
* 15 Engineer keep to improve design and supply new products .
* 7 QC to controller the Full process,100% inspection before shipment .
* TOP 5 manufacturer,Large batch production to guarantee competitive price.
* We are the only manufacturer who can sign "Quality Warranty"&"On Time Delivery Warranty" with client.
* One of the few supplier whom have factory to make the Key Products and also supply .
* Complete set system design and installation supporting
* Support OEM/ODM service with LOW MOQ!
* 10 years experience in international bidding together with dealer
* Annually train to dealer office or in factory about design/installation and maintenance
FAQ:
1.Are you factory or trade company?
We have two Factories in China. We make UPS/Inverter/Battery in Foshan city which is close to Guangzhou. We make Solar Panel in Ningbo city .
2.How to Collect the goods together from Two Factories ?
We will collect the goods together. The shipment from Ningbo or Guangzhou.
3.How can I get your pricelist?
Send an enquiry about what you need , our sales will reply u within 12 hours.
4.Can I get an sample to check quality before mass order?
Welcome to place sample order to check our quality.
5.Any guarantee for your products?
One year or two years for electronic products and battery. 10 years for solar panel. details we will promise in the Performa Invoice .
6.How about the delivery time?
Usually for sample order within one week, for mass order 10-30days.
7.Do u support OEM/ODM service?
We have experienced R&D team, welcome to place OEM/ODM orders.
8.Payment terms, any convenient and safe way for our buyers?
T/T,W/U or LC options. Your money will be in safe, your business will be in safe!
