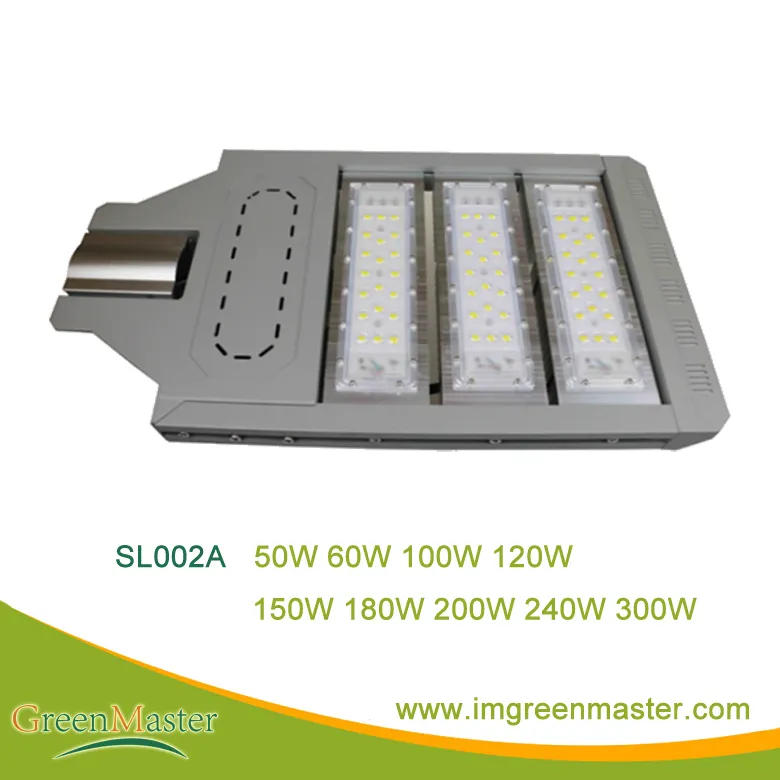

SL002A 50W 60W 100W 120W 150W 180W 200W 240W 300W LED Street Light
SL002A 50W 60W 100W 120W 150W 180W 200W 240W 300W LED Street LightKey Feature 1. High bright Adjustable Angle LED Street Light,2. SL002A series , 50W, 60W, 100W, 120W, 150W, 180W, 200W, 240W, 300W3. Input 85-265VAC 4. Light body: Die-casting Aluminum Alloy housing 5. Mask: high transmittance,high q......
Send Inquiry
Product Description
SL002A 50W 60W 100W 120W 150W 180W 200W 240W 300W LED Street Light
Key Feature
1. High bright Adjustable Angle LED Street Light,
2. SL002A series , 50W, 60W, 100W, 120W, 150W, 180W, 200W, 240W, 300W
3. Input 85-265VAC
4. Light body: Die-casting Aluminum Alloy housing
5. Mask: high transmittance,high quality tempered glass,
6. Bridgelux LED Chip
7. Meanwell driver silicone perfusion, waterproof heat stronger,
8. Radiator: Integration aluminum + convection design,
9. Power cord: bold industrial grade copper wire,
10. Waterproof: IP67
11. Whole light luminous efficacy 105lm or 150LM
12. lifespan >50,000 hours
13. CCT 2700~6500K
14. Great illuminating angle: 140*70°
15. Warranty 5 years
Technical Specifications
Key Feature
1. High bright Adjustable Angle LED Street Light,
2. SL002A series , 50W, 60W, 100W, 120W, 150W, 180W, 200W, 240W, 300W
3. Input 85-265VAC
4. Light body: Die-casting Aluminum Alloy housing
5. Mask: high transmittance,high quality tempered glass,
6. Bridgelux LED Chip
7. Meanwell driver silicone perfusion, waterproof heat stronger,
8. Radiator: Integration aluminum + convection design,
9. Power cord: bold industrial grade copper wire,
10. Waterproof: IP67
11. Whole light luminous efficacy 105lm or 150LM
12. lifespan >50,000 hours
13. CCT 2700~6500K
14. Great illuminating angle: 140*70°
15. Warranty 5 years
Technical Specifications
| Model | SL002A-1-50 | SL002A-1-60 | SL002A-2-100 | SL002A-2-120 | SL002A-3-150 | SL002A-3-180 | SL002A-4-200 | SL002A-4-240 | SL002A-5-300 |
| POWER | 50W | 60W | 100W | 120W | 150W | 180W | 200W | 240W | 300W |
| DRIVER | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell |
| LED CHIP | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux |
| COB | 1*50W | 1*60W | 2*50W | 2*60W | 3*50W | 3*60W | 4*50W | 4*60W | 5*60W |
| CASING MATERIAL | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| ANGLE REGULATION | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° | ±15° |
| VOLTAGE | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC | 85-265VAC |
| FREQUENCY | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| POWER FACTOR | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| LIGHT LUMINOUS(LM), EPISTAR OR BRIDGELUX | 5250lm/7500lm | 6300lm/9000lm | 10500lm/15000lm | 12600lm/18000lm | 15750lm/22500lm | 18900lm/27000lm | 21000lm/30000lm | 25200lm/36000lm | 31500lm/45000lm |
| CORRELATED COLOR TEMP. (CCT) | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K |
| COLOR RENDERING INDEX (CRI) | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| BEAN ANGLE | 140*70° | 140*70° | 140*70° | 140*70° | 140*70° | 140*70° | 140*70° | 140*70° | 140*70° |
| PROTECTION GRADE | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| LIFE SPAN | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H | 50000H |
| WARRANTY | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years |
| AMBIENT HUMIDITY | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% | ≤95% |
| AMBIENT TEMP. | -40°C~55°C | -40°C~55°C | -40°C~55°C | -40°C~55°C | -40°C~55°C | -40°C~55°C | -40°C~55°C | -40°C~55°C | -40°C~55°C |
| PCS/CARTON | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| PRODUCT SIZE (mm) | 406*330*95mm | 406*330*95mm | 506*330*95mm | 506*330*95mm | 606*330*95mm | 606*330*95mm | 706*330*95mm | 706*330*95mm | 806*330*95mm |
| PACKING SIZE (mm) | 470*350*140mm | 470*350*140mm | 590*350*140mm | 590*350*140mm | 710*350*140mm | 710*350*140mm | 830*350*140mm | 830*350*140mm | 950*350*140mm |
| N.W.(kg) | 5 | 5 | 6 | 6 | 10 | 10 | 11 | 11 | 13 |
| G.W.(kg) | 6 | 6 | 7 | 7 | 11 | 11 | 13 | 13 | 15 |
| REMARK | 1.For the LED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need. | ||||||||
| 2.CCT: Warm white(WW) 2700-3500K;Natural white(NW)4000-4500K;Cold white(CW) 6000-6500K | |||||||||
