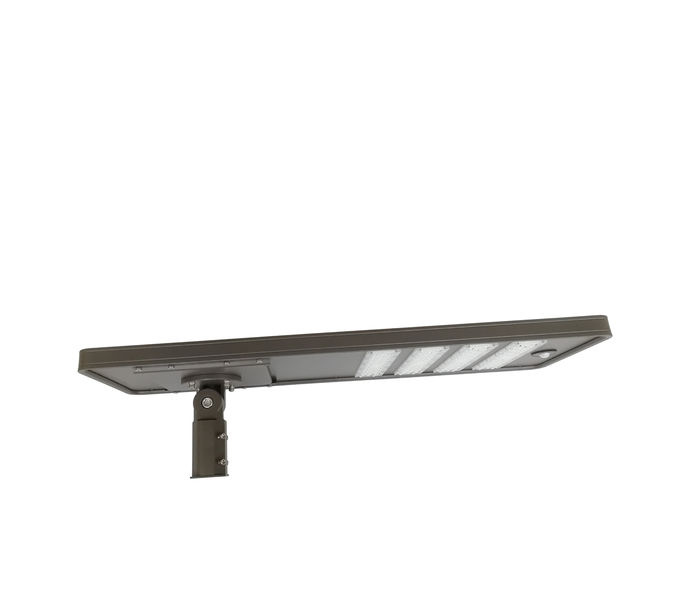

              SMD3030 LED Solar Powered Street Lights 18V 35W 8000lm
              • SMD3030 LED Solar Powered Street Lights 18V 35W 8000lmSMD3030 LED Solar Powered Street Lights 18V 35W 8000lm
              • SMD3030 LED Solar Powered Street Lights 18V 35W 8000lmSMD3030 LED Solar Powered Street Lights 18V 35W 8000lm

              SMD3030 LED Solar Powered Street Lights 18V 35W 8000lm

              Features of Outdoor LED Street light :LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency and long lifespan>50000 hoursPower Supply: Rayborn LED Street light use Meanwell driver, IP65 and high quality, it improved lights performance. Power efficiency &ge......

              Send Inquiry

              Product Description


              Features of Outdoor LED Street light :


              LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency and long lifespan>50000 hours

              Power Supply: Rayborn LED Street light use Meanwell driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.

              Color temperature: LED Street light provide a range of color temperatures from 3000, 4000,5000 and 6000 Kelvin helping to enhance a building's exterior.

              Optics: Optical assembly hermetically sealed providing IP65.
              Great light uniformity: LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

              Beam angle :90*140 degree beam angles optional .

              Housing: Fishbone style high efficiency heat sink ,elegant appearance and modular design, each module is 50W .Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
              Power box free tool to open, easy installation and maintenance .

              Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
              Warranty: 5 years warranty on the entire luminaire. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
              Certification: FCC CE RoHS approval.

              Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

              Bracket Adjustable: 11 kinds of installation brackets,east to change. Adjustable stainless steel mounting bracket allows you to direct light where you need it.

              SMD3030 LED Solar Powered Street Lights 18V 35W 8000lmSMD3030 LED Solar Powered Street Lights 18V 35W 8000lm



              Product Info

              Model#SJC-QX8K
              Lumen8000lm
              Solar panel power18V35/45/ 63W
              Li-on battery11.1V 36AH
              LEDs5050 or 3030
              LED Efficacy160Lm/W
              Dimensions(mm)1076x340x43
              NET Weight(kg)13.5kg
              Packing size(mm)1305x415x125
              Gross Weight(kg)15.5kg
              20' GP270 sets
              Solar panelMonocrystalline silicon
              Body MaterialDie-casting Alumium
              Optical DistributionType III
              Working Temp.-20ºC ~ +60ºC
              Color Temperature3000k - 4000k - 5000k - 5500k - 6000k
              Control ModePIR + Light control + Time control
              Charging time6-8 Hour (sunlight enough)
              Working time≥ 36 Hour
              Mounting height6m-9m / Pole diameter Ø60 mm
