Stage 8LEDs 8W RGBWA 5in1 Wireless Battery Remote Control LED Wall Washer Light
8leds 8W RGBWA 5in1 Wireless Battery remote control led wall washer lightPACKING LISTRGBWA 5 IN1 8Leds wireless wall washer 1 pcsUser Manual 1 pcsPower adapter 1 pcs (fixture)Wireless transmitter 1 pcsRemote controller 1pcsITEMFUNCTION1Wireless DMX system switch2Power switch3Power charging switch4Ga......
Send Inquiry
Product Description
PACKING LIST
RGBWA 5 IN1 8Leds wireless wall washer 1 pcsUser Manual 1 pcs
Power adapter 1 pcs (fixture)
Wireless transmitter 1 pcs
Remote controller 1pcs

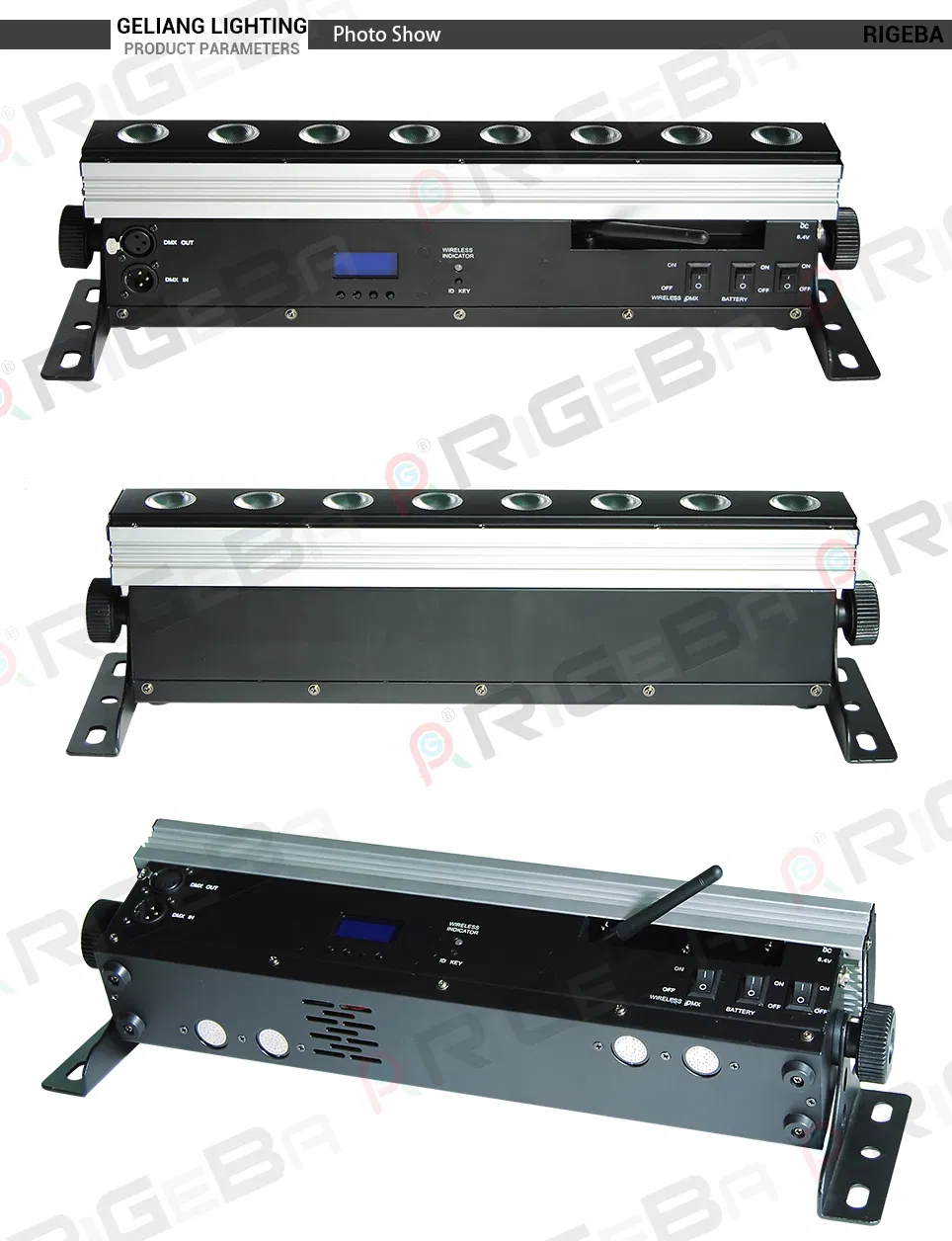

ITEM | FUNCTION |
1 | Wireless DMX system switch |
2 | Power switch |
3 | Power charging switch |
4 | Gain antenna |
5 | Wireless indicator |
6 | ID key |
7 | LCD Display |
8 | DMX output |
9 | DMX input |
10 | Knob |
11 | DC input |
12 | Fast charging terminal |
13 | Ventilation holes |
14 | Plastic machine feet |
Wireless DMX (WDMX) System
Built-in lithium-ion battery: 16Ah 12.6V High power Led 8W /pcs , RGBWA 5IN1 Four section effect control
Three control modes: Sound active mode, DMX mode, Stand-alone mode Unlimited programming effects
Professional color mixing Soft light effect Protection class IP30
LCD Digital Display
Quick and easy installation
Indoors use
TECHNICAL SPECIFICATIONS
| Main Color | White/black |
| Main Material | |
| Main body:Aluminum+iron , Plastic knobs | |
| Control Mode | |
| Stand-alone mode, DMX-512 mode, Sound active mode | |
| DMX Channels | 23 standard DMX Channels , 5 base DMX Channels |
| Gray Level | 256 level |
| LEDs | |
| High power Led 8W /pcs , RGBWA 5IN1 LED, 8Pcs | |
| Service Life | 50000 hours |
| Beam Angle | 45° |
| Protect Level | IP30 |
| Power Adapter | |
| AC100-240V 50/60HZ | |
| Output Voltage | DC12.6V 3A |
| Rated Power | ≤ 64 W |
| Built-in Lion | |
| Storage Power | 16Ah 12.6V |
| Cycle Life | 400/500 times charge and discharge cycles |
| Max Charging Voltage | 12.6V |
| Min Discharging Voltage | 8.25V |
| Charging Time | 5 h 20 m (default charger) |
| Discharge Time | ≥3 h |
| Wireless DMX transceiver | |
| Effective Distance | 400m (Unobstructed distance) |
| Fan | DC5V 0.30A 4200rpm |
| Ambient Temperature | |
| -20ºC ~ +40ºC | |
| Weights and Measures | |
| Width | 68mm , 136mm (including hanging bars) |
| Length | 432mm , 500mm (including hanging bars) |
Heigth | 119mm , 135mm (including hanging bars) |
Net Weight | 4.3kg |

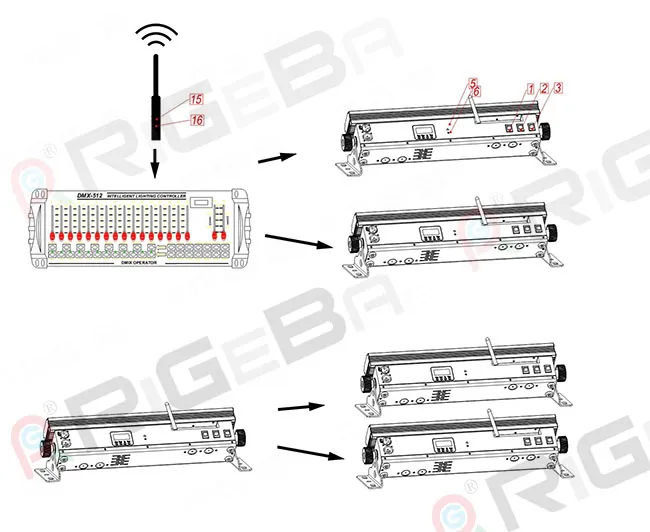

Wireless DMX (WDMX) System
This fixture is equipped with an WDMX Wireless DMX Receiver built-in.
Please follow the below step to set the WDMX Wireless DMX system:
1. Plug in the transceiver into the DMX console,and turn on the transceiver adapter and the DMX console.
2. Turn the power switch 2 and wireless DMX transceiver switches 1,.Built-in transceiver will automatically search for nearby wireless DMX signal.
3. Press the the transceiver control key 6 or 16, until the LED indicator 5 and 15 in the same color, the console will automatically establish communications with the light, and then you can operate the console to control the fixture.1. Remote control operation
Description: The different colors represent different communication ID, this setting will store in the fixture memory ,then you can use this setting next time after shutdown.When wireless control is invalid or dead, restart the console or disconnect the transceiver power

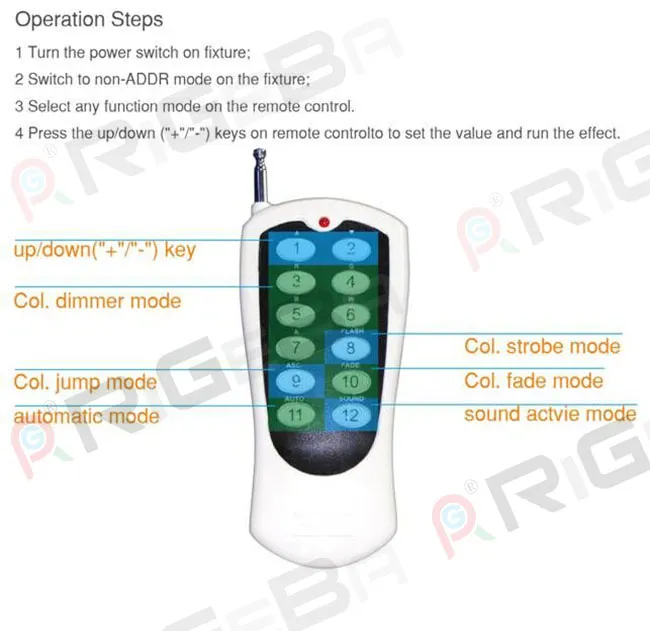

Remote control operation
DMX CHANNEL TRAITS
| 00 (DMX Mode) | CHANNEL | Value | Function | ||
| CH1=0 | CH1 | 0 | Autorun mode (open) | ||
| CH2 | 0-225 | Fifteen kind of autorun effect | |||
| 226-255 | Two kind of sound control(226-240 & 241-255) | ||||
| CH3 | 0--255 | Speed of autorun | |||
| CH1=1-128 | CH1 | 1-128 | Overall mode (open) | ||
| CH2 | 0-255 | Dimmer for all color | |||
| CH3 | 0-255 | All red dimmer | |||
| CH4 | 0-255 | All green dimmer | |||
| CH5 | 0-255 | All blue dimmer | |||
| CH6 | 0-255 | All white dimmer | |||
| CH7 | 0-255 | All amber dimmer | |||
| CH8 | 0 | Strobe off | |||
| 1-255 | Strobe effect (slow to fast) | ||||
| CH1=129-255 | CH1 | 129-255 | Four section mode (open) | ||
| CH2 | 0-255 | Total dimmer(0-100%) | |||
| CH3 | 0-255 | Red dimmer(0-100%) | first section | ||
| CH4 | 0-255 | Green dimmer(0-100%) | |||
| CH5 | 0-255 | Blue dimmer(0-100%) | |||
| CH6 | 0-255 | White dimmer(0-100%) | |||
| CH7 | 0-255 | Amber dimmer(0-100%) | |||
| CH8 | 0-255 | Red dimmer(0-100%) | second section | ||
| CH9 | 0-255 | Green dimmer(0-100%) | |||
| CH10 | 0-255 | Blue dimmer(0-100%) | |||
| CH11 | 0-255 | White dimmer(0-100%) | |||
| CH12 | 0-255 | Amber dimmer(0-100%) | |||
| CH13 | 0-255 | Red dimmer(0-100%) | third section | ||
| CH14 | 0-255 | Green dimmer(0-100%) | |||
| CH15 | 0-255 | Blue dimmer(0-100%) | |||
| CH16 | 0-255 | White dimmer(0-100%) | |||
| CH17 | 0-255 | Amber dimmer(0-100%) | |||
| CH18 | 0-255 | Red dimmer(0-100%) | fourth section | ||
| CH19 | 0-255 | Green dimmer(0-100%) | |||
| CH20 | 0-255 | Blue dimmer(0-100%) | |||
| CH21 | 0-255 | White dimmer(0-100%) | |||
| CH22 | 0-255 | Amber dimmer(0-100%) | |||
| CH23 | 0 | Strobe off | |||
| 1-255 | Strobe effect | ||||
| 01 (DMX Mode) | CH1 | 0-255 | Red dimmer(0-100%) | ||
| CH2 | 0-255 | Green dimmer(0-100%) | |||
| CH3 | 0-255 | Blue dimmer(0-100%) | |||
| CH4 | 0-255 | White dimmer(0-100%) | |||
| CH5 | 0-255 | Amber dimmer(0-100%) | |||
